Quick Details
-
Voltage:
-
110V/220V
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
56*52*69CM
-
Weight (KG):
-
1000
-
Name:
-
Small powder coating plant
-
Application:
-
Powder Coating Work
-
Spraying Guns:
-
Electrostatic
-
Heating system:
-
Electric
-
Recovery:
-
Filters
Quick Details
-
Machine Type:
-
Powder Coating Equipment, Coating Equipment
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
COLO
-
Voltage:
-
110V/220V
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
56*52*69CM
-
Weight (KG):
-
1000
-
Name:
-
Small powder coating plant
-
Application:
-
Powder Coating Work
-
Spraying Guns:
-
Electrostatic
-
Heating system:
-
Electric
-
Recovery:
-
Filters
Product Description

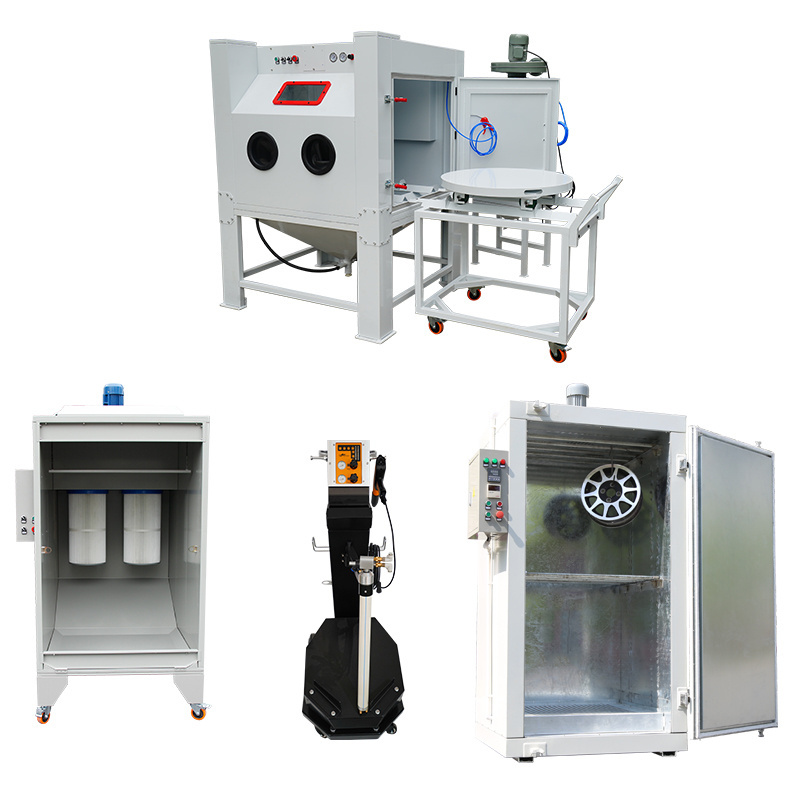

Metal Wheels Electrostatic Powder Coating System
Detailed Pictures
COLO-1212FTA Turntable Sandblasting Cabinet
Applies to the Pretreatment of coating to strengthen the adhesive force of coated surface, to remove scratches, old paint, rust, oxide layers, etc.
Specially designed with a 360 degree rotating turntable, suits for easy operation of heavy objects with less efforts, such as
alloy wheels, molds, statues, motors, etc. As well as equip with a cart for easy loading and unloading.
|
Model
|
KF-1212FTA
|
|
Overall Dimension
|
Length1620*Width1250*Height2000mm
|
|
Work Chamber
|
Length1200*Width1200 x Height800mm
|
|
Turntable
|
Diameter 800mm (Maximum Load 200kgs)
|
|
Door Size
|
W750xH780
|
|
Power Supply
|
110V/220V/380V/410V450V(50-60Hz)
|
|
Motor Power
|
0.75kw
|
|
Blasting Gun
|
1 pc, with boron carbide nozzles
|
|
Blasting Gloves
|
A pair of rubber gloves
|
COLO-191S Powder Coating Machine
Designed for easy operation and excellent finish, it is an extremely advanced model that meets all of your powder coating needs, such as overcomes faraday cage effect, painting complex shapes, while saves powders a lot.
It comes with an intelligent controller, including user-friendly one-touch operation buttons, which is convenient to change the shape for coating, and save your owm application programs.
It comes with an intelligent controller, including user-friendly one-touch operation buttons, which is convenient to change the shape for coating, and save your owm application programs.
|
Model
|
KF-K1 Electrostatic Powder Coating Machine
|
|
Power range
|
220V/110V
|
|
Frequency
|
50HZ/60HZ
|
|
Temperature range in use
|
-10 ℃+50 ℃
|
|
Powder Gun Data
|
Gun weight: 500G
Rated output voltage 24VDC Maximum output current 180Ua(max) Maximum output voltage 0-100KV ( adjustable) Maximum powder injection : 600g/min Polarity negative (-) |
|
Pheumatic Data
|
Maximum input-air pressure 10kg/cm
Optimum input-air pressure 6kg/cm Minimum input-air pressure 4kg/cm Maximum water vapor content or compressedair 1.4g/N m3 Maximum oil vapor content of compressed air 0.1ppm Maximum compressed-air consumption 13.2 m3/h |
COLO-1115 Powder Coating Booth
Provides a clean processing condition, ideal for small batch powder coating jobs,
such as car wheels/rims, bike and motorcycle parts.
Built with 2 pcs of cartridge filters for powder recovery. Automatic p ulse-jetting filter cleaning prevents powder accumulation and extends filter life.
Built with 2 pcs of cartridge filters for powder recovery. Automatic p ulse-jetting filter cleaning prevents powder accumulation and extends filter life.
|
Model
|
COLO-S-1115
|
|
Operating Dimensions
|
Width1000 * Depth1000 * Heght1500mm
|
|
Overall dimensions
|
Width1200 * Depth1500 * Heght2000mm
|
|
Weight
|
480kg
|
|
Power Supply
|
220V/380V, 3Phase, 50-60HZ
|
|
Fan Power
|
1.5kw
|
|
Filter Count
|
2 pcs, Quick-release Type
|
|
Filter Cleaning
|
Pneumatic
|
COLO-1688 Electric powder coating oven
It is specially designed for small or medium metal parts, such as bike or motorcycle accessories.
Use electricity to create energy, the oven provides uniform hot air distribution by circulation fan resulting in quality cured
finishes and optimum cure cycles which reduces rework, saving you time.
Use electricity to create energy, the oven provides uniform hot air distribution by circulation fan resulting in quality cured
finishes and optimum cure cycles which reduces rework, saving you time.
Designed with shelves rails per shelf, there's plenty of space for hanging coated workparts.
|
Worksize dimension:
|
Width1000*Height1600*Depth845mm
|
|
Power supply
|
Electric/ 6kw（1.5kw Heating Tube x 4pcs）
|
|
Voltage/Frequency
|
110V/220v(50-60hz)
|
|
Warm-up time
|
15-30 min. (180° C)
|
|
Temperature stability
|
< ± 3-5°C
|
|
Temperature
|
Max. 250° C
|
|
Ventilation performance
|
805-1677m3/h
|
|
Fan Power
|
0.55kw
|
|
Circulation/ Air flow
|
Vertical, Variable through holes on the walls
|
Recommend Products
We supply powder coating plant for different scale productions, also can customize powder coating equipment for special needs.
