Quick Details
-
Size:
-
215/260/330mm
-
Weight (KG):
-
1 kg
-
Application:
-
Water treatment
-
Color:
-
Black + white
-
MOQ:
-
100 pieces
-
Service area:
-
0.25-0.55m2/piece
-
Average void space when working(um ):
-
80-100
-

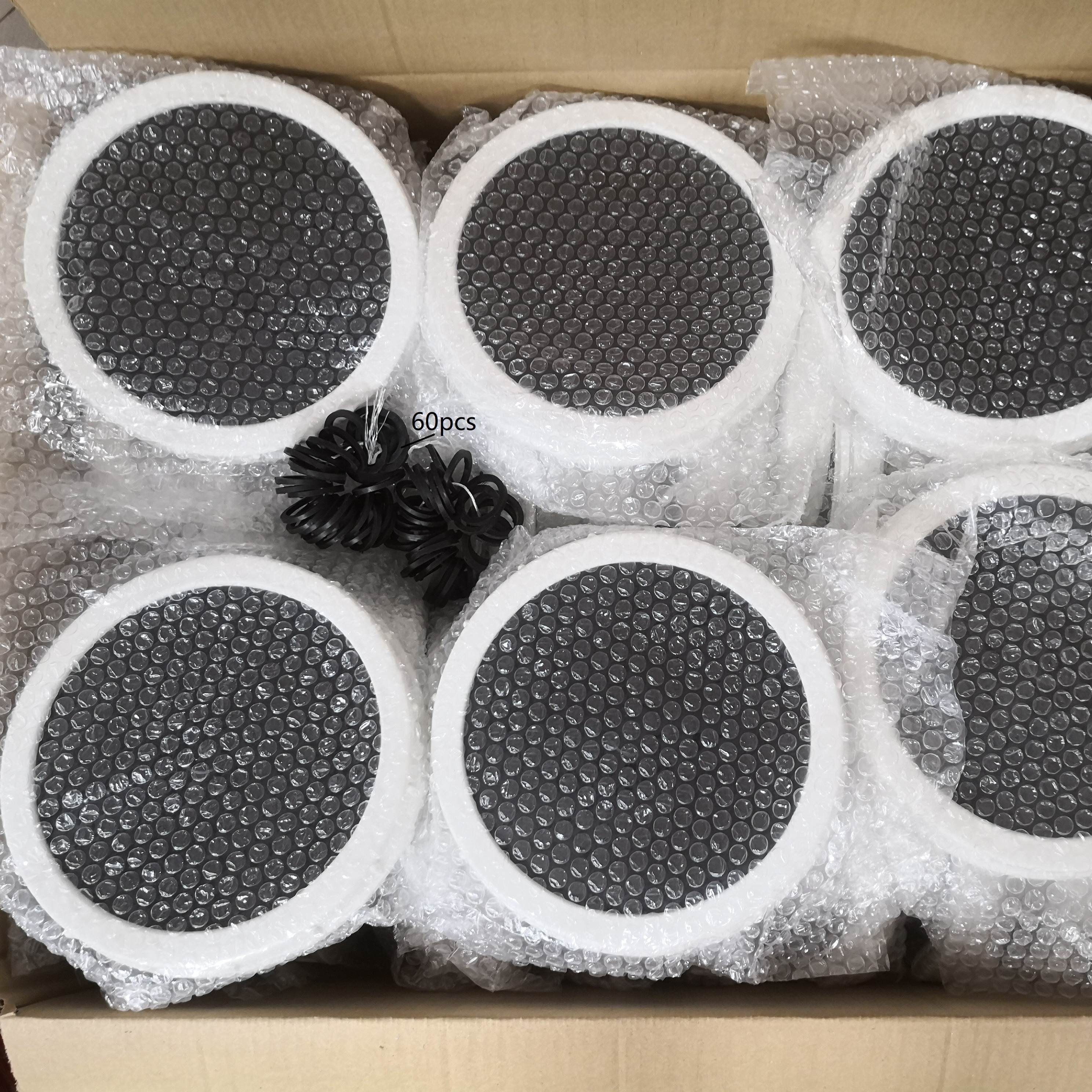

Package:
-
master carton
-
Aeration Resistance:
-
180-280mmH2O
-
Name:
-
HUISEN 8" 9" Micro Disc Aerator 215mm Fine Bubble Diffuser
Quick Details
-
Core Components:
-
EPDM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUISEN
-
Size:
-
215/260/330mm
-
Weight (KG):
-
1 kg
-
Application:
-
Water treatment
-
Color:
-
Black + white
-
MOQ:
-
100 pieces
-
Service area:
-
0.25-0.55m2/piece
-
Average void space when working(um ):
-
80-100
-
Package:
-
master carton
-
Aeration Resistance:
-
180-280mmH2O
-
Name:
-
HUISEN 8" 9" Micro Disc Aerator 215mm Fine Bubble Diffuser
EPDM plate type membrane disc fine bubble diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on / air-off applications.
Plate type air diffusers for sewage water treatment has small aeration bubble diameter and gas liquid interface diameter, large gas-liquid boundary area, uniform bubble diffusion, which ensure no hole blockage and strong corrosion resistance. It is especially suitable for urban sewage and large factory expansion and old aeration tank transformation, and the aeration tank can run intermittently.
1.
Diaphragm
is
fully imported material (EPDM)
(rubber membrane +ABS);
2. Low resistance diaphragm, easily open;
3. Large service area, s mooth sludge easily removal;
4. The aeration membrane has enough ductility;
5. Mechanical assembly, peripheral sealing performance is good;
6. Strong whole strength and long service life;
7. High oxygen transfer efficiency, l ow energy cost.
|
Model |
HSCD200 |
HSCD260 |
HSCD300 |
HSPD215 |
HSPD260 |
HSPD300 |
HSPD330 |
|
Bubble Type |
Crown Type |
Plate Type |
|||||
|
Pic. |
|
|
|||||
|
Size |
8 inch |
10 inch |
12 inch |
8 inch |
10 inch |
12 inch |
13 inch |
|
MOC |
EPDM membrane |
EPDM/ Corundum |
EPDM membrane |
||||
|
|
ABS carrier plate |
||||||
|
Connector |
3/4"NPT male thread |
||||||
|
Bubble Size |
1-2mm |
||||||
|
Flow Range(m³/h) |
1-6 |
1-8 |
1-12 |
1-6 |
1-8 |
1-12 |
1-15 |
|
Design Flow(m³/h) |
1.5-3 |
3-5 |
5-6 |
1.5-2.5 |
3-4 |
5-6 |
7-8 |
|
STOE |
≥38%(6m submerged) |
||||||
|
STOR(kg O 2/ h) |
≥0.31 |
≥0.42 |
≥0.75 |
≥0.31 |
≥0.42 |
≥0.75 |
≥0.90 |
|
SAE |
≥8.9kg O 2/ kw.h |
||||||
|
Headloss |
2000-4500pa |
||||||
|
Service Aera(m 2 ) |
0.3-0.654 |
0.4-0.8 |
0.5-1.2 |
0.2-0.64 |
0.25-1.0 |
0.4-1.5 |
0.5-1.75 |
|
Service Life |
>5 years |
||||||
