Quick Details
-
Spindle Taper:
-
MT2
-
Range of Spindle Speed(r.p.m):
-
100 - 3000 r.p.m
-
Place of Origin:
-
ANH
-
Brand Name:
-
CTMACH
-
Model Number:
-
18X
-
Table Travel (mm):
-
500*140mm
-
Year:
-
2022
-
Spindle Motor Power(kW):
-
0.75
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
600*480*830mm
-
Weight (KG):
-
65
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Table Travel (X) (mm):
-
360
-
Table Travel (Y) (mm):
-
140
-
Table Travel (Z) (mm):
-
210
-
Spindle Taper:
-
MT2
-
Range of Spindle Speed(r.p.m):
-
100 - 3000 r.p.m
-
Place of Origin:
-
ANH
-
Brand Name:
-
CTMACH
-
Model Number:
-
18X
-
Table Travel (mm):
-
500*140mm
-
Year:
-
2022
-
Spindle Motor Power(kW):
-
0.75
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
600*480*830mm
-
Weight (KG):
-
65
-
Marketing Type:
-
Hot Product 2021
SIMILAR PRODUCTS

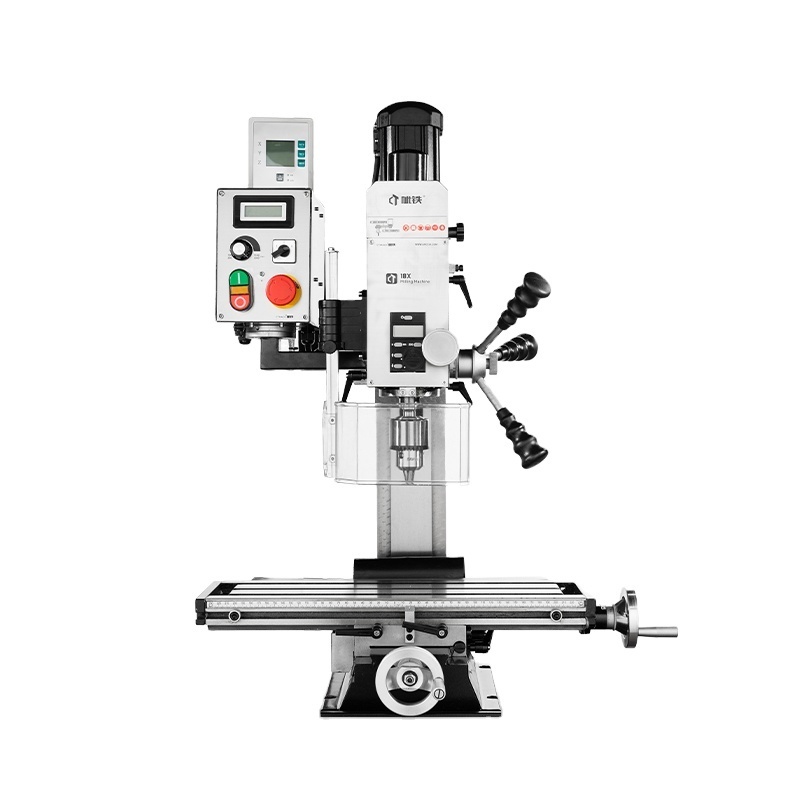

18X
Milling Machine
* Belt drive, poly vee, very quiet operation
* Brushless motor
* Two step pulley ensures maximum torque in low speed setting
* Infinitely variable speeds from 100 - 3000 rpm
* Head tilts plus or minus 90°
* Dovetail column ensures positive head location
* Head elevates on two dovetail slideways
* Precision spindle supported on taper roller bearings
* Adjustable gibs to all slideways
* Rack and pinion drill feed
* Locks to head, column and slideways
* Fine feed
* Digital depth gauge with metric/imperial calibrations
* Illuminated digital rev counter
* Brushless motor
* Two step pulley ensures maximum torque in low speed setting
* Infinitely variable speeds from 100 - 3000 rpm
* Head tilts plus or minus 90°
* Dovetail column ensures positive head location
* Head elevates on two dovetail slideways
* Precision spindle supported on taper roller bearings
* Adjustable gibs to all slideways
* Rack and pinion drill feed
* Locks to head, column and slideways
* Fine feed
* Digital depth gauge with metric/imperial calibrations
* Illuminated digital rev counter
PRODUCT SPECIFICATIONS
|
Max. Drilling Diamter
|
|
20mm
|
|
|
|||
|
Max. Face Milling Capacity
|
|
50mm
|
|
|
|||
|
Max. Vertical Milling Capacity
|
|
16mm
|
|
|
|||
|
Worktable Size
|
|
500*140mm
|
|
|
|||
|
T-slots Size
|
|
10mm
|
|
|
|||
|
X-Axis Travel
|
|
360mm
|
|
|
|||
|
Y-Axis Travel
|
|
140mm
|
|
|
|||
|
Z-Axis Travel
|
|
210mm
|
|
|
|||
|
Spindle Taper
|
|
MT2
|
|
|
|||
|
Spindle Travel
|
|
50mm
|
|
|
|||
|
Distance From Spindle Axis to Column Guide Rail
|
|
170mm
|
|
|
|||
|
Distance From Spindle to Table
|
|
280mm
|
|
|
|||
|
Spindle Incline Angle
|
|
±90°
|
|
|
|||
|
Spindle Speed (Variable Speed)
|
|
100-3000rpm
|
|
|
|||
|
Motor Power
|
|
750w
|
|
|
|||
|
N.W.
|
|
65kg
|
|
|
|||
|
Overall Dimensions
|
|
600*480*830mm
|
|
|
|||
FEATURES AT A GLANCE
Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
