Type: Heavy Duty Clamp
Size: 17 to 252 mm，also can customization
Band Width: 18mm, 20mm, 22mm, 24mm, 26mm
Band Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.7mm
Material: Galvanized Steel, SS201, 304, 316
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TOPSUN
-
Model Number:
-
TP-RC1
-
Product name:
-
Single bolt hose clamp
-
Usage:
-
Pipe Clamp,cars,electric wire or any where you need
-
Structure:
-
Saddle Clamp,steel,
-
Keyword:
-
clamp,hose clamp,click,
-
Main Parts:
-
Shell,Bridge Plate,Bolts,Nuts and Washers,Lift-bars and Receiver-lugs
-
Surface treatment:
-
Acid pickling and passivation
-
Feature:
-
quick and easy installation
Quick Details
-
Measurement system:
-
INCH, Metric
-
Material:
-
Stainless steel, carbon steel
-
Place of Origin:
-
China(mainland)
-
Brand Name:
-
TOPSUN
-
Model Number:
-
TP-RC1
-
Product name:
-
Single bolt hose clamp
-
Usage:
-
Pipe Clamp,cars,electric wire or any where you need
-
Structure:
-
Saddle Clamp,steel,
-
Keyword:
-
clamp,hose clamp,click,
-
Main Parts:
-
Shell,Bridge Plate,Bolts,Nuts and Washers,Lift-bars and Receiver-lugs
-
Surface treatment:
-
Acid pickling and passivation
-
Feature:
-
quick and easy installation
Products Description

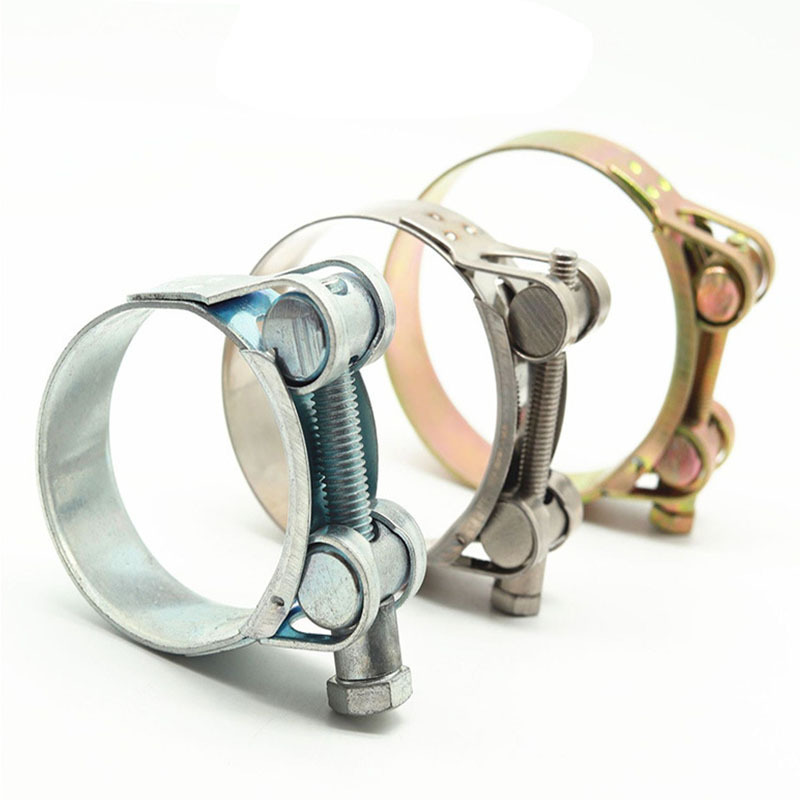

Single Bolt Hose Clamp
The clamps are suitable for holding soft hose onto rigid circular pipe as well as spigot of what you need diameter.
Type: Heavy Duty Clamp
Size: 17 to 252 mm，also can customization
Band Width: 18mm, 20mm, 22mm, 24mm, 26mm
Band Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.7mm
Material: Galvanized Steel, SS201, 304, 316
Type: Heavy Duty Clamp
Size: 17 to 252 mm，also can customization
Band Width: 18mm, 20mm, 22mm, 24mm, 26mm
Band Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.7mm
Material: Galvanized Steel, SS201, 304, 316
|
SIZE(mm)
|
Carbon Steel/Galannize
|
SS201/SS304
|
Bolt/mm
|
|
|
Bandwidth*Thickness(mm)
|
Bandwidth*Thickness(mm)
|
|
|
17 - 19
|
0.6*18
|
0.6*18
|
M5*40
|
|
20 - 22
|
|
|
|
|
23 - 25
|
|
|
|
|
26 - 28
|
|
|
|
|
29 - 31
|
0.8*20
|
0.6*20
|
M6*50
|
|
32 - 35
|
|
|
|
|
36 - 39
|
|
|
|
|
40 - 43
|
|
|
|
|
44 - 47
|
1.2*22
|
0.8*22
|
M8*75
|
|
48 - 51
|
|
|
|
|
52 - 55
|
|
|
|
|
56 - 59
|
|
|
|
|
60 - 63
|
|
|
|
|
64 - 67
|
|
|
|
|
68 - 73
|
1.5*24
|
0.8*24
|
M8*80
|
|
74 - 79
|
|
|
|
|
80 - 85
|
|
|
|
|
86 - 91
|
|
|
|
|
92 - 97
|
|
|
|
|
98 - 103
|
|
|
|
|
104 - 112
|
|
|
|
|
113 - 121
|
|
|
|
|
122 - 130
|
|
|
|
|
131 - 139
|
1.7*26
|
1.0*26
|
M10*100
|
|
140 - 148
|
|
|
|
|
149 - 161
|
|
|
|
|
162 - 174
|
|
|
|
|
175 - 187
|
|
|
|
|
188 - 200
|
|
|
|
|
201 - 213
|
|
|
|
|
214 - 226
|
|
|
|
|
227 - 239
|
|
|
|
|
240 - 252
|
|
|
|
