Quick Details
-
Weight:
-
Depends on the capacity of boiler
-
Outer packing:
-
customized
-
Product name:
-
Oil Steam Boiler
-
Design fuel:
-
OIL GAS
-
Keywords:
-
Automatic Efficient
-
Application:
-
Industrial Production
-
Application Field:
-
Building Materials
-
Steam temperature:
-
175-204
-
Steam Capacity:
-
1-20 T/h
-
Material:
-
Special Boiler Steel Plate
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field main
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhongde
-
Dimension(L*W*H):
-
Depends on the capacity of boiler
-
Weight:
-
Depends on the capacity of boiler
-
Outer packing:
-
customized
-
Product name:
-
Oil Steam Boiler
-
Design fuel:
-
OIL GAS
-
Keywords:
-
Automatic Efficient
-
Application:
-
Industrial Production
-
Application Field:
-
Building Materials
-
Steam temperature:
-
175-204
-
Steam Capacity:
-
1-20 T/h
-
Material:
-
Special Boiler Steel Plate
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field main
-
Marketing Type:
-
New Product 2020

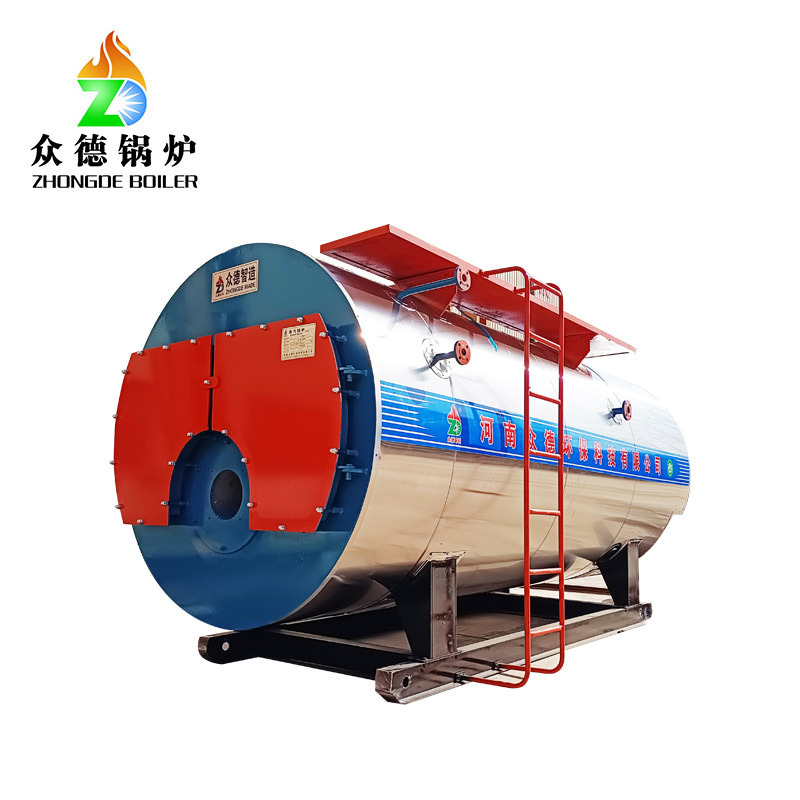

WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patentedthread pipe technology,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.The lock protection function protects the equipment running safely.Applicable fuel:natural gas, diesel,heavy fuel oil, lpg,lng,cng,biogas,etc;
Product Details
Product specification
|
Model
|
WNS0.5
|
WNS1
|
WNS2
|
WNS3
|
WNS4
|
WNS5
|
|
Rated evaporation(t/h)
|
0.5
|
1
|
2
|
3
|
4
|
5
|
|
Rated working pressure(MPa)
|
1
|
1.25
|
1.25
|
1.25
|
1.25
|
1.25
|
|
Rated steam temperature(℃)
|
184
|
194
|
194
|
194
|
194
|
194
|
|
Boiler weight(kg)
|
2860
|
4820
|
7650
|
8600
|
9600
|
10200
|
|
Width(mm)
|
1760
|
1950
|
2230
|
2300
|
2350
|
2500
|
|
Length(mm)
|
2230
|
2920
|
3460
|
4076
|
4600
|
5000
|
|
Height(mm)
|
2120
|
2000
|
2380
|
2500
|
2800
|
2900
|
|
Model
|
WNS6
|
WNS8
|
WNS10
|
WNS12
|
WNS15
|
WNS20
|
|
Rated evaporation(t/h)
|
6
|
8
|
10
|
12
|
15
|
20
|
|
Rated working pressure(MPa)
|
1.25
|
1.25
|
1.25
|
1.25
|
1.25
|
1.25
|
|
Rated steam temperature(℃)
|
194
|
194
|
194
|
194
|
194
|
194
|
|
Boiler weight(kg)
|
13200
|
16800
|
19500
|
22000
|
26800
|
35000
|
|
Width(mm)
|
2600
|
2700
|
2780
|
3240
|
3300
|
3640
|
|
Length(mm)
|
5200
|
5840
|
6130
|
6600
|
6900
|
7960
|
|
Height(mm)
|
3000
|
3125
|
3280
|
3300
|
3670
|
3960
|
Boiler Accessories
Boiler case
Packing and shipping
Selling Units:Single item
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity
Package Type:customized
Our survice
Pre-sale service:
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
