Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HITOP
-
Product Name:
-
Monorail BMU system
-
Material:
-
Aluminum Alloy 6061/t6
-
Application:
-
Ceiling Mounted
-
Surface treatment:
-
Anodized or powde painted
-
Function:
-
Facade cleaning or maintenance
-
After-sales Service Provided:
-
Training
-
Advantage:
-
Low cost than roof track BMU
-
Control Method:
-
Relay control with easy operation
-
Weight of monorail:
-
6.9kg/m
-
Model:
-
L70
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
10000
-
Warranty of core components:
-
10 years
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HITOP
-
Product Name:
-
Monorail BMU system
-
Material:
-
Aluminum Alloy 6061/t6
-
Application:
-
Ceiling Mounted
-
Surface treatment:
-
Anodized or powde painted
-
Function:
-
Facade cleaning or maintenance
-
After-sales Service Provided:
-
Training
-
Advantage:
-
Low cost than roof track BMU
-
Control Method:
-
Relay control with easy operation
-
Weight of monorail:
-
6.9kg/m
-
Model:
-
L70
Products Description
Product Paramenters
Main Features of
L70 Monorail

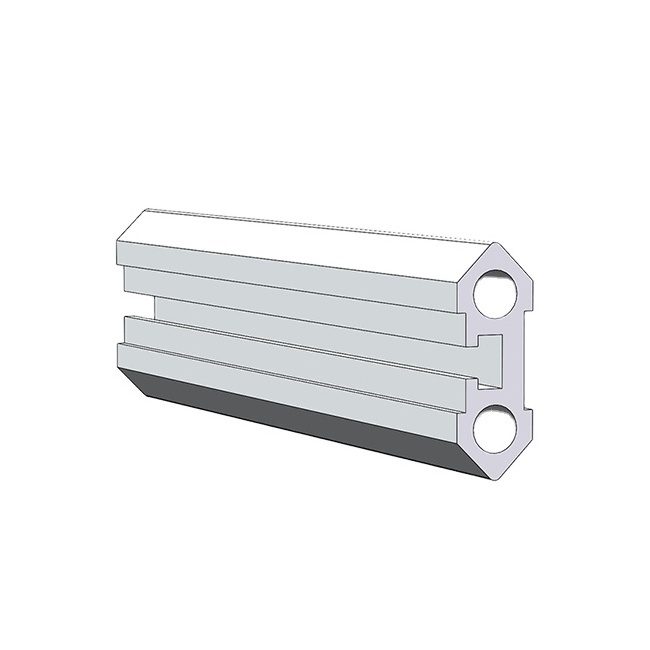

Monorail systems is by far considered as the most cost-effective and efficient window cleaning system in terms of purchase and running cost and having very minimal operation process.The monorail BMU is combined with self power cradle. Monorail is an extruded aluminum element fixed outside of the building supported by steel brackets anchored to the concrete wall at intervals ranging from 1.0m to 2.5m, and used as a track way for trolleys from which the cradle will be suspended, it allows the cradle to traverse along the façade, these trolleys can be either manual or motorized depending on the application and project budget.
The simplicity of the system is the monorail can be bended to follow the contour of the building, it can be either ceiling
mounted(C70) or face mounted(L70), the cradle can be configured to various sizes, and multiple cradle or glass lifting winches can be operated.
The simplicity of the system is the monorail can be bended to follow the contour of the building, it can be either ceiling
mounted(C70) or face mounted(L70), the cradle can be configured to various sizes, and multiple cradle or glass lifting winches can be operated.
L70 Monorail BMU System is the ideal facade maintenance system for buildings with limited roof space. It can be installed with minimal visual impact respecting the architectural aesthetic. It consists of aluminum tracks in combination with the trolley and self power cradle. L70 monorail tracks is the preferred option, When we are looking for a complete integration in the building design. It side mounted and can be Installed outside of the parapet wall, and it is ideal for climbing applications. It can be used also in gantries.
|
DDPG600LX Motorized Climbing Trolley
|
|
DDPG600LS Motorized Tolley
|
|
SDPG600LR Manual Trolley
(Chain Driven) |
|
|
RATED LOAD
|
600KG
|
RATED LOAD
|
600KG
|
RATED LOAD
|
600KG
|
|
TRAVEL SPEED
|
3M Per Minute
|
TRAVEL SPEED
|
6M Per Minute
|
TRAVEL SPEED
|
3M Per Minute
|
|
MATERIAL
|
CARBON STEEL
HOT DIP GALVANIZED |
MATERIAL
|
CARBON STEEL
HOT DIP GALVANIZED |
MATERIAL
|
CARBON STEEL HOT DIP GALVANIZED
|
|
MIN. RAIL RADIUS
|
800MM
|
MIN. RAIL RADIUS
|
500MM
|
MIN. RAIL RADIUS
|
800MM
|
|
Climbing Angle
|
500kg @ 90 degree
600kg @ 75 degree |
|
|
|
|
