Quick Details
-
Model Number:
-
Cr20Ni80, Cr15Ni60, Cr20Ni30
-
Shape:
-
wire, ribbon, strip
-
Material:
-
fine raw material, fine raw material
-
wires:
-
0.018mm-10.0mm
-
Ribbon:
-
0.05*0.2-2.0*6.0mm
-
Strip:
-
0.5*5.0mm-5.0*250mm
-
Condition:
-
Bright, Annealed, Soft
-
Surface Treatment:
-
hydrogen annealing
-
Resistance tolerance:
-
±3%
-
Feature:
-
high nickel, high resistance
-
Certificate:
-
ISO 9001 RoHS
-
OEM:
-
Accept
Quick Details
-
Application:
-
furnace, oven, stove
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NK
-
Model Number:
-
Cr20Ni80, Cr15Ni60, Cr20Ni30
-
Shape:
-
wire, ribbon, strip
-
Material:
-
fine raw material, fine raw material
-
wires:
-
0.018mm-10.0mm
-
Ribbon:
-
0.05*0.2-2.0*6.0mm
-
Strip:
-
0.5*5.0mm-5.0*250mm
-
Condition:
-
Bright, Annealed, Soft
-
Surface Treatment:
-
hydrogen annealing
-
Resistance tolerance:
-
±3%
-
Feature:
-
high nickel, high resistance
-
Certificate:
-
ISO 9001 RoHS
-
OEM:
-
Accept

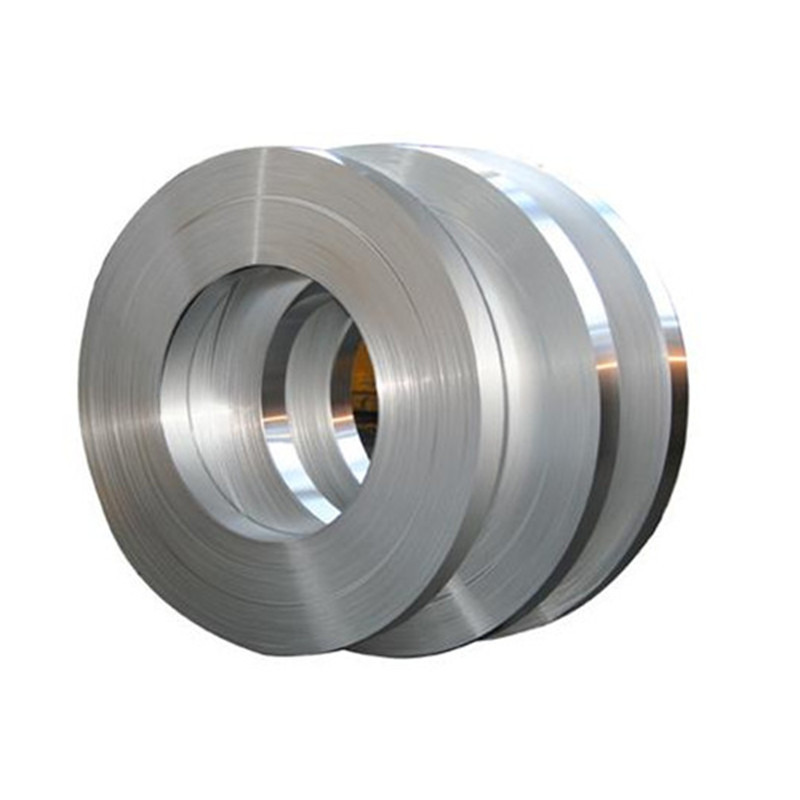

cr20ni80 strip
Shape: wire, ribbon, strip
Stable resistance
Spool from flange to flange
Long life s
ervice
Electric heating resistance nickel chrome alloy cr20ni80 strip heating element Ni-Gr alloy ribbon ni80cr20 for sealing machine
A Resistance Alloy used in electrical heating application. It is recommended for use in dry air applications up to
2150 degrees Fwith good hot strength. It is an alloy of nickel and chromium with high electrical resistance; used
for resista nce heating elements.
Product forms available are:
Our Nichrome alloy are in the form of
wire, ribbon, strip, coil
.
- Round wire
- Ribbon (flat wire)
- Strip / foil
- Stranded wire
- Sheet / plate
Deliveried conditions are:
- Bright annealed
- Oxidized
- Pickled
- Enameled
Cr20Ni80
NiCr 80/20 also called Chromel A, Cr20Ni80, N8, Nichrome V, HAI - NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650, NCHW1
Nichrome Grade : Ni70Cr30,Ni80Cr20, Ni60Cr15, Ni35Cr20, Ni30Cr20
Standard: GB/T1234-95
Product forms: wire,bar,strip,forging,sheet,etc.
Description:
Cr20Ni80 is a nickel-chromium alloy (NiCr alloy) for use at temperatures up to 1200°C (2190°F). The alloy is characterized by high resistivity, good oxidation resistance and very good form stability. It has good ductility after use and excellent weldability.
Cr20Ni80 is used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Other materials we can provide as below:
Nickel chrome alloys:
Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, pure nickel Ni200 and Ni201
FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2 , 0Cr21Al6Nb, 0Cr21Al6.
Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni
Nickel iron: 4J29(Kover), Invar 36, FeNi42, 79Ni4MoFe, 80Ni5MoFe, 1J50 (Ni50)
Thermocouple wire: Type K, N, E, J, T, S, R, B
Nichrome wire size are:
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
Application of nichrome alloy wire
:
A Resistance Alloy used in electrical heating application. It is recommended for use in dry air applications up to 2150 degrees F with good hot strength. It is an alloy of nickel and chromium with high electrical resistance; used for resistance heating elements. Nichrome 80/20 is an ideal material, because it has relatively high resistance and forms an adherent layer of chromium oxide when it is heated for the first time. Material beneath the wire will not oxidize, preventing the wire from breaking or burning out.
Applications:
- These elements are commonly found in precision heating applications such as Medical Diagnostics, Satellite, and Aerospace
- Electrical appliance industry
- Ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements, cartridge elements
Composition and Main Properties of Nichrome
|
Alloy Nomenclature Performance |
Ni80Cr20 |
Ni70Cr30 |
Ni60Cr15 |
Ni35Cr20 |
Ni30Cr20 |
|
|
Main composition |
Nick. |
Rest |
Rest |
55.0-61.0 |
34.0-37.0 |
30.0-34.0 |
|
Chr. |
20.0-23.0 |
28.0-31.0 |
15.0-18.0 |
18.0-21.0 |
18.0-21.0 |
|
|
Fer. |
≤1.0 |
≤1.0 |
Rest |
Rest |
Rest |
|
|
Max. continuous service temp. of element(ºC) |
1200 |
1250 |
1150 |
1100 |
1100 |
|
|
Resistivity at 20ºC (μΩ·m) |
1.09 |
1.18 |
1.12 |
1.0 |
1.04 |
|
|
Density(g/cm3) |
8.40 |
8.10 |
8.20 |
7.90 |
7.90 |
|
|
Thermal conductivity (KJ/m·h·ºC) |
60.3 |
45.2 |
45.2 |
43.8 |
43.8 |
|
|
Coefficient of lines expansion(α×10-6/ºC) |
18.0 |
17.0 |
17.0 |
19.0 |
19.0 |
|
|
Melting point approx.( ºC) |
1400 |
1380 |
1390 |
1390 |
1390 |
|
|
Elongation at rupture(%) |
>20 |
>20 |
>20 |
>20 |
>20 |
|
|
Micrographic structure |
austenite |
austenite |
austenite |
austenite |
austenite |
|
|
Magnetic properties |
nonmagnetic |
nonmagnetic |
Weak magnetic |
Weak magnetic |
Weak magnetic |
|
