Quick Details
-
Hose Inner Diameter:
-
80 mm
-
Air Consumption:
-
5~6m3/min,7~8m3/min,9~10m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yongsi
-
Voltage:
-
220V/380V/400V/415V/440V/660V 50Hz/60Hz
-
Power:
-
3kw, 5.5kw, 7.5kw
-
Dimension(L*W*H):
-
1.13*1.02*0.54
-
Weight:
-
540 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Application:
-
Tunnel Building
-
Output:
-
9m3/h
-
Operating Air Pressure:
-
8Mpa
-
Function:
-
Shoctcrete Concrete
-
Driving Type:
-
Electric/Diesel
-
Max.Aggregate Size:
-
20mm
-
Max. Horizontal Distance:
-
200m
-
Way of Driven:
-
Air compressor
-
Applicable materials:
-
Wet Concrete/Dry Concrete
Quick Details
-
Marketing Type:
-
New Product 2021
-
Max. Conveying Distance:
-
200m
-
Max Aggregate Size:
-
20
-
Hose Inner Diameter:
-
80 mm
-
Air Consumption:
-
5~6m3/min,7~8m3/min,9~10m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yongsi
-
Voltage:
-
220V/380V/400V/415V/440V/660V 50Hz/60Hz
-
Power:
-
3kw, 5.5kw, 7.5kw
-
Dimension(L*W*H):
-
1.13*1.02*0.54
-
Weight:
-
540 kg
-
Product name:
-
Concrete Shotcrete Machine
-
Application:
-
Tunnel Building
-
Output:
-
9m3/h
-
Operating Air Pressure:
-
8Mpa
-
Function:
-
Shoctcrete Concrete
-
Driving Type:
-
Electric/Diesel
-
Max.Aggregate Size:
-
20mm
-
Max. Horizontal Distance:
-
200m
-
Way of Driven:
-
Air compressor
-
Applicable materials:
-
Wet Concrete/Dry Concrete

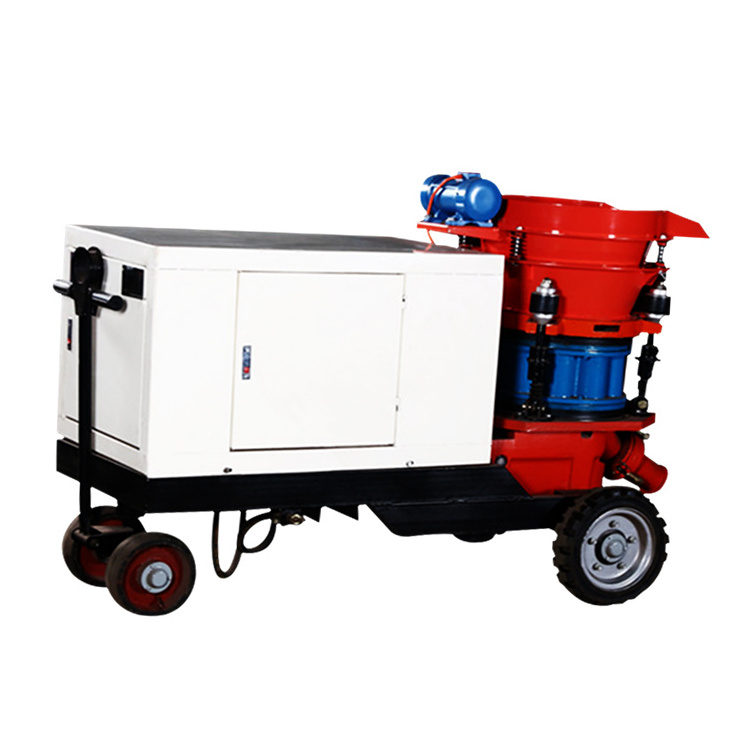

Shotcrete Machine Introduction
We have engineering oriented shotcrete machine and mine oriented shotcrete machine, wet or dry shotcrete machine.
Shotcrete Machine Difference
Wet shotcrete machine can spray dry material or wet material. Dry shotcrete machine can only spray dry material. Wet shotcrete machine has a set of pumping system (accelerator conveying system) more than dry shotcrete machine, with a small motor of 0.75 kw. It is suitable for tunnel, high-speed railway and highway.
Mine shotcrete machine uses concrete pump to convey concrete through pipeline to the nozzle of manipulator, and uses compressed air with accelerator to spray concrete to the wall of shotcrete roadway. It is widely used in various working environments, such as tunnels, culverts, subway, hydropower projects, underground projects, slope protection and high methane mine roadways
Dry Shotcrete machine Technical Parameters
| Model | YS-PZ3 | YS-PZ6 | YS-PZ7 |
| Product capacity | 3m³/h | 3m³/h | 3m³/h |
| Maximum delivery distance | 200m | 200m | 200m |
| Practical material water-cement ratio | <0.4 | <0.4 | <0.4 |
| Biggest bone grain size of fire | 20mm | 20mm | 20mm |
| Rotor block | 350mm | 440mm | 480mm |
| Working pressure | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa |
| Blast consumption | 3-4m³/h | 6-8m³/h | 7-8m³/h |
| Motor power | 3kw | 5.5kw | 7.5kw |
| Dimension(mm) | 1040*550*950 | 1300*705*1300 | 1600*750*1200 |
| Weight(kg) | 260 | 600 | 700 |
Wet Shotcrete machine Technical Parameters
| Model | YS-W5 | YS-W7 |
| Product capacity | 5m³/h | 7m³/h |
| Lift | Horizontal 30m, vertical 20m | Horizontal 30m, vertical 20m |
| Maximum particle diameter | 15mm | 15mm |
| Motor power | 5.5kw | 7.5kw |
| Weight(kg) | 700 | 800 |
| Dimension(mm) | 1280*700*1280 | 2000*800*1300 |
