Quick Details
-
Application:
-
construction ,individual ,factory
-
Span:
-
67.6m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jiaqing
-
Weight (KG):
-
12000 kg
-
Full crane size:
-
10500*2360*3340
-
wheelbase:
-
4200mm
-
engine model:
-
Weichai (Electronic Injection Intercooling Boost)
-
gearbox model:
-
Fast 8-speed transmission
-
tire:
-
900-R20
-
brake system:
-
Air brake (ABS)
-
Steering mechanism:
-
Hydraulic directional assistance
-
Main lifting mechanism:
-
12 ton winch
-
Auxiliary lifting mechanism:
-
12 ton winch
-
Type of boom structure:
-
8 meters * 5 knots (inner rope)
Quick Details
-
Rated Loading Capacity:
-
12 ton
-
Max. Lifting Height:
-
33m
-
Engine Brand:
-
WEICHAI
-
Application:
-
construction ,individual ,factory
-
Span:
-
67.6m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jiaqing
-
Weight (KG):
-
12000 kg
-
Full crane size:
-
10500*2360*3340
-
wheelbase:
-
4200mm
-
engine model:
-
Weichai (Electronic Injection Intercooling Boost)
-
gearbox model:
-
Fast 8-speed transmission
-
tire:
-
900-R20
-
brake system:
-
Air brake (ABS)
-
Steering mechanism:
-
Hydraulic directional assistance
-
Main lifting mechanism:
-
12 ton winch
-
Auxiliary lifting mechanism:
-
12 ton winch
-
Type of boom structure:
-
8 meters * 5 knots (inner rope)
Product description
What advantages can we bring to you:
(1)Jiaqing factory has advanced research and development means, perfect development materials, reasonable engineering and assembly tools, smooth product assembly lines, perfect quality assurance system and the highest performance cost in the world.
(2): For consumers, our products are affordable and have a long service life. The product model can meet your needs and support customization
(3): For suppliers, we provide you with sufficient profit margins. We provide you with testing to ensure the quality of the product before leaving the factory. At the same time, we support customized colors and product brands
Product Paramenters
|

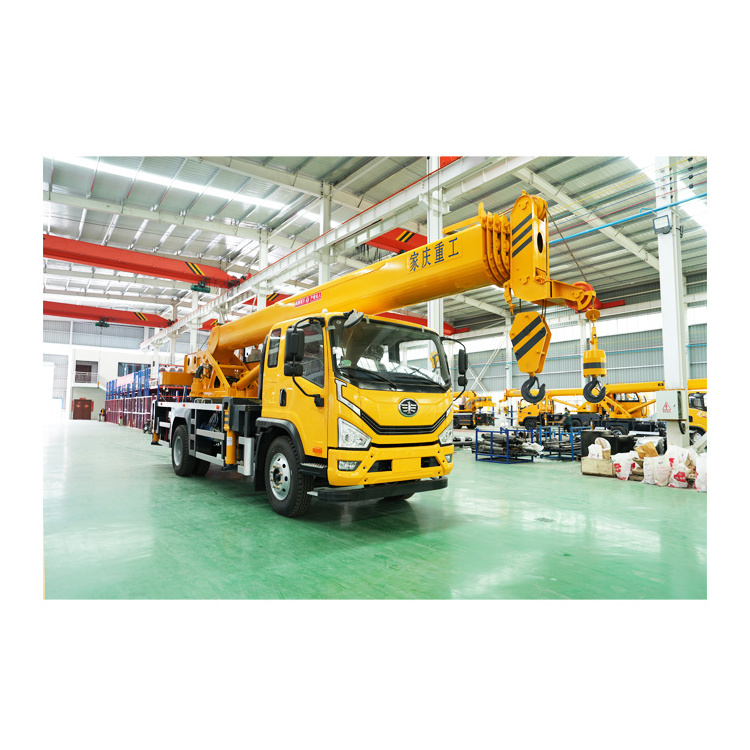

12 ton FAW Jiefang (National VI) Configuration Table
|
|
|
|
|||
|
brand
|
JQCM
|
Rotary mechanism
|
Secondary planetary steering
|
|||
|
Chassis Model
|
FAW Jiefang
|
Outrigger
|
5 fully hydraulic outriggers
|
|||
|
Full crane size
|
10500*2360*3340
|
Outrigger span (transverse)
|
6760mm
|
|||
|
wheelbase
|
4200mm
|
Outrigger span (longitudinal)
|
5200mm
|
|||
|
Maximum rated lifting capacity
|
14000KG
|
Protective devices
|
two-way hydraulic lock
|
|||
|
maximum lifting height
|
36M
|
Work lights
|
two
|
|||
|
engine model
|
Weichai (Electronic Injection Intercooling Boost)
|
hydraulic pump
|
dual pump
|
|||
|
gearbox model
|
Fast 8-speed transmission
|
Dual use of oil and electricity
|
15KW-6 pole copper core motor
|
|||
|
tire
|
900-R20
|
Rotation radius
|
2.65m
|
|||
|
brake system
|
Air brake (ABS)
|
Frame size
|
400mm*200mm
|
|||
|
Steering mechanism
|
Hydraulic directional assistance
|
top of posterior displacement
|
standard configuration
|
|||
|
Main lifting mechanism
|
12 ton winch
|
Lifting operation mode
|
Pushrod operation
|
|||
|
Auxiliary lifting mechanism
|
12 ton winch
|
Rod output form
|
Synchronous scaling
|
|||
|
Type of boom structure
|
8 meters * 5 knots (inner rope)
|
Slewing bearing
|
1.3 meter turntable
|
|||
|
motor power
|
118KW (160 horsepower)
|
Outrigger extension length
|
2.2 meters
|
|||
|
Total length of lifting arm
|
40 meters
|
The distance of the crane arm lying far away
|
22 meters (1 ton)
|
|||
|
Product features: The crane is equipped with high and low speeds; Get off the car with original air conditioning and original driving recorder; PTO power assist output system, which can stabilize the fixed engine speed and maintain constant pressure and flow rate of various lifting hydraulic systems; Fast 8-speed gearbox with high first gear ratio and strong overall power performance; The hydraulic system of the entire vehicle is newly designed, which is easy to operate, high in work efficiency,
smooth in action composite performance, stable and reliable, and flexible and comfortable. |
|
|
|
|||
