Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
Sino Galvo
-
Weight (KG):
-
80 KG
-
Core Components:
-
Laser source/galvanometer/field lens/ez cad
-
Product name:
-

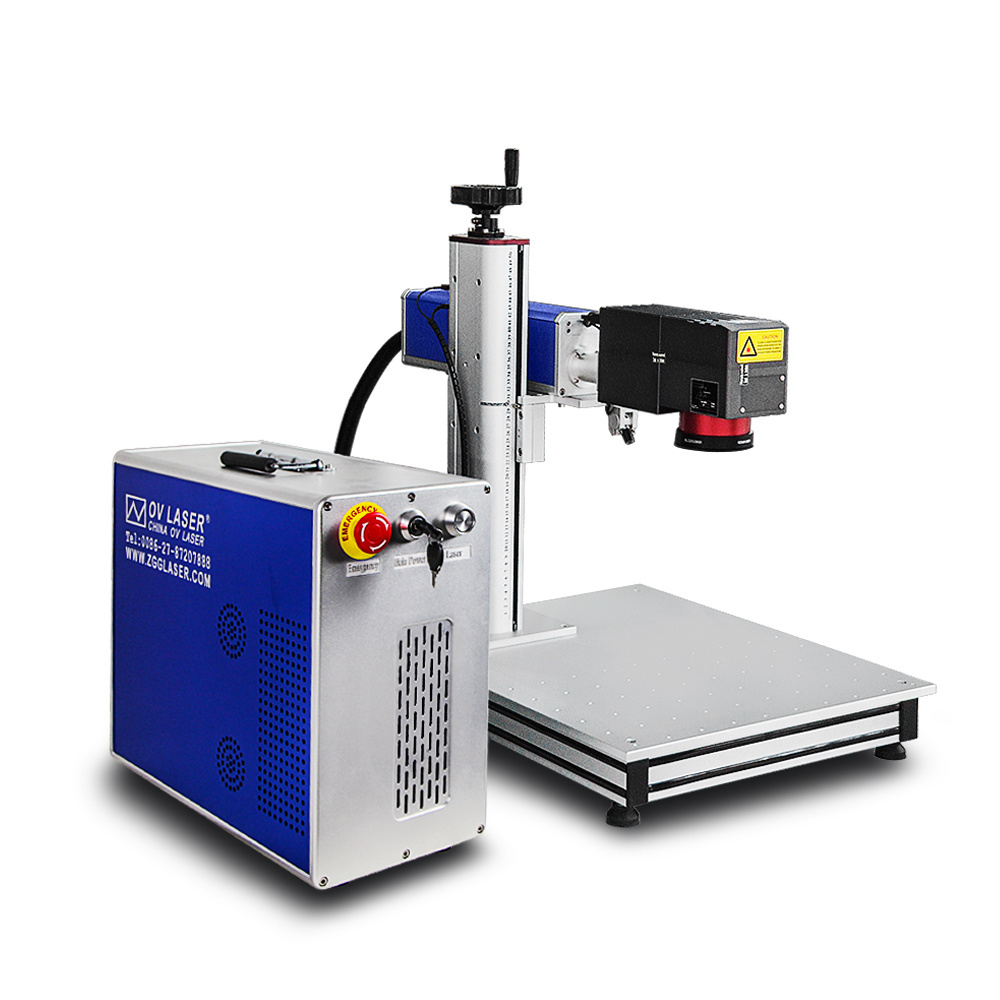

100W fiber laser marking machine
-
marking software:
-
EZCAD 2.14 software
-
Operation System:
-
Win XP / 7 / 8 / 10 (32 bit , 64bit)
-
Laser source:
-
JPT
-
Marking material:
-
all metals : gold ,silver,copper,stainless steel,brass,etc
-
Marking area:
-
70*70mm-300*300mm
-
Rotary marking for ring:
-
Support , need a rotary device
-
jewelry deep engraving:
-
YES
-
metal sheet cutting:
-
YES , max 1.5mm thickness
-
Other items to mark:
-
metal pen ,keys ,Cup ,medal,knife, auto parts,etc
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ CAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
Sino Galvo
-
Weight (KG):
-
80 KG
-
Core Components:
-
Laser source/galvanometer/field lens/ez cad
-
Product name:
-
100W fiber laser marking machine
-
marking software:
-
EZCAD 2.14 software
-
Operation System:
-
Win XP / 7 / 8 / 10 (32 bit , 64bit)
-
Laser source:
-
JPT
-
Marking material:
-
all metals : gold ,silver,copper,stainless steel,brass,etc
-
Marking area:
-
70*70mm-300*300mm
-
Rotary marking for ring:
-
Support , need a rotary device
-
jewelry deep engraving:
-
YES
-
metal sheet cutting:
-
YES , max 1.5mm thickness
-
Other items to mark:
-
metal pen ,keys ,Cup ,medal,knife, auto parts,etc
JPT YDFLP 60 80W 100 watts mopa m7 2.5d 3d fiber laser marking machines EZCAD3 Motorize Z axis
Kindly click the right button "Contact Supplier " for move videos and discount prices .
Mobile/ WhatsApp / WebChat: +8613707152583
E-mail: sales1(at)86ovlaser.com
Skype: +8613707152583
Fiber laser marking machine can mark on all metal , such as Gold Silver Brass Stainless Steel Jewelry, Aluminium, Carbon Steel, Iron etc.
Especially 50w 60w 80w and100w machine can be used to cut gold silver and brass by repeat marking, very popular now.
Technical Parameters
| Product Name | JPT YDFLP 60 80W 100 watts mopa m7 2.5d 3d fiber laser marking machines EZCAD3 Motorize Z axis | Cooling Mode | Air Cooling |
| Model | OV SF-100, SF-120 | Marking Speed | 7000mm/s |
| Laser Source | JPT | Mininum Line Width | 0.015mm |
| Power | 100W | Mininum Character | 0.2mm |
| Laser Wavelength | 1064nm | Pulse Frequence | 30 KHz - 60 KHz |
| Filed Lens Brans | Singapore wavelength | Operation Environment | 5℃~45℃ , clean or dust-free / dustless |
| Marking Area | 110*110mm to 300*300mm(Customized) | Power Supply | AC220V +10% / 50HZ or 60HZ |
| Control Card | JCZ Brand EZCAD 2.14.11 | Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) |
100W laser with motorized Z axis
100W Laser with camera
100W Laser with 800mm moving X table
100W laser with moving XY table
100W Laser With 3D galvo head
100W laser With big protective box
100W Laser With ring rotary , plate fixture
Fiber laser machine can mark engrave on all metals , it's widely used in custom jewelry business , to engrave on Gold / Silver / Platinum / Titanum / Stainless steel , etc .
24K Gold 1.2mm deep cut samples
Silver cut 1.2mm deep samples
More jewelry engraved and cut samples
Ring engraved samples
Fiber laser marking machine can deep engrave on different metals up to 1-1.5mm .
We supply different rotary for different objects , like jewelry rotary , pen rotary , cup rotary , and D80mm D100mm Rotary for cylinder objects , etc .
You can choose the rotary on your needs , or tell us your needs then we recommend the most suitable rotary for you .
Jewelry rotary marking sample
Cups rotary marking
Pen rotary marking
D80mm Rotary for metal cylinder objects
The newest 2.5D machine is composed by the motorized Z axis and EZCAD 3.0 software, mainly used for coin relief engraving, metal mould deep engraving, metal sheet engraving and cutting etc, but cheaper than the 3D machine.
2.5D laser for jewelry & coin relief engraving, necklace cutting etc
Lastest 3D galvo dynamic focusing laser machine for curved surface marking
