ChunHua LD mobile industry travelling single girder overhead bridge crane with CD electric hoist Single Girder Overhead Crane

ChunHua LD mobile industry travelling single girder overhead bridge crane with CD electric hoist Single Girder Overhead Crane

FOB Reference Price: Get Latest Price

≥1 Sets

US $2900

≥3 Sets

US $2890

≥12 Sets

US $2790

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Span:: 7.5m-22.5m

Place of Origin:: Anhui, China

Brand Name:: ChunHua

Weight (KG):: 3000 kg

Crane type:: Single Girder Overhead Bridge Crane

Working Class:: A3-A5

Lifting Speed:: 0.8-8 m/min

Model of electric hoist:: MD/CD

Width of Trail:: 37-70

Lifting mechanism:: Electric Hoist

Power:: 2x0.8 kw

Girder Type:: Single Girder

Whatsapp:: +86 18001952802

Quick Details

Max. Lifting Height:: 30m

Marketing Type:: Hot Product 2023

Max. Lifting Load:: 20 tons

Span:: 7.5m-22.5m

Place of Origin:: Anhui, China

Brand Name:: ChunHua

Weight (KG):: 3000 kg

Crane type:: Single Girder Overhead Bridge Crane

Working Class:: A3-A5

Lifting Speed:: 0.8-8 m/min

Model of electric hoist:: MD/CD

Width of Trail:: 37-70

Lifting mechanism:: Electric Hoist

Power:: 2x0.8 kw

Girder Type:: Single Girder

Whatsapp:: +86 18001952802

Products Description

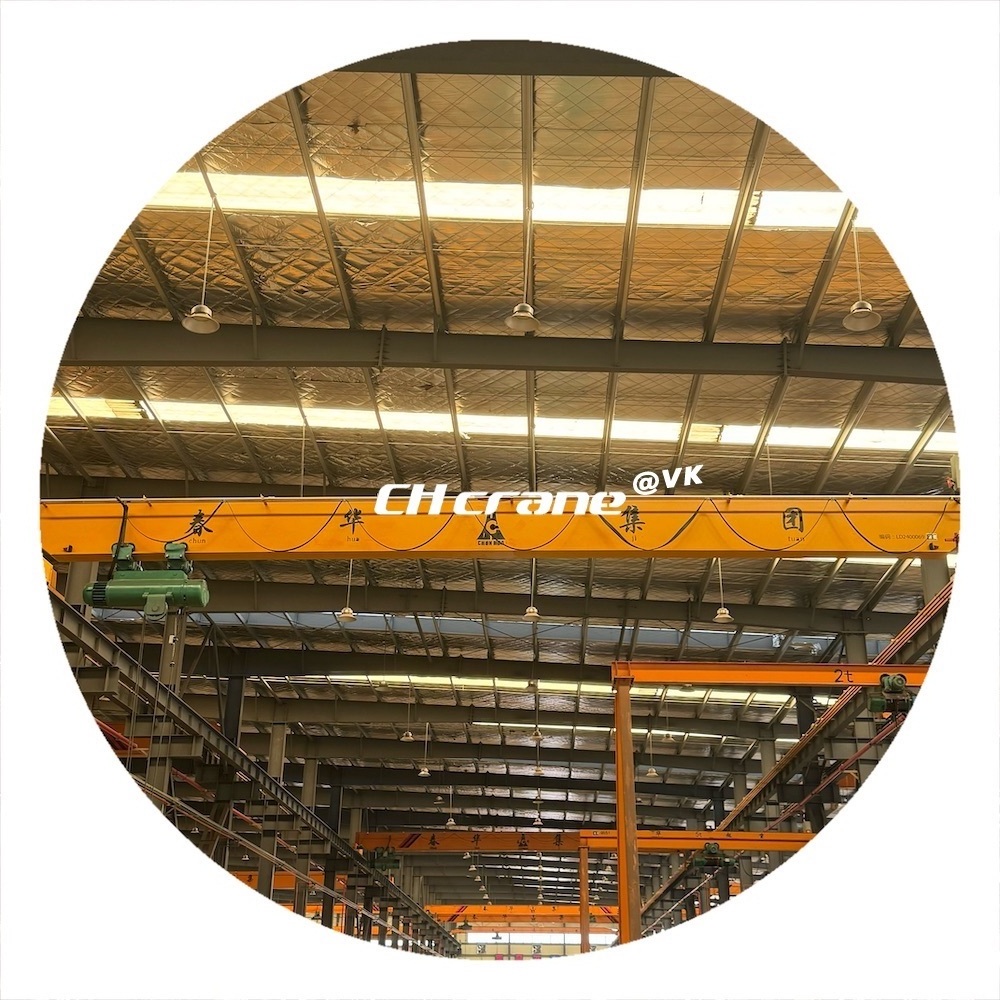

Single Beam Motor Overhead Crane

LD Type has the characteristics of reasonable structure and strong rigidity. The whole machine is used together with CD type and MD type electric hoist. It is a light and small lifting machinery. This product is widely used in factories, warehouses, stockyards and other places to lift goods. It is prohibited to be used in flammable, explosive and corrosive media environments. The control room has two types: open type and closed type. It can be divided into two types: left or right installation according to the actual situation. There are two entrance directions: side and end, to meet the user's choice under various needs.

-Specification

1. Rated load: 1-10 tons

2. Span: 7.5-22.5 m or customized

3. Working temperature: -25 °C-40 °C

4. Working class: A3-A5

-Features

1. Light structure, easy installation and maintenance
2. Reasonable structure, strong bearing capacity
3. Low noise, soft starting and stopping
4. Safe and reliable operation
5. Low cost maintenance, long working life

Main Girder

1. With strong box type and standard camber

2. There will have reinforcement plate inside the main girder

End Beam

1. The end carriage is composed of wheels and traveling mechanism(motor, reducer and brake) to realize the crane traveling

2. Connected with the main girder by bolts and nuts for easy transportation and installation

CD/MD Type Electric Hoist

1. Can be CD (single lifting speed) or MD (dual lifting speed) model 2. Realize lifting and cross travel functions

Remote Control

1. Flexible and efficient performance

2. Strong and reliable
3. Secure and dependable communications

Specifications

Description	Specification
Crane Type	Single Beam Crane
Working Class	A3-A5
Lifting Speed	0.8-8 m/min
Model of electric hoist	MD/CD
Width of Trail	37-70
Lifting Mechanism	Electric Hoist
Warranty	12 Months
Girder Type	Single Girder
Color	Can be customized

Optional Attachments

Hydraulic Crane Safety Brake

Steel Plate and Steel Coil Spreaders

Grab

Applications

What is the main use of single girder overhead crane?

A single-girder bridge crane is a light and small material handling equipment that runs on rails. Used in conjunction with single-speed wire rope hoist (CD), double-speed wire rope hoist (MD) and other electric hoists. Main places of use: material handling in different occasions such as machinery production workshops, factories, warehouses, and material yards. If you are engaged in a special industry, please write down your industry in the message. We also provide beam cranes that can operate in special flammable, explosive, and corrosive environments. (need to be equipped with special material handling equipment, explosion-proof double-girder bridge crane, explosion-proof single-girder bridge crane). Our engineers will customize a bridge crane that meets your industry standards.
