Quick Details
-
Model Number:
-
RSTM261-J
-
motor rated:
-
34Kw
-
motor peak:
-
68Kw
-
rated torque:
-
110Nm
-
peak torque:
-
270Nm
-
rated speed:
-
3000Rpm
-
peak speed:
-
6000Rpm
-
rated current:
-
110A
-
peak current:
-
320A
Quick Details
-
AC Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Goevnow
-
Model Number:
-
RSTM261-J
-
motor rated:
-
34Kw
-
motor peak:
-
68Kw
-
rated torque:
-
110Nm
-
peak torque:
-
270Nm
-
rated speed:
-
3000Rpm
-
peak speed:
-
6000Rpm
-
rated current:
-
110A
-
peak current:
-
320A
Products Description
Commercial Series

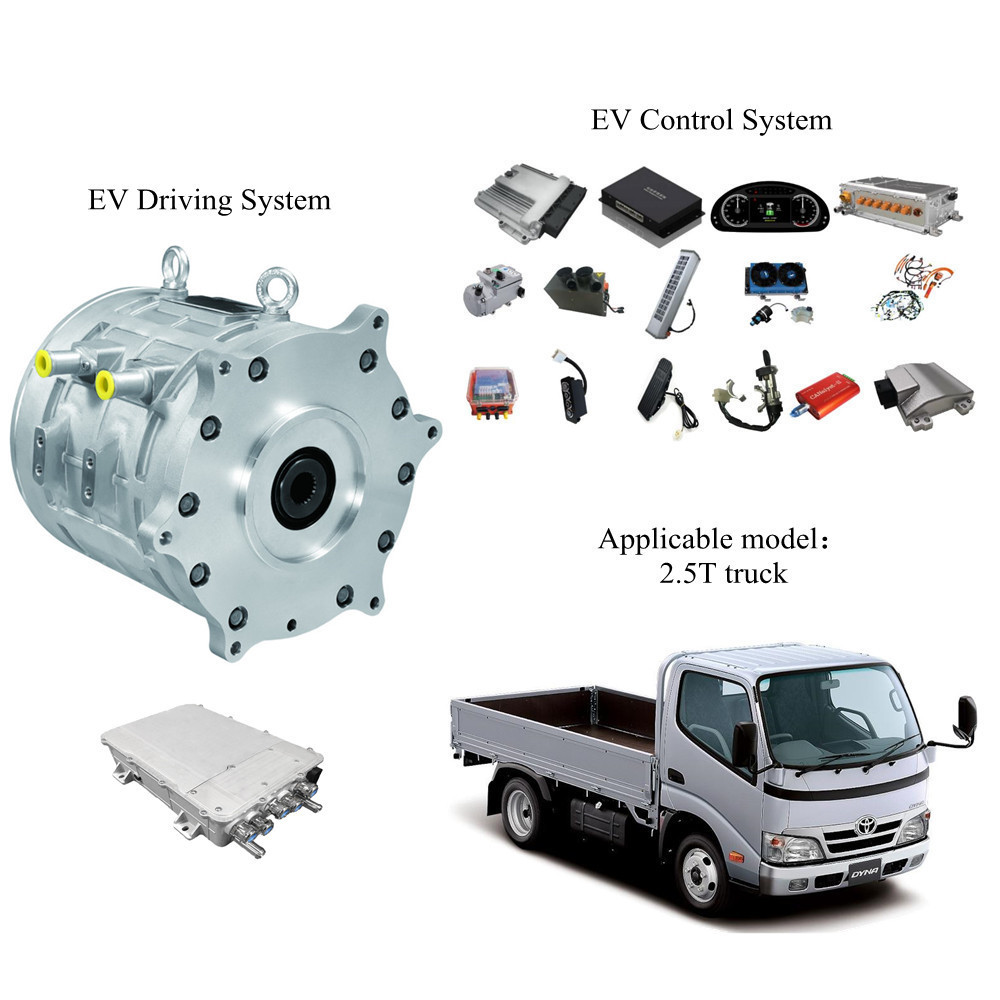

EV Driving System & EV Control System
Goevnow EV conversion kit for 2.5T Truck RSTM261-J Electric Vehicle AC Motor complete kit Electric Car Conversion Kit
RSTM series, voltage 380V, low power, about 25kw-90kw, suitable for 2.5-4.5 ton light trucks, if you want to keep the original
gearbox for your car/boat/ship, you can consider RSTM2 series first.
Rawsuns EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems, Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering machineries
.
|
motor type
|
PMSM
|
|
IP Grade
|
67
|
|
motor weight
|
50kg
|
|
motor peak
|
68Kw
|
|
peak torque
|
270Nm
|
|
peak speed
|
6000Rpm
|
EV Conversion Kits Supporting Documents and Service
Drive System
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report.
9. Remote installation support.
10. Wiring diagram
11. Installation training.
12. On site installation guide service (optional)
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report.
9. Remote installation support.
10. Wiring diagram
11. Installation training.
12. On site installation guide service (optional)
Vehicle Control System
1. Vehicle performance simulation
2. Component Data sheets
3. Component installation drawings
4. Component 3D step files
5. CANbus protocols for all components
6. VCU control strategies
7. VCU high level software for vehicle parameter configuration
8. CANbus Analyze Software
9. System Fault codes table
10. System Electrical schematic diagram
11. System CANbus topological diagram 12. Wiring diagram
13. Dashboard logic functions table
14. System bench testing report.
15. System testing video
16. System operation manual
17. Remote installation support.
18. Installation training.
19. On site installation guide service (optional)
1. Vehicle performance simulation
2. Component Data sheets
3. Component installation drawings
4. Component 3D step files
5. CANbus protocols for all components
6. VCU control strategies
7. VCU high level software for vehicle parameter configuration
8. CANbus Analyze Software
9. System Fault codes table
10. System Electrical schematic diagram
11. System CANbus topological diagram 12. Wiring diagram
13. Dashboard logic functions table
14. System bench testing report.
15. System testing video
16. System operation manual
17. Remote installation support.
18. Installation training.
19. On site installation guide service (optional)
|
Model
|
Application
|
IP Grade
|
Battery Rated Voltage(VDC)
|
Peak Power(Kw)
|
Peak Torque (Nm)
|
Peak Speed (rpm)
|
|
RSTM260-J
|
2T Truck
|
67
|
380
|
50
|
180
|
6000
|
|
RSTM261-J
|
2.5T Truck
|
67
|
380
|
68
|
270
|
6000
|
|
RSTM262-J
|
4.5T Truck / 6M AMT Bus
|
67
|
380
|
90
|
350
|
6000
|
|
RSTM262D1
|
5T Truck
|
67
|
380
|
80
|
380
|
6000
|
|
RSTM262D1-H
|
5T Truck
|
67
|
540
|
80
|
380
|
6000
|
|
RSTM423
|
8M AMT Bus
|
67
|
540
|
120
|
600
|
4500
|
|
RSTM424
|
8M AMT Bus
|
67
|
380
|
120
|
600
|
4500
|
|
RSTM424A
|
10 AMT Bus
|
67
|
540
|
130
|
500
|
4500
|
|
RSTM420
|
6.6-7M Direct-drive Bus/ 7.5T Truck
|
67
|
540
|
150
|
1000
|
4500
|
|
RSTM421
|
6M Direct-drive
|
67
|
380
|
120
|
800
|
4500
|
|
RSTM422
|
10-12M AMT Bus
|
67
|
540
|
150
|
1000
|
4500
|
|
RSTM430
|
8M Direct-drive Bus
|
67
|
540
|
140
|
1700
|
3000
|
|
RSTM460A-2500
|
10.5M,12M Direct -drive
|
67
|
576
|
200
|
2500
|
2700
|
|
RSTM460A-2800
|
12M Direct -drive
|
67
|
576
|
200
|
2800
|
2700
|
