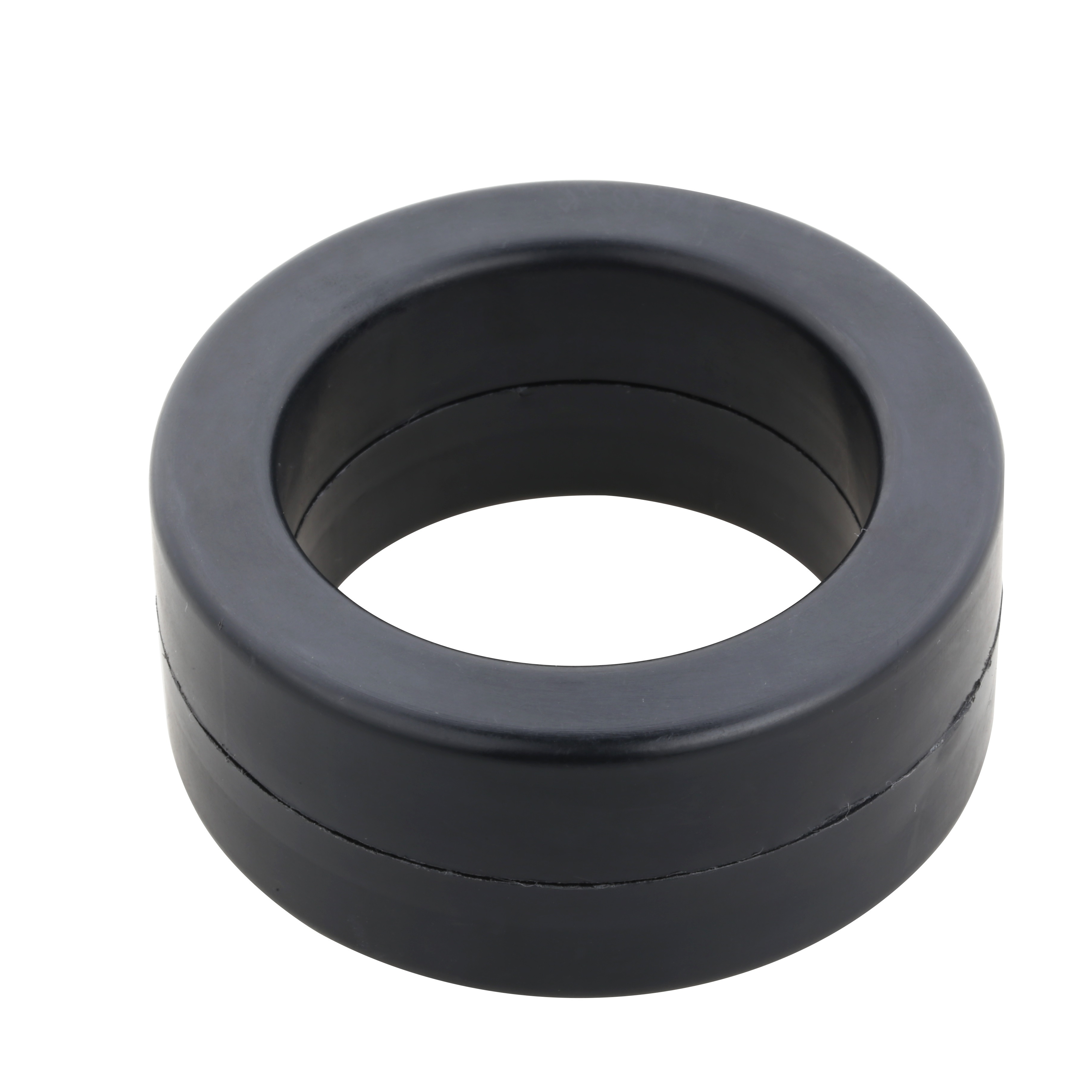

switched mode power supply nanocrystalline core excellent impedance 1K107B material

switched mode power supply nanocrystalline core excellent impedance 1K107B material

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.05

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: NC-0008-L-c

Material:: Copper wire, Magnetic ring core

Br(T) (20KHZ):: <0.20

Core loss (20KHz/0.5T) (W/kg):: <25

Core loss (50KHz/0.32T) (W/kg):: <35

Permeability (20KHz) (Gs/Oe):: >20,000

OEM:: Acceptable

ODM:: Acceptable

Certificates:: RoHs CE ISO9001 & ISO14001

Quick Details

Tolerance:: ±1%

Place of Origin:: Guangdong, China

Brand Name:: CATECH

Model Number:: NC-0008-L-c

Material:: Copper wire, Magnetic ring core

Br(T) (20KHZ):: <0.20

Core loss (20KHz/0.5T) (W/kg):: <25

Core loss (50KHz/0.32T) (W/kg):: <35

Permeability (20KHz) (Gs/Oe):: >20,000

OEM:: Acceptable

ODM:: Acceptable

Certificates:: RoHs CE ISO9001 & ISO14001

Magnet Coil Manufacturer Promotion Welding Machine Transformer Inverter Auxiliary Power Transformer

Factory Directly Supply Custom Variable Automotive Industrial Used Toroidal Common Mode Choke

Magnet Coil Manufacturer Promotion Welding Machine Transformer Inverter Auxiliary Power Transformer

OEM Design Amorphous Inductance Of Coil For PV Industrial

ITEM NO: CCM05

DESCRIPTION:

T oroidal Inductors are used for applications that include current sense transformers,

common mode inductors, switching regulator inductors, input filter inductors,

and more. These inductors provide excellent value — they are generally smaller in

size and cost less than other inductors.

Toroidal Inductors provide a number of advantages over other inductor varieties,

which include:

Compact Size — The smaller size of Toroidal Inductors allows for excellent efficiency

while maintaining top level performance.Lower Cost — With smaller sizes that use

less raw materials, Toroidal Inductors are a highly economical choice.

Efficient Design — Inductor designers can achieve shorter length of turn with

smaller-sized Toroidal Inductors using less cooper wire and with no bobbin as with

E-core designs.

CHAEACTERISTICS:

High μ,high Bs, easy to design, reduce the core geometry effectively

Excellent frequency character

Stable temperature character

Excellent impedance character.

APPLICATION

· EMC filters

· Home Application

· Switched -mode power supplies (SMPS), Power supplies

· Solar inverters

· Uninterruptable power supplies (UPS)

· Welding equipment

· Wind generators

· Frequency converters

Size Sheet Of The Core( Can Be Customized)

Part No	Core Dimension			Finished Dimension
Part No	OD	ID	HT	OD	ID	HT
100-L-c-02	16	12.5	6	17.8	10.7	8
100-L-c-01	16	12.5	6	17.8	10.7	8
00035-L-c	22	17	16	24	15.2	8
088-L-c-01	25	20	10	27.3	17.5	12.3
088-L-c-02	25	20	10	27.3	17.5	12.3
088-L-c-03	30	25	15	32.3	22.7	17.5
0088-L-c	30	20	10	32.5	17.8	12.5
0015-L-c	40	32	15	42.3	29.1	17.8
015-L-c01	40	32	15	42.3	29.1	17.8
015-L-c02	45	32	15	47.3	29.8	17.8
016-L-c-01	50	40	20	52.3	37.1	22.8
016-L-c-02	50	40	20	52.3	37.1	22.8
299-L-c	63	50	20	65.5	46.6	27.8
299-L-c-01	63	50	20	65.5	46.6	27.8
0300-L-c	80	63	20	83	59.5	22.8
300-L-c-01	80	63	20	83	59.5	22.8
0230-L-c	100	80	20	104	75	23
0230-L-c-01	100	80	20	104	75	23
186-L-c-01	130	100	25	134.5	95	28.5
0186-L-c	130	100	25	134.5	95	28.5
186-L-c-02	130	100	25	134.5	95	28.5
032-L-c	160	130	25	165	125	28.5
032-L-c-01	160	130	25	165	125	28.5
209-L-c-01	194	155	25	200	149	28.5
209-L-c	194	155	25	200	149	28.5
0178-L-w	9.8	6.5	4.5	11.2	5.1	5.8
0010-L-w	12	8	4.5	14.1	6.6	6.3
0226-L-w	12.5	10	5	14.3	8.5	7
0039-L-w	15	10	4.5	17.1	7.9	6.5
0217-L-w	16	10	6	17.9	8.1	8.1
0217-L-w-01	16	10	6	17.9	8.1	8.1
0179-L-w	17.5	12.6	6	19	11	8
44-L-w-01	19	15	10	21.2	13	12.3
0038-L-w	20	12.5	8	22.6	10.3	10.2
38-L-w-01	20	12.5	8	22.6	10.3	10.2
88-L-w-03	25	20	10	27.6	17.4	12.8
141-L-w-01	25	16	10	27.9	13.6	12.5
141-L-w-02	25	16	10	27.9	13.6	12.5
141-L-w-04	25	16	10	27.9	13.6	12.5
08-L-w-01	30	20/td>	10	32.8	17.6	12.5
141-L-w-14	30	20	10	32.8	17.6	12.5


Application
EMC Common Mode
Nanocrystalline Core

	Common Mode	Common Mode	Common Mode	EMC	EMC
	Choke	Line Choke	Line Choke	Line Choke	Line Choke

Material	Silicon steel	Nickel Iron		Ferrite Mn-Zn	Amorphous		Nona Crystalline
Material	Silicon steel	50Ni	80Ni	Ferrite Mn-Zn	Cobalt Iron	Fe Iron	Nona Crystalline
Bs(T)	2.0	1.55	0.74	0.5	0.58	1.65	1.2
HC(Oe)	0.5	0.15	0.03	0.1	0.005	0.03	0.01
Initial permeability	1500	6000	>40000	3000	>60000	5000	>100000
Largest permeability	20000	60000	200000	6000	1000000	50000	1000000
Resistivity	50	30	60	106	120	130	80
Curie Temperature	750	500	500	140	225	400	570
Crystallization	-	-	-	-	530	510	510/570

Process

	Design	Produce	Cutting	Winding

	Annealing	Finish product	Testing	Packing

Factory

100+		600+	40,000+	350+
AUTOMATIC		EXPERINCED	SOUARE METERS	MILLION TURNOVER
MACHINE		WORKERS	FACTORY	YEARLY
13
	YEARS	Amorphous Core & Nanocrystalline Core
		Manufacturer Experience
Founded in 2008, CATECH has a total building area of 45840 square
meters and a plant area of 28000 square meters.In 2010, the company was
approvrd as national high-tech enterprise. Top 2 Amorphous & Nanocrystalline
Core Factory in China. We are high-tech corporate enterprise integrating the
design, research and development, product and sale of novel noncrystalline and
nanocrystalline soft magnetic materials and components.Its products are widely
applied to power electronics,new energy, aerospace and aciation, information
communication, etc. its high - performance nanocrystalline ultrathin strip,
noncrystalline reactor for solar inverter and emc common mode filter inductance
especially have outstanding technical level and excellent quality.
