Quick Details
-
Product name:
-
american f clamp
-
Surface treatment:
-
Nickel Plated
-
Material:
-
Malleable Casting
-
Item No.:
-
SC214
Quick Details
-
Clamp Type:
-
Adjustable Angle & Corner Clamps
-
Clamp Material:
-
Steel
-
Place of Origin:
-
Shanghai
-
Product name:
-
american f clamp
-
Surface treatment:
-
Nickel Plated
-
Material:
-
Malleable Casting
-
Item No.:
-
SC214
Product Description

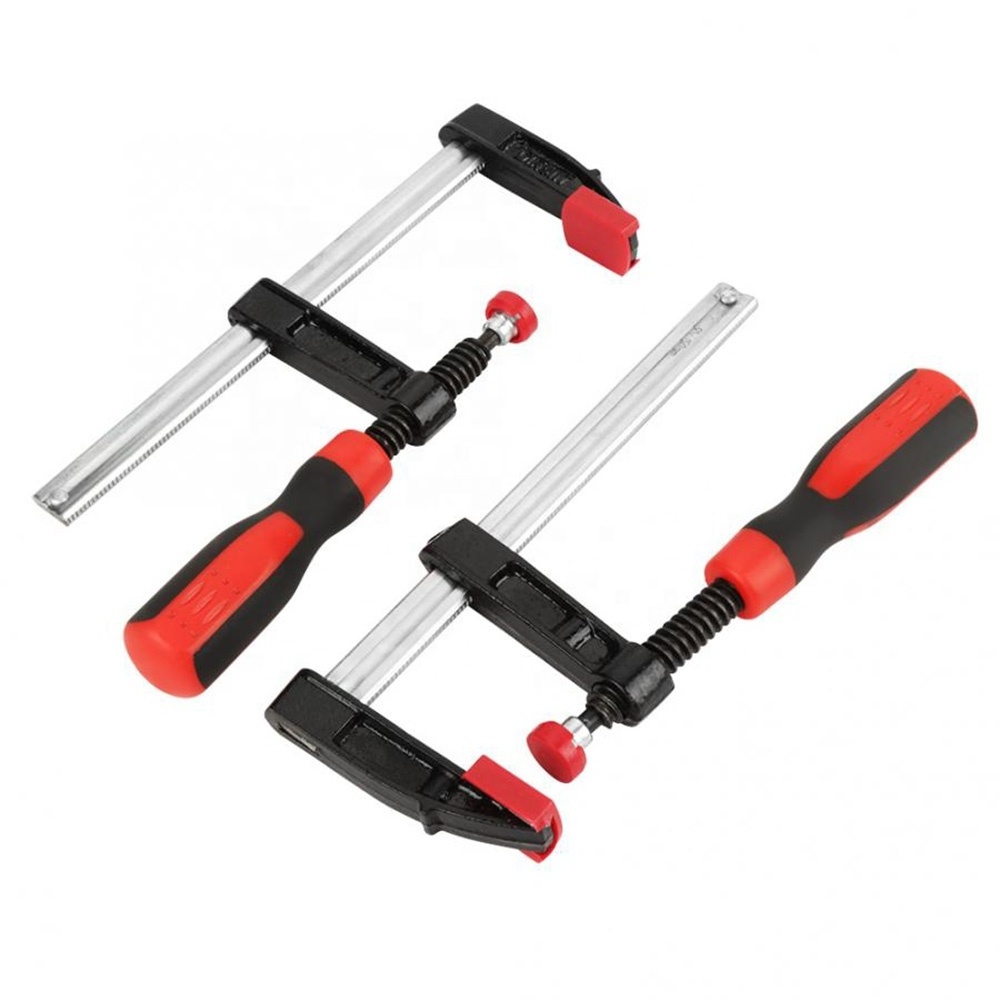

F-Clamps Quick Release Clutch German F Style Clamps Wookworking Clamping Tools
Malleable Casting Iron with Powder Coated Jaw;
A3 Steel with Nickel Plated Bar, Swivel & Spindle;
PP+TPR Double Color Handle;
PVC Plastic Cover.
| Size | Jaw Opening | Throat Depth | Bar Size | Unit Weight | Clamping Force |
|
50x100mm |
100mm | 50mm | 5x15mm | 0.33kgs | 1700N |
| 50x150mm | 150mm | 5 0mm | 5x15 mm | 0.35kgs | 17 00N |
| 50x200mm | 200mm | 5 0mm | 5x15mm | 0.38kgs | 17 00N |
| 50x300mm | 300mm | 5 0mm | 5x15 mm | 0.43kgs | 17 00N |
| 80x200mm | 200mm | 80mm | 6x22mm | 0.74kgs | 2700N |
| 80x250mm | 250mm | 8 0mm | 6x 22 mm | 0.78kgs | 2700N |
|
80x300mm |
300mm | 8 0mm | 6x22mm | 0.83kgs | 2700N |
| 80x400mm | 400mm | 8 0mm | 6x22mm | 0.91kgs | 2700N |
| 100x300mm | 300mm | 100mm | 7x27mm | 1.23kgs | 3300N |
| 100x400mm | 400mm | 100mm | 7x27mm | 1.38kgs | 3300N |
| 100x500mm | 500mm | 100mm | 7x27mm | 1.46kgs | 3300N |
| 100x600mm | 600mm | 100mm | 7x27mm | 1.58kgs | 3300N |
| 100x800mm | 800mm | 100mm | 7x27mm | 1.82kgs | 3300N |
| 100x1000mm | 1000mm | 100mm | 7x27mm | 2.05kgs | 3300N |
| 120x300mm | 300mm | 120mm | 8x30mm | 1.55kgs | 4500N |
| 120x400mm | 400mm | 120mm | 8x30mm | 1.70kgs | 4500N |
| 120x500mm | 500mm | 120mm | 8x30mm | 1.85kgs | 4500N |
| 120x600mm | 600mm | 120mm | 8x30mm | 2.00kgs | 4500N |
| 120x800mm | 800mm | 120mm | 8x30mm | 2.29kgs | 4500N |
| 120x1000mm | 1000mm | 120mm | 8x30mm | 2.58kgs | 4500N |
| 120x1200mm | 1200mm | 120mm | 8x30mm | 2.89kgs | 4500N |
| 120x1500mm | 1500mm | 120mm | 8x30mm | 3.33kgs | 4500N |
| 120x1800mm | 1800mm | 120mm | 8x30mm | 3.77kgs | 4500N |
| 120x2000mm | 2000mm | 120mm | 8x30mm | 4.07kgs | 4500N |
