Working condition:
1.Working tempreture:-10~+60°C,
2.Work class:A7,
3.Power Source:3ph,380V,50HZ or other under customer requirement.
Safety feature:
1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
2.Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
3.Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
4.Safety hook latch used for avoiding the lifted material out off from the hook
5.Voltage lower protection system
- Product Details
- {{item.text}}
Quick Details
-
Span:
-
22m-31.5 m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KuangYuan
-
Weight (KG):
-
462000 kg
-
Item name:
-
Casting Crane for Metallurgy Industry
-
Duty:
-
A7~A8
-
Control mode:
-
Cabin
-
Working temperature:
-
Up to 60 degree
-
Protection class:
-
IP55
-
Main electrical parts:
-
Schneider
-
Speed:
-
Frequency inverter
-
Control:
-
Cabin or remote or both
-
PLC:
-
Support
-
Power Source:
-
380~480V 50hz
Quick Details
-
Max. Lifting Height:
-
25M, 15M, 20M
-
Rated Lifting Moment:
-
3200KN
-
Max. Lifting Load:
-
320ton
-
Span:
-
22m-31.5 m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KuangYuan
-
Weight (KG):
-
462000 kg
-
Item name:
-
Casting Crane for Metallurgy Industry
-
Duty:
-
A7~A8
-
Control mode:
-
Cabin
-
Working temperature:
-
Up to 60 degree
-
Protection class:
-
IP55
-
Main electrical parts:
-
Schneider
-
Speed:
-
Frequency inverter
-
Control:
-
Cabin or remote or both
-
PLC:
-
Support
-
Power Source:
-
380~480V 50hz
Product Overview

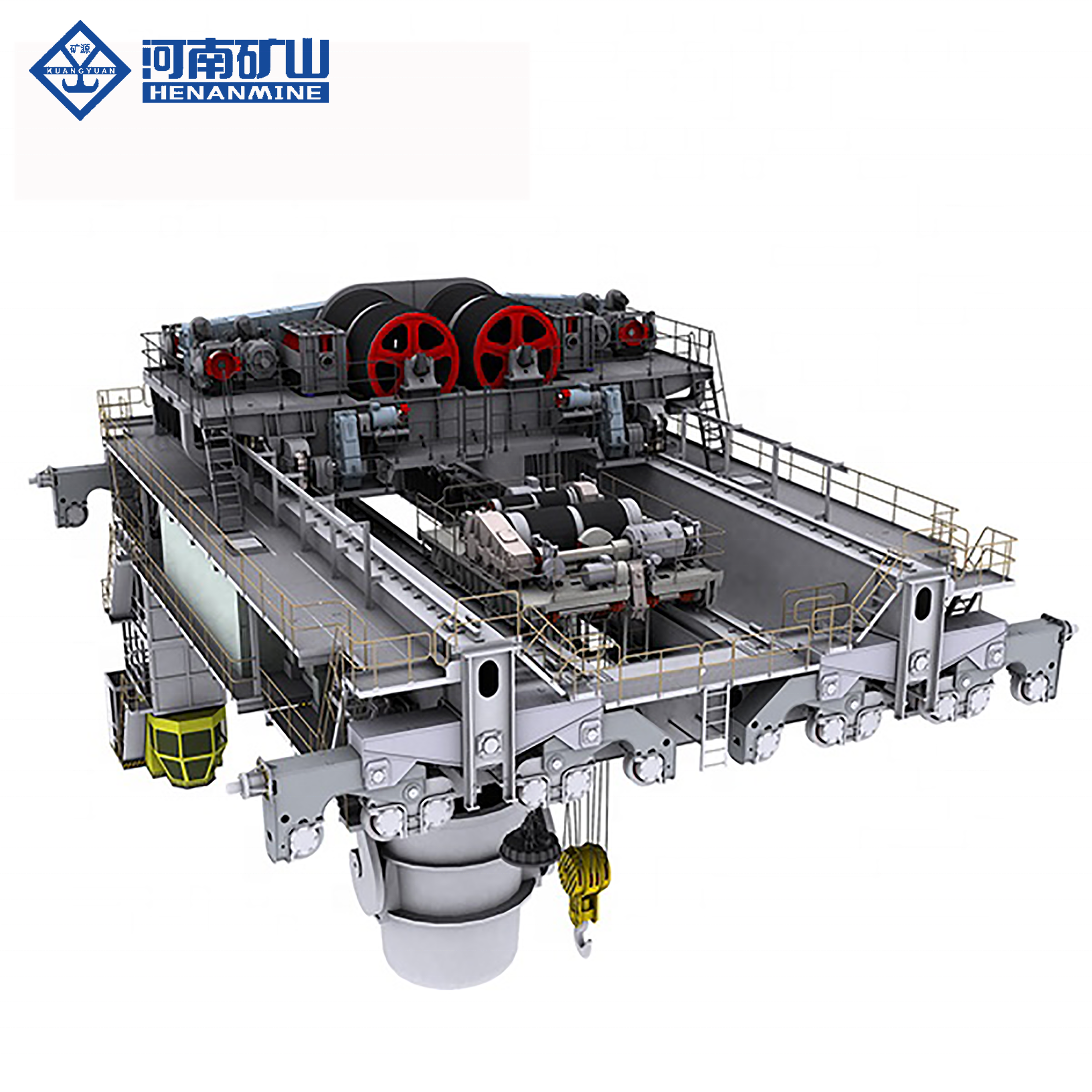

YZS Type Heavy duty 200 ton 280 ton 320 ton Four Girder Overhead Crane Casting Bridge Cranes
YZS Four Girder Ladle crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting. Also we can choose the suitable speed under the customer requirement.
FEATURES AT A GLANCE
Features
1.Very stable because of two lifting point on hanging beam of ladle hook through wirerope pulley.
2.Very very safty to lift because every one hanging beam pulley have two pcs of wirerope to avoid the risk happened once one pc
of wirerope damaged.
3.Anti high temperature.
4.Capacity is 125/32tons and up.
5.Two sets of brake for each lifting point and 4sets of brake for the main lift.
6, Emergency stop system
7, Over current Protection
8, Short-circuit Protection
9, Phase sequence protection.
10, High protection level IP54 IP55.
11, Zero position protection.
12, Voltage loss protection.
13, Current overload protection.
14, Two carts for two lift, main lift cart is up, aux lift cart is below, to finish the heavy duty working, and could aux hook
could be on left and right of main hook.
2.Very very safty to lift because every one hanging beam pulley have two pcs of wirerope to avoid the risk happened once one pc
of wirerope damaged.
3.Anti high temperature.
4.Capacity is 125/32tons and up.
5.Two sets of brake for each lifting point and 4sets of brake for the main lift.
6, Emergency stop system
7, Over current Protection
8, Short-circuit Protection
9, Phase sequence protection.
10, High protection level IP54 IP55.
11, Zero position protection.
12, Voltage loss protection.
13, Current overload protection.
14, Two carts for two lift, main lift cart is up, aux lift cart is below, to finish the heavy duty working, and could aux hook
could be on left and right of main hook.
PRODUCT SPECIFICATIONS
|
Capacity
|
320/80 ton
|
280/80 ton
|
240/80 ton
|
225/65 ton
|
|
Span(m)
|
24.5
|
22
|
22
|
27
|
|
Working Class
|
A7
|
A7
|
A7
|
A7
|
|
Lifting height
(Main hook) M
|
28
|
29
|
25
|
32
|
|
Lifting height
(Aux Hook) M
|
32
|
29
|
27
|
34
|
|
Speed
(Main Hook)m/min
|
7.5
|
12
|
7
|
11
|
|
Speed
(Aux Hook)m/min
|
10
|
10
|
9.6
|
11
|
|
Speed
(Main trolley)m/min
|
29
|
40
|
35
|
41
|
|
Speed
(Aux trolley)m/min
|
39
|
40
|
38
|
39.5
|
|
Speed
(Crane)m/min
|
58
|
80
|
80
|
84
|
CRANE MAIN COMPONENTS
COMPANY PROFILE
Packing & Delivery
FAQ
Q: Can you provide custom service?
A: Yes, of course. We have our own engineer group. They can work out customized design according to your requirement. So be free to contact us to tell parameters you need.
Q: Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q: Whether you can offer the matched spare parts?
A: Yes, we offer all the related spare parts. Such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar, etc.
Q: How can you ensure the quality?
A: Before delivery, every product will be tested strictly, and we will send you the quality certification. You are also warmly welcomed to our factory to make the inspections.
Q: Have own parameters, How to get the accurate quote?
A: You can provide the following information for quote :
1. What kind of material are you handling?
2. What kind of place will you use it?
3. Lifting Capacity of your need?
4. Lifting Height?
5. Crane Span?
6. Special Power voltage? (Three phrase 380v/50HZ or other)
