Quick Details
-
Material:
-
PTFE
-
Housing Material:
-
PP
-
Diameter:
-
50mm
-
Filter Media:
-
NYL/Hydrophilic PTFE/Hydrophobic PTFE/Hydrophobic PVDF/PES
-
Sealing Technology:
-
Thermal Welding (No Adhesives)
-
Outer Diameter:
-
60 or 65mm
-
OEM:
-
OEM Service Accepted
-
Shelf Time:
-
5 years
-
Lead Time:
-
15 days after prepayment
-
Product name:
-
Medical Insufflation Filter Tubing Set
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIGWAY
-
Model Number:
-
BW-IF-001
-
Material:
-
PTFE
-
Housing Material:
-
PP
-
Diameter:
-
50mm
-
Filter Media:
-
NYL/Hydrophilic PTFE/Hydrophobic PTFE/Hydrophobic PVDF/PES
-
Sealing Technology:
-
Thermal Welding (No Adhesives)
-
Outer Diameter:
-
60 or 65mm
-
OEM:
-
OEM Service Accepted
-
Shelf Time:
-
5 years
-
Lead Time:
-
15 days after prepayment
-
Product name:
-
Medical Insufflation Filter Tubing Set

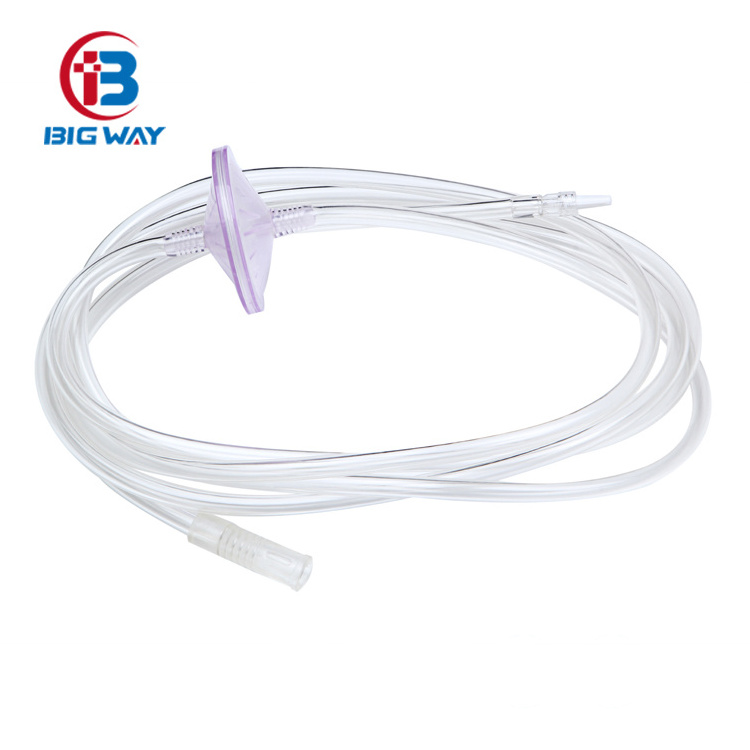

Medical Insufflation Filter Tubing Set
1.)Automatic detection, automatic control system;
2.)Automatic induction undervoltage,overvoltage alarm function;
3.) High percision, Gas flow are accurate and stable,easy operation, stable
The INSUFFLATOR FILTER SET provides the simple, cost effective answer to the significant problem of microbial contamination of pneumoperitoneal gas from cylinders and insufflators.
The use of filters to prevent microbial contamination of gas supplies and to eliminate the risk of blood and body fluids from entering valuable insufflation equipment.
• GLASS FIBRE FREE filter material. Modified white acrylic co-polymer cast on a non woven polyester support
provides safe filtration to 0.1 micron for the prevention of gas born particulate and microbial contamination.
• HYDROPHOBIC BARRIER allows filter to be used in either direction, preventing contamination of
insufflation systems with blood and body fluids.
• INTEGRAL 3m patient connection tubing set with male luer lock fitting for fast simple connection to all standard.
| Item | Feature |
| Filter Media | NYL/Hydrophilic PTFE/Hydrophobic PTFE/Hydrophobic PVDF/PES |
| Housing Material | PP |
| Outer Dia. | PTFE 65mm |
| NYL/PES/PVDF 60mm | |
| Filtration Area | ≥19.6cm 2 |
| Ratings (um) | 0.1, 0.22, 0.45, 0.65 |
| Bubble Point(PTFE 0.22 m) | ≥900mbar, 60%IPA |
| Maximum Operating Temperature | 60 ℃/140 ℉ |
| Forward Maximum Operation Pressure | ≥3.5bar@23℃; ≥3bar@60℃ |
Q 1 , are the samples available ?
Yes , samples are in free , you just need to pay the freight charges .
Q 2 , is our logo available ?
Yes , OEM and ODM are all ok .
Q 3 , how about the after-sales services ?
We will be responsible for products in the valid time .
Q 4 , Do you have in the inspection procedures for products ?
Yes , 100% self-inspection before packing .
Q 5 , can several products be mixed in one container ?
Yes , it is ok if every product meets our MOQ .
Q 6 , can you help us to register the products in our country ?
Yes , all documents and samples will be provided by us ,
But freight charges are paid by yourself .
