Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CX
-
Model Number:
-
SLA-12KB
-
Torque:
-
request
-
Item:
-
SLA-12KB
-
Voltage:
-
12V/24V/36V/48VDC
-
Load:
-
12000N
-
stroke:
-
50mm-1000mm
-
Weight:
-
3kg
-
Noise:
-
Low Voice
-
Duty Cycle:
-
10% 2 Mins Continuous Max
-
IP Grade:
-
IP66
-
speed:
-
Max 80mm/s
-
Option:
-
Hall/potentiometers
Quick Details
-
Speed(RPM):
-
request
-
Continuous Current(A):
-
300mA
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CX
-
Model Number:
-
SLA-12KB
-
Torque:
-
request
-
Item:
-
SLA-12KB
-
Voltage:
-
12V/24V/36V/48VDC
-
Load:
-
12000N
-
stroke:
-
50mm-1000mm
-
Weight:
-
3kg
-
Noise:
-
Low Voice
-
Duty Cycle:
-
10% 2 Mins Continuous Max
-
IP Grade:
-
IP66
-
speed:
-
Max 80mm/s
-
Option:
-
Hall/potentiometers
Product Overview

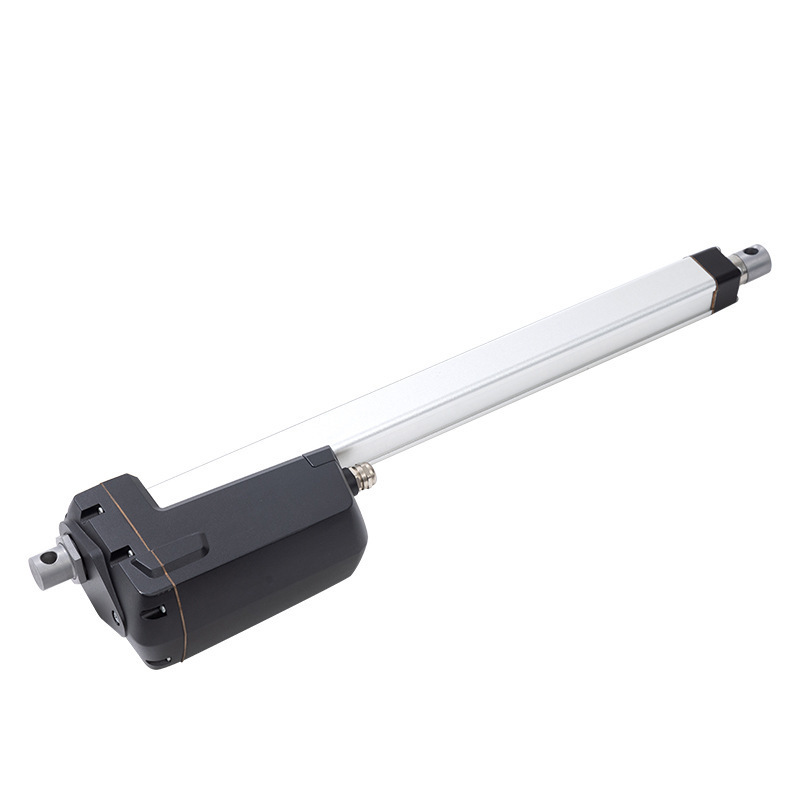

SLA-12KB
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Stroke range: 50 mm-1000mm Customized
Optional speed: 20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 12000N / 1200 Kgs / 2700 lbs at 3mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than
pushing force.
No-load current: 3~4A at 12V or 1.5~2A at 24V
Full load current: 15~22A at 12V or 8~12A Hat 24V
Please use a 12V/30A or 24V/15A power supply to power a linear actuator, or use a 12V/50A or 24V/25A power supply to power two linear actuators, or use a 12V/100A or 24V/50A power supply to power four linear actuators.
Shaft diameter: 29mm
Mounting holes diameter: 13mm
Housing material: Cast aluminum alloy
Stroke rod material: Stainless steel
Gear material: Steel alloy
Motor type: Brushed DC Motor
Duty cycle: 10%, max 2mins continuous use
Plug standard: Ordinary Two-core Wire, or Six-core Wire (with Hall effect sensor)
Certifications: CE
Environment temperature: -25℃ to 85℃
Operating noise: about 65dB~80dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP66
Stroke range: 50 mm-1000mm Customized
Optional speed: 20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 12000N / 1200 Kgs / 2700 lbs at 3mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than
pushing force.
No-load current: 3~4A at 12V or 1.5~2A at 24V
Full load current: 15~22A at 12V or 8~12A Hat 24V
Please use a 12V/30A or 24V/15A power supply to power a linear actuator, or use a 12V/50A or 24V/25A power supply to power two linear actuators, or use a 12V/100A or 24V/50A power supply to power four linear actuators.
Shaft diameter: 29mm
Mounting holes diameter: 13mm
Housing material: Cast aluminum alloy
Stroke rod material: Stainless steel
Gear material: Steel alloy
Motor type: Brushed DC Motor
Duty cycle: 10%, max 2mins continuous use
Plug standard: Ordinary Two-core Wire, or Six-core Wire (with Hall effect sensor)
Certifications: CE
Environment temperature: -25℃ to 85℃
Operating noise: about 65dB~80dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP66
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
No
|
Item
|
linear actuator
|
|
|
||
|
1
|
Warranty
|
1year
|
|
|
||
|
2
|
|
CE
|
|
|
||
|
3
|
Place of Origin
|
China Jiangsu
|
|
|
||
|
4
|
color
|
silver white
|
|
|
||
|
5
|
Speed
|
5mm/s~80mm/s Customized
|
|
|
||
|
6
|
Max Load
|
12000N
|
|
|
||
|
7
|
Voltage Option
|
24V/12V/36V/48VDC
|
|
|
||
|
8
|
Stroke
|
50mm -1000mm customized
|
|
|
||
