Quick Details
-
Productivity:
-
180 m³/h
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
maxizm
-
Weight:
-
44000 kg
-
Dimension(L*W*H):
-
15300*2530*4000mm
-
Model:
-
AROCS4143
-
Wheelbase:
-
2050+4300+1350mm
-
Max.power:
-
315kw
-
Concrete pumping pressure:
-
10.2 Mpa
-
Reach height:
-
61.1m
-
Slewing radius:
-
55.9m
-
Machiner weight:
-
52000kg
-
Rated Power:
-
335kw
-
Engine model:
-
OM470LA.6-56
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
61.1 m
-
Max. horizontal conveying distance:
-
52.5 m
-
Productivity:
-
180 m³/h
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
maxizm
-
Weight:
-
44000 kg
-
Dimension(L*W*H):
-
15300*2530*4000mm
-
Model:
-
AROCS4143
-
Wheelbase:
-
2050+4300+1350mm
-
Max.power:
-
315kw
-
Concrete pumping pressure:
-
10.2 Mpa
-
Reach height:
-
61.1m
-
Slewing radius:
-
55.9m
-
Machiner weight:
-
52000kg
-
Rated Power:
-
335kw
-
Engine model:
-
OM470LA.6-56
Contact Information
Ariel Wang
Sales Manager
Whatsapp/Mobile/Wechat: +86 15306398125
Maxizm Construction Machinery (Qingdao) Co., Ltd.
(Construction Machinery Professional Exporter)
Web: www.maxizm.com
Maxizm Construction Machinery (Qingdao) Co., Ltd.
(Construction Machinery Professional Exporter)
Web: www.maxizm.com
Please send inquiry or chat with us and let us know the main use, brand, power and other requirements of the machinery you want to purchase. We will recommend the related products to you~
Product Description
Advantages and highlights:
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Specification
|
Category
|
Item
|
Unit
|
HB62V
|
|
Overall
|
Outline dimension
|
mm
|
15300×2530×4000
|
|
|
Overall weight
|
kg
|
44000
|
|
|
Brand
|
/
|
Be*nz
|
|
Chassis
|
Model
|
/
|
AROCS4143
|
|
|
Wheelbase
|
mm
|
2050+4300+1350
|
|
|
Max.power
|
kW
|
315
|
|
Engine
|
Emission
|
/
|
China V
|
|
|
Theoretical
|
m³/h
|
180
|
|
Pumping system
|
Concrete pumping pressure
|
Mpa
|
10.2
|
|
|
Theoretical pumping times
|
Times/min
|
22~24
|
|
|
Delivery cylinder diameter × stroke
|
mm
|
φ260×2200
|
|
Placing boom
|
Reach height
|
m
|
61.1
|
|
|
Reach depth
|
m
|
43.6
|
|
|
Slewing radius
|
m
|
55.9
|
|
|
Slewing angle
|
°
|
±270
|
|
Others
|
Transfer tuble
|
/
|
Rock valve/S valve
|
|
|
|
km/h
|
|
|
|
|
km/h
|
|

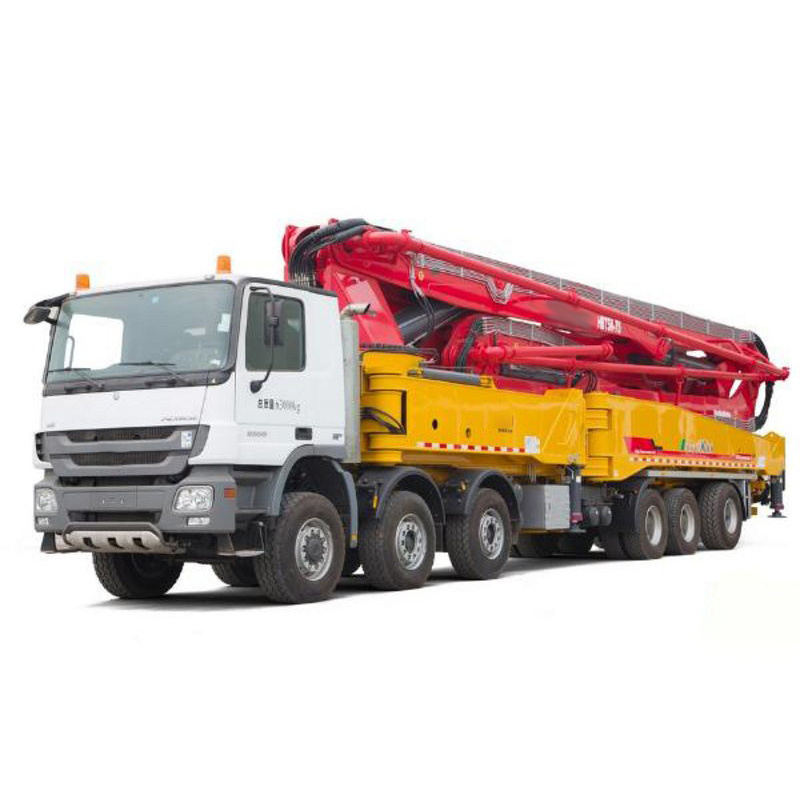

Product Picture
