Quick Details
-
Weight:
-
500 KG
-
Engine:
-
Electric Engine Diesel
-
Max Drilling Depth:
-
100m
-
Model:
-
XY-1
-
Drilling diameter:
-
75-300mm
-
Color:
-
Customer Required
-
Application:
-
Geological Exploration,water well,core,soil sample
-
Product name:
-

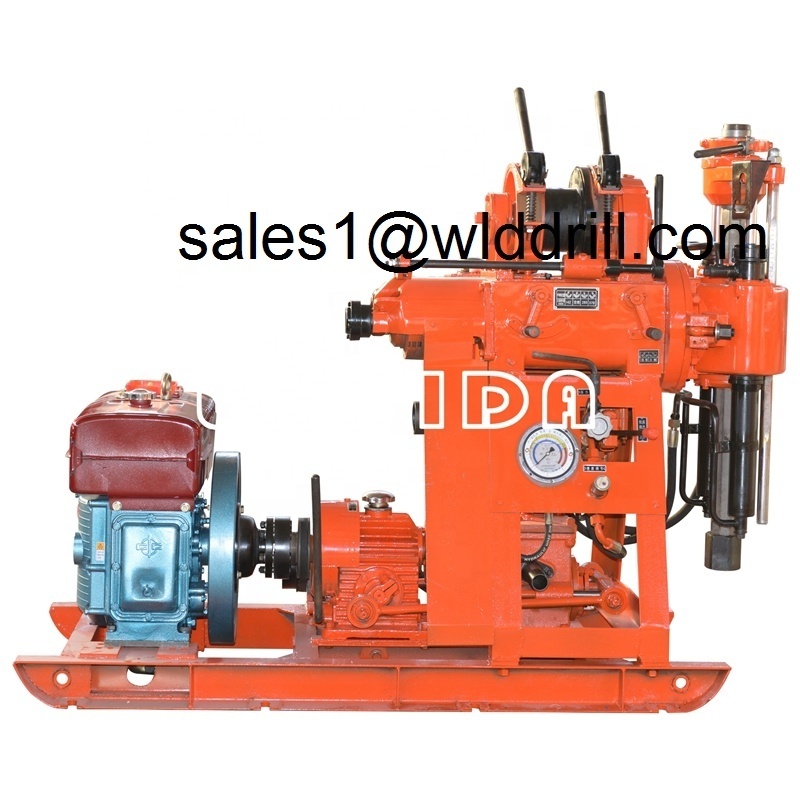

XY-1 mini borehole core soil sample drilling rig for sale
-
Key words:
-
water well core drilling rig
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Weilida
-
Voltage:
-
220v/380v
-
Weight:
-
500 KG
-
Engine:
-
Electric Engine Diesel
-
Max Drilling Depth:
-
100m
-
Model:
-
XY-1
-
Drilling diameter:
-
75-300mm
-
Color:
-
Customer Required
-
Application:
-
Geological Exploration,water well,core,soil sample
-
Product name:
-
XY-1 mini borehole core soil sample drilling rig for sale
-
Key words:
-
water well core drilling rig
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
1.1 Application and scope
1.1.1 It is suitable for drilling in reconnaissance, geophysical exploration, road and building exploration, blasting holes and other drilling engineering.
1.1.2 Alloy, steel grit and steel drop bits can be chosen according to the different strata.
1.1.3 It can drill 2-9 grade sand clay and rock layer.
1.1.4 The rated drill depth shall be 100 meters and the deepest shall not exceed 120m.
1.2 Features
1.2.1 The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.
1.2.2 A ball mounted card blessing mechanism replaces the chuck which can carry out without stopping the lever, easy to operate, safe and reliable.
1.2.3 Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.
1.2.4 Handle concentration, easy operation.
1.2.5 It is compact. The drill, water pump and diesel engine are installed on the same base, which occupies a small area.
1.2.6 It is light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains.
|
110 |
|
|
Drilling depth (m) |
100 |
|
Drill pipe diameter (mm) |
42 |
|
Drilling angle(°) |
90~75 |
|
Equipment size(L * B * H) |
1640* 1030 * 1440 (mm) |
|
Rig weight (except engine) |
500 |
|
Gyrator |
|
|
Spindle speed (four gear) (r/min) |
142 , 285 , 570 |
|
Spindle travel(mm) |
450 |
|
Spindle no-load lifting maximum moving speed(m/s) |
0.05 |
|
Spindle no load drop maximum movement speed(m/s) |
0.067 |
|
Spindle maximum feed pressure(KN) |
15 |
|
Spindle maximum lifting force(KN) |
25 |
|
Spindle maximum output torque(KN• m) |
0.5 |
|
Winch assembly |
|
|
Winch maximum lifting force (single rope)(KN) |
10 |
|
Reel speed (r/min) |
55,110,220 |
|
Reel circumferential speed(m/s) |
0.42,0.84 ,1.68 |
|
Reel diameter(mm) |
145 |
|
Wire rope diameter(mm) |
9.3 |
|
Wire rope density (m) |
27 |
|
Brake diameter(mm) |
230 |
|
Brake band width (mm) |
50 |
|
Water pump |
|
|
Pump type |
Horizontal single cylinder double acting |
|
Maximum displacement (motor)(L/min) |
95(77) |
|
Work pressure (Mpa) |
0.7 |
|
Cylinder diameter (mm) |
80 |
|
Piston stroke(mm) |
100 |
|
The maximum allowable pressure (Mpa) |
1.2 |
|
Oil pump |
|
|
Oil pump type |
Gear pump |
|
Nominal pressure (Mpa) |
12.5 |
|
Rated flow(ml/r) |
20 |
|
Rated speed(r/min) |
800-2500 |
|
Diesel engine or motor |
|
|
Diesel engine |
ZS1100 |
|
Rated power (KW) |
12.1 |
|
Rated speed (r/min) |
2200 |
|
Rated pressure(Mpa) |
11 |
|
Motor type |
Y160M - 4 |
1.Top-notch technical team
2.Perfect quality management
3.Advanced and first-class equipment
4.Professional experience of 20 years
5.Comprehensive international standard
6.Each part of the drilling rig is manufactured by our factory
SPT tools
1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.
2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.
3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy to operation,free to maintenance.
4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.
Packing Details : The drilling rig will be packed into wooden box while drill pipes will be packed into bundles or as customer's requirements.
Delivery Details : Usual loading port is Tianjin port in Tianjin ,main port in north of China.
