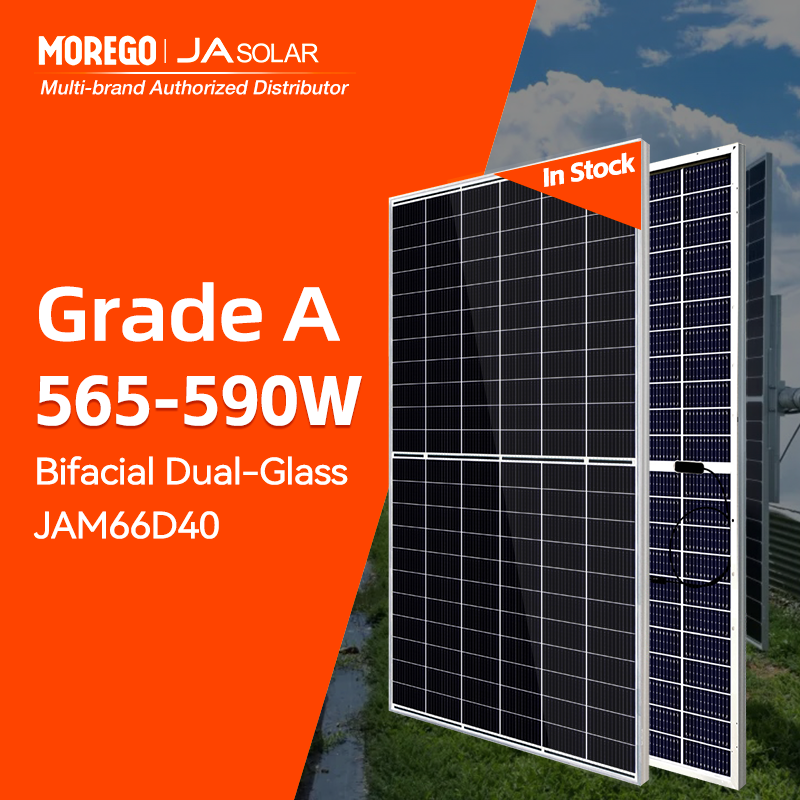

Quick Details
-
Warranty:
-
30 years linear warranty
-
Brand Name:
-
JA SOLAR
-
Model Number:
-
JAM66D42 565-585MB
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2278*1134*30mm
-
Junction Box:
-
IP68, 3 diodes
-
Weight:
-
33.1Kg
-
Connector:
-
MC4-EVO2 / QC 4.10-35
-
Packaging Configuration:
-
36 Per Pallet
-
40'HQ:
-
720pcs
-
Frame:
-
Anodized Aluminium Alloy
-
Front Glass / Back Glass:
-
2.0mm Tempered Low Iron
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON, BIPV
-
Panel Efficiency:
-
22.8%
-
Warranty:
-
30 years linear warranty
-
Brand Name:
-
JA SOLAR
-
Model Number:
-
JAM66D42 565-585MB
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2278*1134*30mm
-
Junction Box:
-
IP68, 3 diodes
-
Weight:
-
33.1Kg
-
Connector:
-
MC4-EVO2 / QC 4.10-35
-
Packaging Configuration:
-
36 Per Pallet
-
40'HQ:
-
720pcs
-
Frame:
-
Anodized Aluminium Alloy
-
Front Glass / Back Glass:
-
2.0mm Tempered Low Iron
|
MECHANICAL SPECIFICATION
|
|
|
|
|||
|
Format
|
2278*1134*30mm
|
|
|
|||
|
Weight
|
33.1kg±3%
|
|
|
|||
|
Cell
|
6 x 22 monocrystalline cells
|
|
|
|||
|
Junction Box
|
IP68, 3 diodes
|
|
|
|||
|
Cable
|
4mm2
|
|
|
|||
|
ELECTRICAL CHARACTERISTICS
|
|
|
|
|
|
|||||
|
minimum performance at standard test conditions,stc1 (power tolerance -0~+5w)
|
|
|
|
|
|
|||||
|
JAM66D402
|
|
565MB
|
570/MB
|
575/MB
|
580/MB
|
|||||
|
Max. Power
|
Pmax
|
565W
|
570W
|
575W
|
580W
|
|||||
|
Open Circuit Voltage
|
Voc
|
47.58V
|
47.78V
|
47.98V
|
48.18V
|
|||||
|
Short Circuit Current
|
Isc
|
15.06A
|
15.11A
|
15.16A
|
15.21A
|
|||||
|
Max. Power Voltage
|
Vmp
|
39.79V
|
40.00V
|
40.21V
|
40.42V
|
|||||
|
Max. Power Current
|
Imp
|
14.20A
|
14.25A
|
14.30A
|
14.35A
|
|||||
|
Efficiency²
|
η
|
21.9%
|
22.1%
|
22.3%
|
22.5%
|
|||||
