xWDM Solution Passive LC/APC Connector 1310-1610nm CWDM Mux With sfp module
1310-1610nm CWDM Mux
Description
Coarse Wavelength Division Multiplexing (CWDM) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving apparatus.
100GHz CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.
Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1620nm
Wide Operating Temperature:
From -40°C to 85°C
High Reliability and Stability
Applications
CWDM System
PON Networks
CATV Links
Performance Specifications
|
Parameter |
4 Channel |
8 Channel |
18 Channel |
||||
|
Mux |
Demux |
Mux |
Demux |
Mux |
Demux |
||
|
Channel Wavelength (nm) |
1270~1610 |
||||||
|
Center wavelength Accuracy (nm) |
±0.5 |
||||||
|
Channel Spacing (nm) |
20 |
||||||
|
Channel Passband (@-0.5dB bandwidth (nm) |
>13 |
||||||
|
Insertion Loss (dB) |
≤1.6 |
≤2.5 |
≤3.0 |
||||
|
Channel Uniformity (dB) |
≤0.6 |
≤1.0 |
≤1.5 |
||||
|
Channel Ripple (dB) |
0.3 |
||||||
|
Isolation (dB) |
Adjacent |
N/A |
>30 |
N/A |
>30 |
N/A |
>30 |
|
Non-adjacent |
N/A |
>40 |
N/A |
>40 |
N/A |
>40 |
|
|
Inertion Loss Temperature Sensitivity (dB/°C) |
<0.005 |
||||||
|
Wavelength Temperature Shifting (nm/°C) |
<0.002 |
||||||
|
Polarization Dependent Loss (dB) |
<0.1 |
||||||
|
Polarization Mode Dispersion |
<0.1 |
||||||
|
Directivity (dB) |
>50 |
||||||
|
Return Loss (dB) |
>45 |
||||||
|
Maximum Power Handling (mW) |
300 |
||||||
|
Opterating Temperature (°C) |
-5~+75 |
||||||
|
Storage Temperature (°C) |
-40~85 |
||||||
|
Package dimension (mm) |
L100 x W80 x H10 or L140xW100xH15 |
||||||
Above specification are for device without connector.
Ordering Information
|
Configuration |
Number of Channels |
1st Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
M=Mux D=Demux O=OADM |
04=4 Channel
08=8 Channel 16=16 Channel
18=18 Channel
…… |
27=1270nm
……
|
1=Bare fiber
|
1=1m
|
0=None
…… |
2~18Channels available.
Wavelength: 1270nm-1610nm
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
CWDM Solutions and CWDM SFP.
Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.
Fiber Optical Multiplexer Size
We supply
Our standard package types of Fiber Optical Multiplexer are Field Module ABS Plastic Box, 19" Rack Mount Chassis and LGX Metal Cassette Box. We also supply custom package to meet customers' requirements. All the Fiber Optical Multiplexer provide excellent optical performance and high reliability to ease of fiber handling and power saving solution.

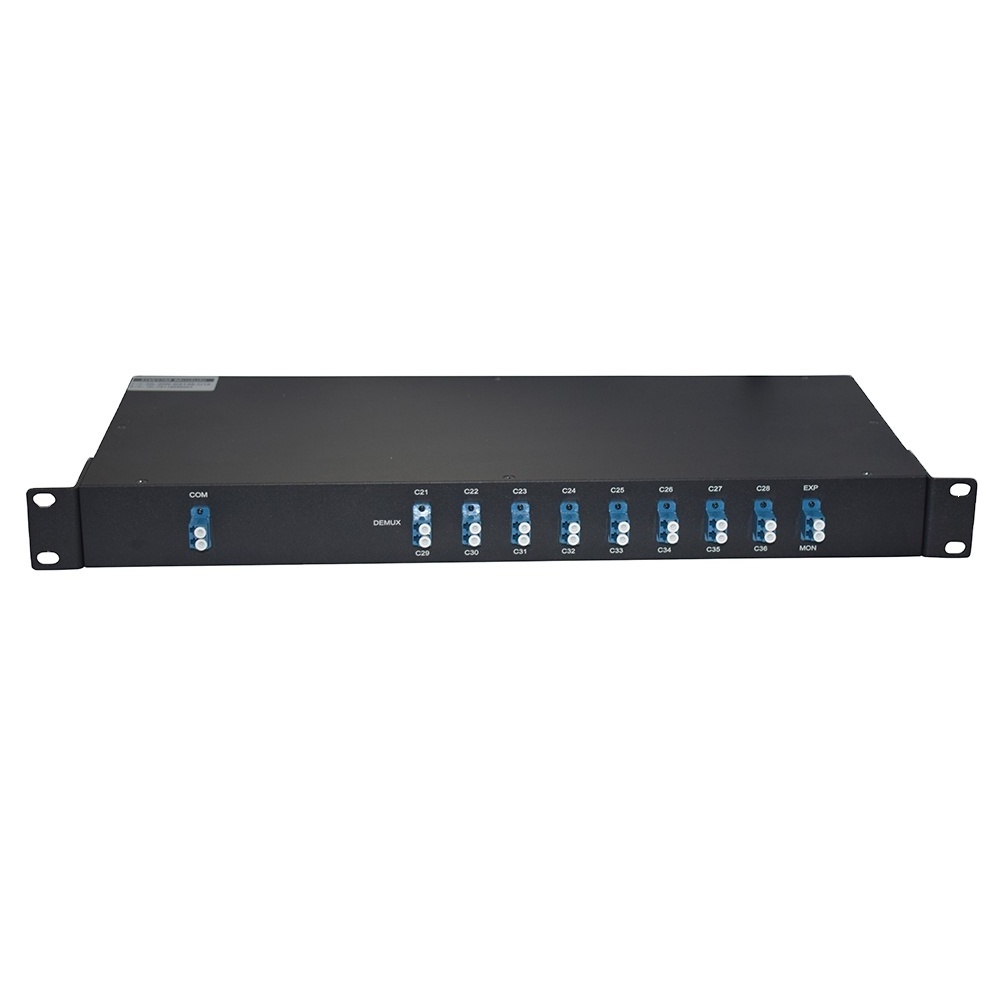

Product picture show
