Quick Details
-
Warranty Time:
-
1 year
-
Name:
-
Managed Fiber Switch
-
Data Rate:
-
1.25G
-
Material:
-
Aluminum Alloy
-
Installation method:
-
Din-rail
-
Connector Type:
-
SFP Slots+RJ45
-
Dimensions:
-
165*145*45mm
-
Weight:
-
1kg/pcs
-
Level:
-
2
-
Power supply:
-
12-57V DC
-
Operating temperature:
-
-30~80℃
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
PIN-2SFP8GF-M
-
Place of Origin:
-
Guangdong, China
-
Warranty Time:
-
1 year
-
Name:
-
Managed Fiber Switch
-
Data Rate:
-
1.25G
-
Material:
-
Aluminum Alloy
-
Installation method:
-
Din-rail
-
Connector Type:
-
SFP Slots+RJ45
-
Dimensions:
-
165*145*45mm
-
Weight:
-
1kg/pcs
-
Level:
-
2
-
Power supply:
-
12-57V DC
-
Operating temperature:
-
-30~80℃
Product Description

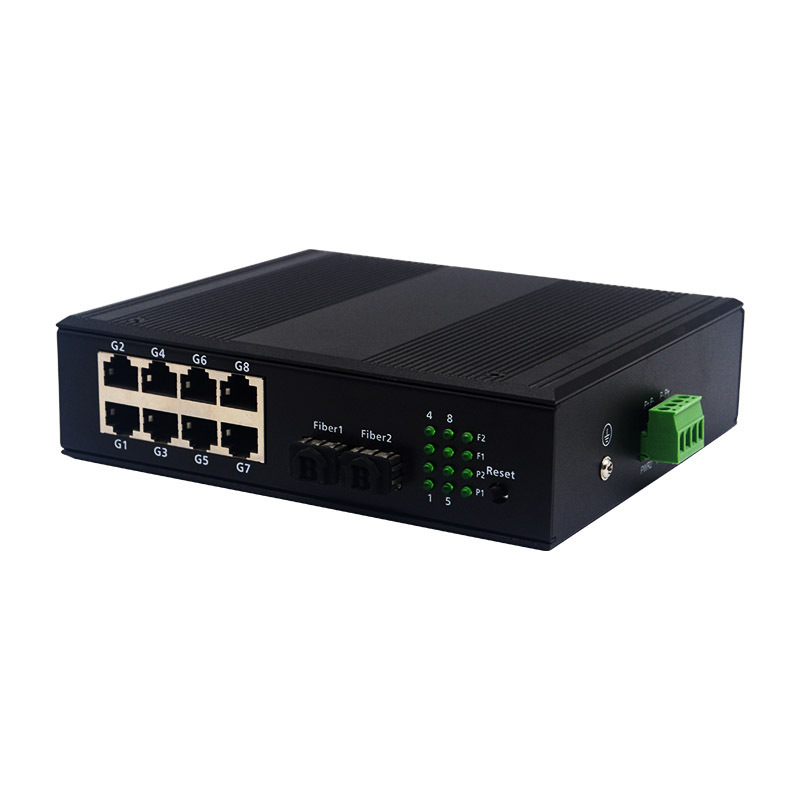

The industrial managed Ethernet switch that is embedded with 8*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30 watts per port, and 2*1000FxSFP slots without optional modules.
A fully manageable industrial Ethernet switch with a pre-loaded Layer 2 network management web console that supports a low voltage redundant power input range from DC 12V~55V. This product is IP30 rated, DIN-rail mountable. It supports industrial extended temperature range from -30°C to 80°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.
Specification
|
Optical Cable
|
Multimode : 850nm 0-550M / 1310nm 0-2KM
simple module : 1310nm 0-40kM / 1510nm 0-120KM
|
|
Anti-thunder
|
4KV
|
|
Ports
|
8*10/100/1000Mbps RJ45 Port+2*10/100/1000Mbps SFP Slot(Not Include Optical Module)
|
|
Architecture
|
Store-and-forward
|
|
Communication Mode
|
Full-Duplex & Half-Duplex
|
|
Standard
|
IEEE802.3 10BASE-T;IEEE802i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 100Base-T;IEEE802.3z 100Base-X,IEEE802.3x
|
|
Products Status
|
Stock
|
|
Casing
|
Aluminum Case
|
|
Input
|
DC12-57V, Overcurrent 4.0A protection,Reverse connection protection
|
|
MTBF
|
300000 Hour
|
|
Protection Grade
|
IP40
|
|
Fan
|
No Fan, Natural Heat Dissipation
|
|
Installation Method
|
35mm DIN-Rail Mounting or Desktop
|
|
Dimensions (WxDxH)
|
165*125*45mm
|
|
Weight
|
1Kg/PCS
|
|
Operating Temperature
|
-30°C to 80°C (-22°F to 176°F)
|
|
Operating Humidity
|
5%-95%(non-condensing)
|
Packing & Delivery
Packaging Details
: Box or carton
Port
: Shenzhen
Lead time
:
Quantity
(pieces)
1 - 100 >100
Lead time (days) 15 To be negotiated
