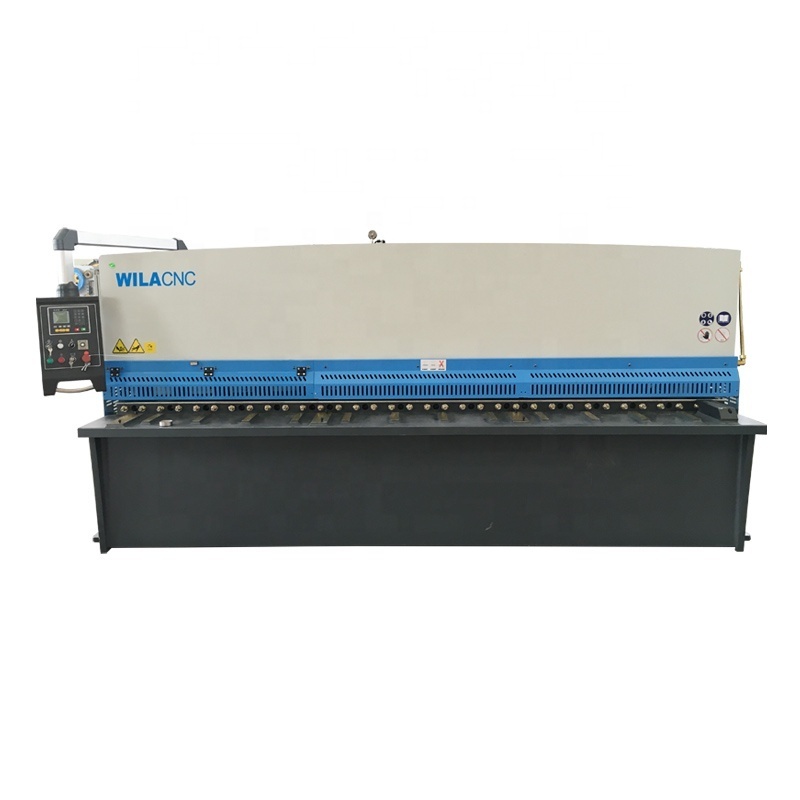

Quick Details
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
250 mm
-
Brand Name:
-
WILACNC
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
5000 KG
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
Clients' requirements
-
Dimension(L*W*H):
-
3840x16101620
-
Year:
-
new
Quick Details
-
Max. Cutting Width (mm):
-
3200mm
-
Max. Cutting Thickness (mm):
-
4 mm
-
Shearing Angle:
-
1°30
-
Blade Length (mm):
-
3200 mm
-
Backgauge Travel (mm):
-
20 - 500 mm
-
Throat Depth (mm):
-
250 mm
-
Brand Name:
-
WILACNC
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
5000 KG
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
Clients' requirements
-
Dimension(L*W*H):
-
3840x16101620
-
Year:
-
new
Product Description
Specification
|
item
|
value
|
|
Max. Cutting Width (mm)
|
3200mm
|
|
Max. Cutting Thickness (mm)
|
4mm
|
|
Automatic Level
|
Fully Automatic
|
|
Shearing Angle
|
1°30′
|
|
Blade Length (mm)
|
3200mm
|
|
Backgauge Travel (mm)
|
|
|
Throat Depth (mm)
|
250mm
|
|
Condition
|
New
|
|
Brand Name
|
WILACNC
|
|
Power (kW)
|
5.5kW
|
|
Weight (KG)
|
5000KG
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Voltage
|
Clients' requirements
|
|
Dimension(L*W*H)
|
3840x16101620
|
|
Year
|
new
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Easy to Operate
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining, Advertising Company
|
|
Showroom Location
|
Chile
|
|
Marketing Type
|
Ordinary Product
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Pump
|
|
|
|
Main Features:
1. The front –feeding platform has equipped with ruler for the plate feeding and also smooth in the surface to protect the plate
in any surface hurting when feeding. The ruler can be precision into MM or more unit for accuracy control and checking.
2. The working table has equipped with ball or round bar steel to support the plate into feeding and also the protection for any
surface lacerate.
3. The electronic box been equipped with good certificated components.Mostly we use CE certificated SIEMENS or Schneider
components for exportation machines and also some high quality CCC certificated components to carte for different standard needs
clients.
4. The machine body steel ,we mostly choose China top brand steel plate provider Shanghai BAOSTEEL with good quality and been
treated with anticorrosive paint before the last paint on. So the machine firstly will have good durable usage and also perfect
outside appearance.
5. The blade :The blade material is 9CrSi or 6CrW2Si, the material is high tested material with thousand times for high rigidity
and cutting result. The up blade is rectangle blade with four blade edges which is different from QC12Y Swing Beam shear machine
(The detailed please check SIECC/SIECCTECH blade explain photo and instruction). The blade clearance can be adjusted by manual or
by motor. Both has the index dial to display the clearance so the control and display can be easily. And the up blade shaft use
tilting structure to promote the shearing precision.
6. The machine equipped the press foot to press the plate stably when cutting, the foot has been equipped with plastic surface
with high fraction without surface destroy of the plate. For Hole plate,we will equip square foot for stable square press.
7. Gear Pump: We use good brand “straight conjugate internal gear pump” in both China brand Shanghai chengjie or Germany Eckerler.
The internal gear pump is treated as never wear pump in industry and has been widely used in high precision hydraulic machines
with the character of low-noise, no pulsation and long lifetime. Shanghai Chengjie gear pump also used in China’s aircraft
industry so it is trustable and reliable. When in high speed working, the audio is flat and smooth even no trapping. The long
lifetime is depend on his abrasive performance the inner machine components has oil film protection layer, so even use normal
hydraulic oil, even no abrasion.
8. The hydraulic system can use Germany Rexroth or USA OMG system. The return is controlled by nitrogen return cylinder with
stable working process and easy in operation. The hydraulic press enforced up transmission and nitrogen impose the up push-out
with good cooperation working.(The working principle can revert to SIECC technology drawing of QC11Y and QC12Y)
9. Backgauge are counted by counter and can be micro-adjusted and is motor drived.
10. the machine will be equipped with fence protection door before the cutting blade and the press foot.The fence can be opened if
any needed. Near the throat,we will equipped with open-available door for person security but open-able when needs any inside
checking.
11. Using three bearing rolling track to eliminate rail gap and enhance the shearing quality.(Machine drawing available for
clearly explain)
in any surface hurting when feeding. The ruler can be precision into MM or more unit for accuracy control and checking.
2. The working table has equipped with ball or round bar steel to support the plate into feeding and also the protection for any
surface lacerate.
3. The electronic box been equipped with good certificated components.Mostly we use CE certificated SIEMENS or Schneider
components for exportation machines and also some high quality CCC certificated components to carte for different standard needs
clients.
4. The machine body steel ,we mostly choose China top brand steel plate provider Shanghai BAOSTEEL with good quality and been
treated with anticorrosive paint before the last paint on. So the machine firstly will have good durable usage and also perfect
outside appearance.
5. The blade :The blade material is 9CrSi or 6CrW2Si, the material is high tested material with thousand times for high rigidity
and cutting result. The up blade is rectangle blade with four blade edges which is different from QC12Y Swing Beam shear machine
(The detailed please check SIECC/SIECCTECH blade explain photo and instruction). The blade clearance can be adjusted by manual or
by motor. Both has the index dial to display the clearance so the control and display can be easily. And the up blade shaft use
tilting structure to promote the shearing precision.
6. The machine equipped the press foot to press the plate stably when cutting, the foot has been equipped with plastic surface
with high fraction without surface destroy of the plate. For Hole plate,we will equip square foot for stable square press.
7. Gear Pump: We use good brand “straight conjugate internal gear pump” in both China brand Shanghai chengjie or Germany Eckerler.
The internal gear pump is treated as never wear pump in industry and has been widely used in high precision hydraulic machines
with the character of low-noise, no pulsation and long lifetime. Shanghai Chengjie gear pump also used in China’s aircraft
industry so it is trustable and reliable. When in high speed working, the audio is flat and smooth even no trapping. The long
lifetime is depend on his abrasive performance the inner machine components has oil film protection layer, so even use normal
hydraulic oil, even no abrasion.
8. The hydraulic system can use Germany Rexroth or USA OMG system. The return is controlled by nitrogen return cylinder with
stable working process and easy in operation. The hydraulic press enforced up transmission and nitrogen impose the up push-out
with good cooperation working.(The working principle can revert to SIECC technology drawing of QC11Y and QC12Y)
9. Backgauge are counted by counter and can be micro-adjusted and is motor drived.
10. the machine will be equipped with fence protection door before the cutting blade and the press foot.The fence can be opened if
any needed. Near the throat,we will equipped with open-available door for person security but open-able when needs any inside
checking.
11. Using three bearing rolling track to eliminate rail gap and enhance the shearing quality.(Machine drawing available for
clearly explain)
