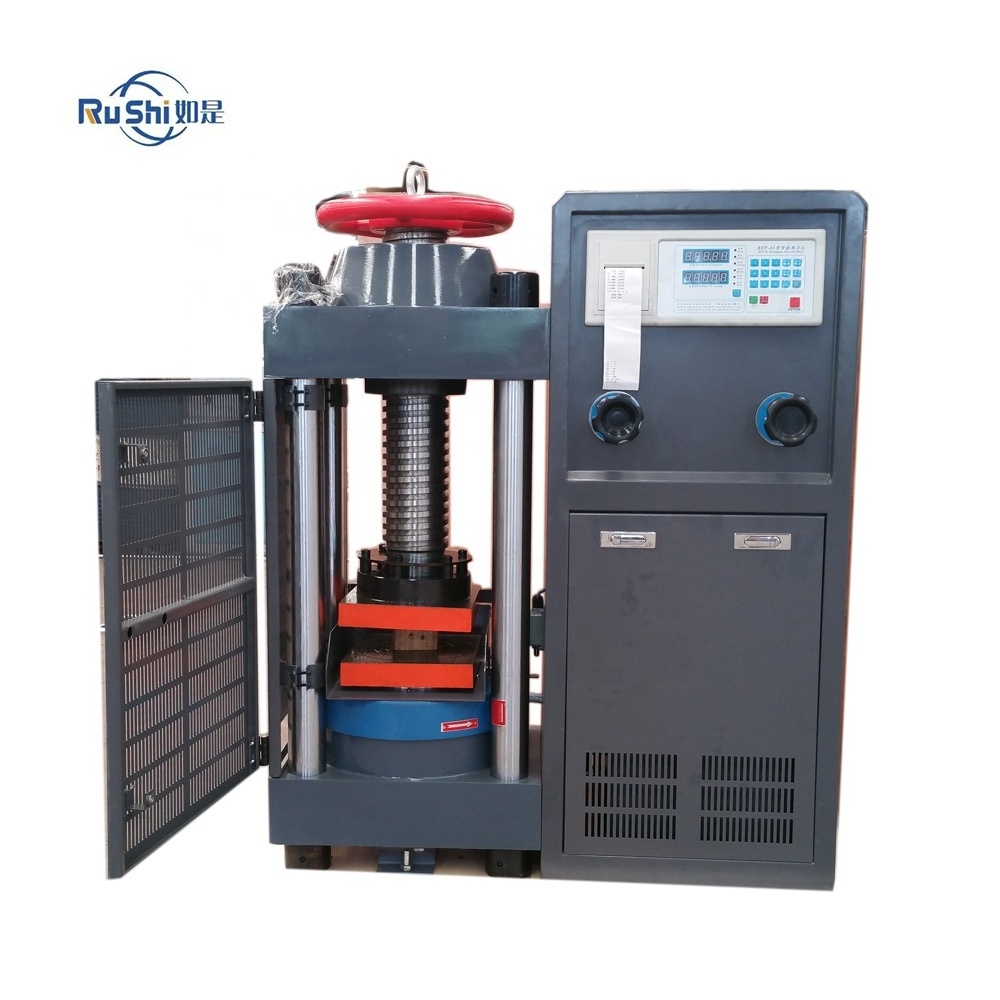

China High Quality 2000kn Concrete Compression Testing Machine

China High Quality 2000kn Concrete Compression Testing Machine

I.compression testing machine features

1.The machine features high precision,stable and convenient performace,reasonable structure
2.Wide and arbitrary adjustabale testing space,with manually adjustable screw lift
3.DYE-3000 A is motor adjustable lift
4.Labor- saving operation and high work efficiency

II.compression testing machine parameter
1. Max load:300KN 500KN 600KN 1000KN 2000kN,3000kN
2.Machine class accuracy: class one
3.Max distance between the upper and lower plate:370mm
4.Piston stroke:0-50mm
5.The size of upper and lower plate:240mmx240mm
6.The power:0.75kw
7.Dimention:900mmx360mmx1250mm
8.Net weight:750kg

III.compression testing machine Operating procedures
1.connect the power cord, select the appropriate gear, press the "set" button, and set up the system. If you do not need to adjust, proceed directly to the next operation.
2.according to the "zero" key zero, put the test parts, alignment center position, and then turn the handwheel, adjust the rod, so that the upper pressure plate from the test parts about 5mm, press "start" key to start the motor.
3.turn off the return valve, slowly open the delivery valve, control the loading according to the required rate until the specimen is cracked.
4.Turn on the return valve, close the delivery valve and remove the test pieces. Put second or third pieces into the same way.
5.Unload the return valve and print all the test contents according to the "print" key. After the test is finished, press the "stop" button to stop the motor and turn off the power supply.
6.When doing the same size test piece, it is better not to rotate the handwheel, so that the piston will fall back freely. This will ensure the accuracy and save tim
7.when the piston exceeds the maximum stroke (about 20mm), close to the switch plays a protective role, the press stops working, then the oil return valve handle should be opened to make the piston drop a distance and then be re tested.
8.During the working process of the tester, if the control system is abnormal, please turn off the power switch directly.
9.the test machine shell must be safely grounded.

1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d.We will give your professional guidance (Product introduction and operation manual) together with product .

2. After Service:
a.One year guarantee for whole machine.
b.24 hours technical support by email
c.If there is any problem found of the machine, we will repair it for free in one year.
d.Honesty to working for you, after or before sale with our patient and sincerit

Our company can also produce the customized testing machines as clients' requirements.
Best service and the best price for you.
