Quick Details
-
Weight:
-
1300 kg
-
Production Capacity:
-
100%
-
Power:
-
2.5kw
-
Dimension(L*W*H):
-
4300x1100x1800
-
product name:
-

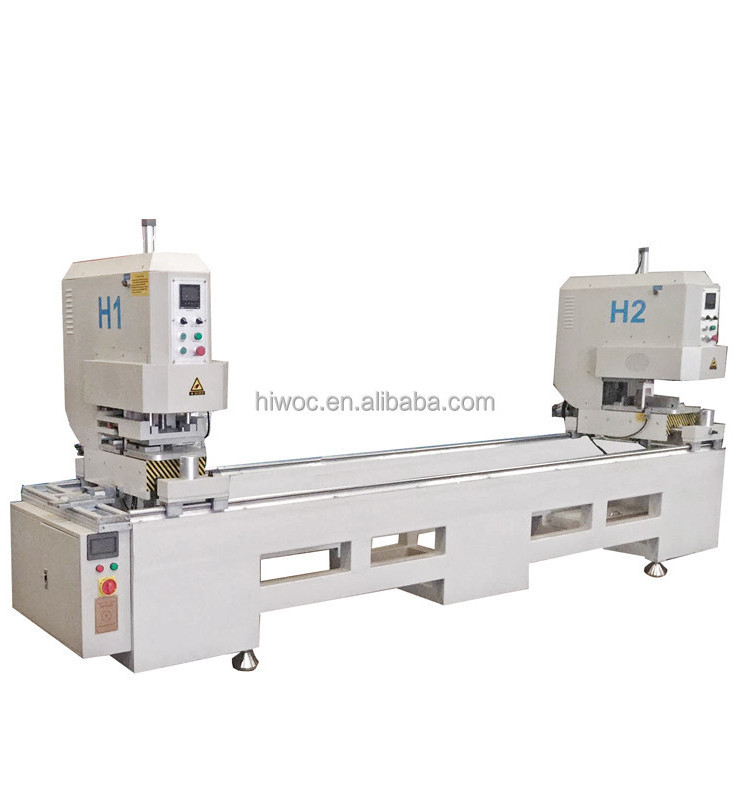

Double head seamless welding machine for doors and windows making
-
Power supply:
-
220V50Hz
-
Air pressure:
-
0.5~0.8Mpa
-
Air consumption:
-
100L/min
-
Input power:
-
2.5kw
-
Welding width:
-
120mm
-
Welding height:
-
120mm
-
Welding range:
-
480-3500mm
-
Place of Origin:
-
Jinan City Shandong Province
-
Color:
-
Optional
-
Certification:
-
CE
Quick Details
-
Marketing Type:
-
Hot sale 2021
-
Brand Name:
-
Hiwoc
-
Voltage:
-
220v 50hz or customized
-
Weight:
-
1300 kg
-
Production Capacity:
-
100%
-
Power:
-
2.5kw
-
Dimension(L*W*H):
-
4300x1100x1800
-
product name:
-
Double head seamless welding machine for doors and windows making
-
Power supply:
-
220V50Hz
-
Air pressure:
-
0.5~0.8Mpa
-
Air consumption:
-
100L/min
-
Input power:
-
2.5kw
-
Welding width:
-
120mm
-
Welding height:
-
120mm
-
Welding range:
-
480-3500mm
-
Place of Origin:
-
Jinan City Shandong Province
-
Color:
-
Optional
-
Certification:
-
CE
Product Overview
FEATURES AT A GLANCE
Feature
1. Welding ⊥L+∠ many kinds shapes combined with each other, and maybe welded to range of arbitrary angle.
2. Two heads can work independently and can also be linked, flexible combination, high work efficiency.
3. Right head could be 30° ~ 180° arbitrary angle welding.
1. Welding ⊥L+∠ many kinds shapes combined with each other, and maybe welded to range of arbitrary angle.
2. Two heads can work independently and can also be linked, flexible combination, high work efficiency.
3. Right head could be 30° ~ 180° arbitrary angle welding.
PRODUCT SPECIFICATIONS
|
Air Pressure
|
0.5~0.8MPa
|
|
Air consumption
|
140L/min
|
|
Input Voltage
|
220V 50~60Hz or As Customer need
|
|
Input Power
|
2.5Kw
|
|
Welding profile height
|
20-120mm
|
|
Welding Width
|
Max 120mm
|
|
Welding range
|
400-3500mm
|
|
Overall size
|
4300×1100×1700mm
|
|
Weight
|
1700kg
|
PRODUCT CONFIGURATION
|
PLC
|
Taiwan Delta
|
|
Solenoid valve
|
STNC
|
|
Cylinder
|
PC(FESTO Joint Venture Brand)
|
|
Air Filter Device
|
Airtec
|
|
Electrical Button and Switcher
|
Schneider and CHINT
|
|
AC Contactor and Circuit Breaker
|
Schneider and CHINT
|
|
Temperature Controller
|
CLD
|
