Quick Details
-
Rated input voltage(KVA):
-
3PH 380V±15%
-
Rated input power(KVA):
-
13.8
-
Rated input current(A):
-
21
-
Rated output:
-
31.5V/350A
-
Output current(A):
-
25-350
-
No-load voltage:
-
96±5
-
Rated duty Cycle% (40℃ 10min):
-
60%--350A(40%);100%--271A
-
Protection grade:
-
IP21
-
Insulation grade:
-
F
-
Certification:
-
CE CCC ROHS
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Dimensions:
-
650*340*890
-
Weight (KG):
-
42 KG
-
Rated input voltage(KVA):
-
3PH 380V±15%
-
Rated input power(KVA):
-
13.8
-
Rated input current(A):
-
21
-
Rated output:
-
31.5V/350A
-
Output current(A):
-
25-350
-
No-load voltage:
-
96±5
-
Rated duty Cycle% (40℃ 10min):
-
60%--350A(40%);100%--271A
-
Protection grade:
-
IP21
-
Insulation grade:
-
F
-
Certification:
-
CE CCC ROHS
Low Price Guaranteed Quality heavy CO2 gas pulse MIG/MAG welding machine P-MIG-350H
1.Product Features:
· Multifunction:Support MIG/MAG,single pulse MIG,double pluse MIG,Lift TIG,MMA,gouing
· IGBT soft-switch technology ,good dynamic characteristics,high reliability and energy saving
· Fully digital control,stable performance and good consistency
· One knob synergic operation,simple and easy to use.Up to 100 sets of user defined programs can be saved
· Special 4T mode is suitablefor metals with good heat conductivity,brings perfect welding performance
· Over current,over voltage,under voltage,over heat,wire blocked protection are available,more reliable and safer
· Power source,water tank and trolley are combined in one,compact and convenient
2.Technical Details:
|
Model |
P-MIG-350H |
|
Input voltage(V) |
3PH AC380V±15% |
|
Input power(KVA) |
13.8 |
|
Input current (A) |
21 |
|
Rated output |
31.5V/350A |
|
Output current(A) |
25-350A |
|
No-load voltage (V) |
96±5 |
|
Duty Cycle% (40℃ 10min) |
350A 60% |
|
271A 100% |
|
|
Efficiency (%) |
80 |
|
Protection grade |
IP21 |
|
Insulation grade |
F |
|
Net weight (KG) |
42 |
|
Gross weight (KG) |
45.5 |
|
Gross weight of WF(KG) |
43.3 |
|
Gross weight of trolley (KG) |
47 |
|
Dimension of trolley package (mm) |
1020*520*360 |
|
Dimension of WF package (mm) |
690*370*460 |
|
Dimension of machine (mm) |
650*340*890 |
|
Dimension of package (mm) |
740*400*910 |

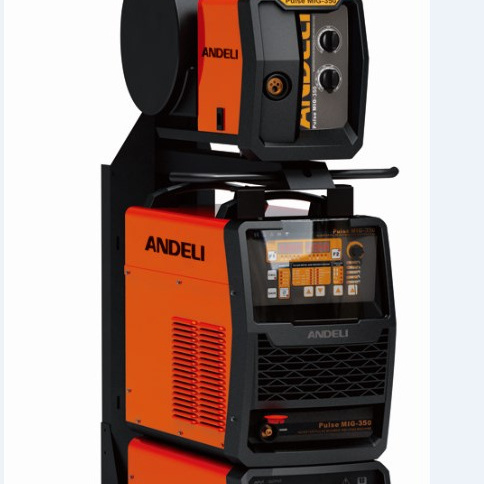

3. Products Show:
4.Purchase Guide:
|
Material |
Sheet thickness (mm) |
Stick diameter (mm) |
Current range(A) |
Model |
|
Carbon steel Stainless steel Low alloy steel |
≥0.8 |
0.8/1.0 |
50-200 |
MIG-200 |
|
≥0.8 |
0.8/1.0 |
50-250 |
MIG-250 |
|
|
≥0.8 |
1.0/1.2 |
60-350 |
MIG-350 |
|
|
≥0.8 |
1.0/1.2/1.6 |
60-500 |
MIG-500 |
|
|
Carbon steel Stainless steel Low alloy steel Aluminum |
≥0.8 |
0.8/1.0 |
5-185A |
MIG-200P |
|
≥0.8 |
2.5/3.2/4.0/5.0 |
25-350 |
MIG-350H |
|
|
≥0.8 |
5.0/6.0/8.0 |
25-500 |
MIG-500H |
5.Performance
6.The warranty period:
1-2 y ear; we will provide free parts for repair and accord freight, and guide for maintenance within a year.
