- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Color:
-
White
-
Material:
-
ABS Plastic
-
Warranty:
-
2 Years

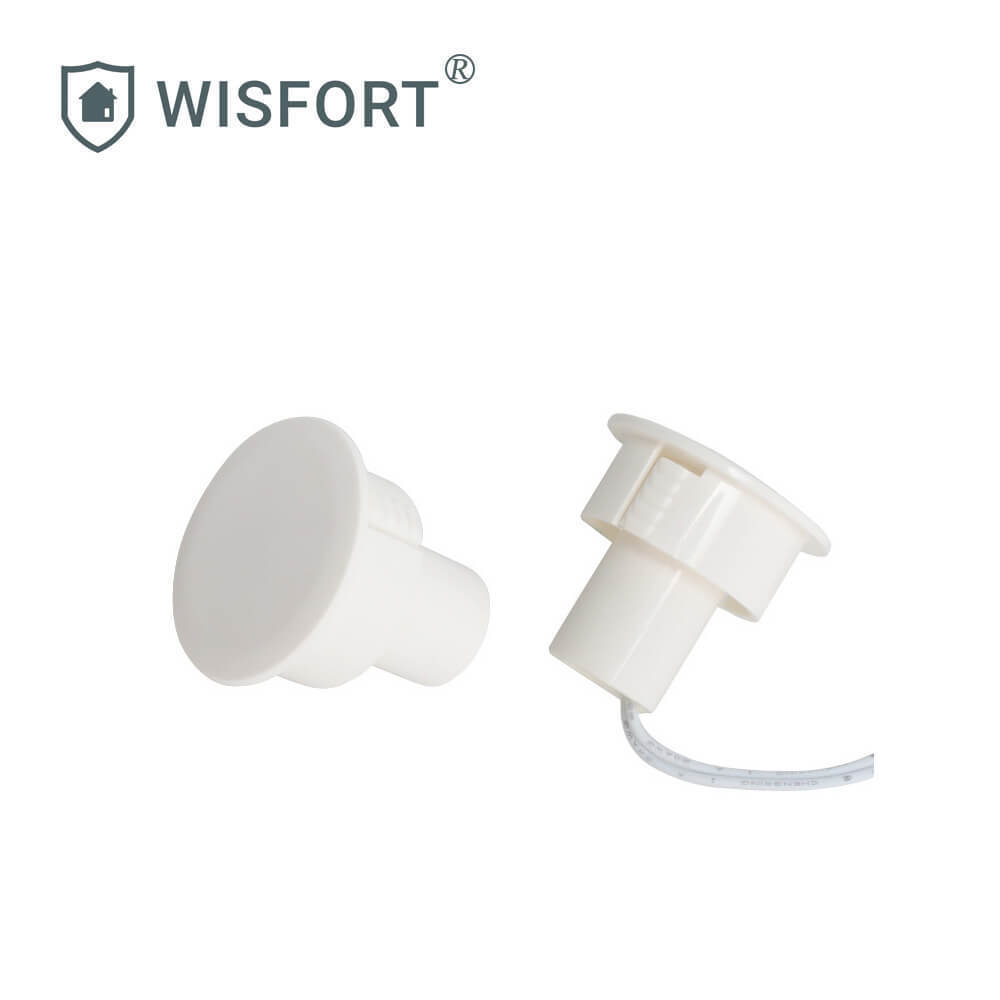

NC & NO Wired Round Door Magnetic Contact Safety Sensor Magnetic Switch
The magnetic switch is mainly composed of a switch and a magnet. The switch part is connected by a reed switch via a lead wire. The magnet part is encapsulated in a plastic or alloy case by a magnet with a corresponding magnetic field strength.
When the two are separated or close to each other After a certain distance, the switch is turned off to sense the change of the magnetic switch position of the object.
Technical Parameters
- Connection method: 300mm positive standard 1007/22AG wire
- Switch form: normally open / normally closed / conversion type
- Sensing distance: 40-45mm
- Material color: ABS white / brown
- Size: 30*29.5mm
- Packing: 10 sets / plastic bags / 200 sets / box, 17KG each set of independent small plastic bags
- Box size: 31*22.5*30.5cm
