Quick Details
-
Weight (KG):
-
1700
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
boevan
-
Product name:
-
small zipper pouch dry fruit candy food packing machine
-
Bag type:
-
Doypack
-
Usage:
-
Soft Pouch Packing
-
Packing speed:
-
40-60bags/min
-
Film material:
-
PE.PET
-
Sealing type:
-
Hot Sealing
-
Machine material:
-
Food Grade SS304
-
Bag size:
-
L)110-250 (W)90-180mm
-
Optional Devices:
-
Data Printer
-
Pouch type:
-
standard doypack
Quick Details
-
Function:
-
FILLING, Laminating, COATING, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch
-
Packaging Material:
-
Wood
-
Weight (KG):
-
1700
-
Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
boevan
-
Product name:
-
small zipper pouch dry fruit candy food packing machine
-
Bag type:
-
Doypack
-
Usage:
-
Soft Pouch Packing
-
Packing speed:
-
40-60bags/min
-
Film material:
-
PE.PET
-
Sealing type:
-
Hot Sealing
-
Machine material:
-
Food Grade SS304
-
Bag size:
-
L)110-250 (W)90-180mm
-
Optional Devices:
-
Data Printer
-
Pouch type:
-
standard doypack

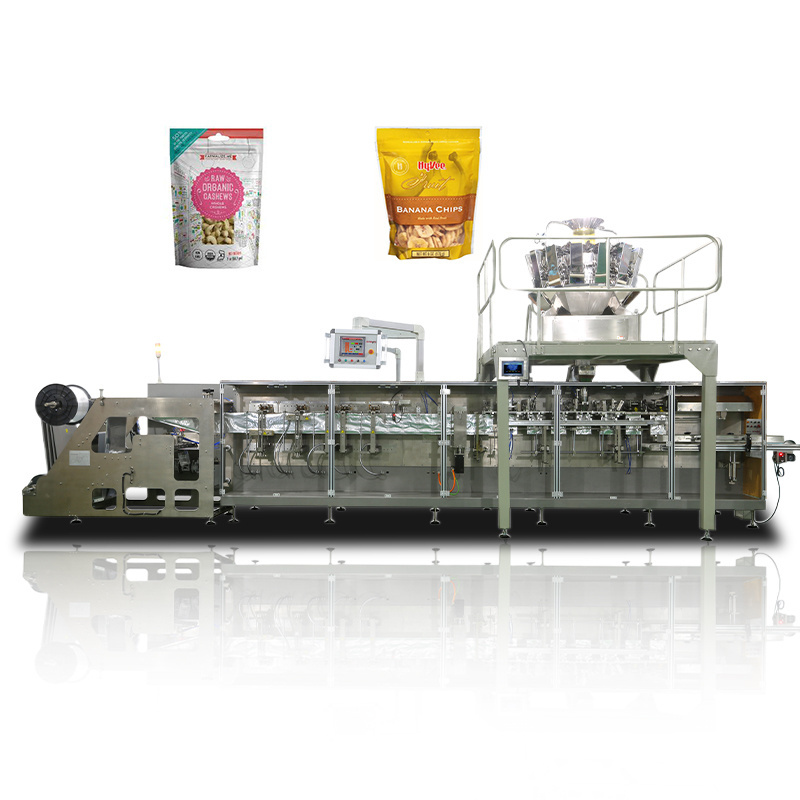

Full automatic horizontal doypack packaging system small zipper pouch dry fruit candy food packing machine
Products Description
Equipped with stable filler, Boevan granule packaging machines could realize high filling accuracy, fast packing speed, easy to operate and adjust. It is widely applied in Pharmaceutical, food, Daily chemical etc. industries all over the world like United State, Europe, Southeast Asia, South Africa etc.with CE certification and tech. Patents.
Process chart and
Pouch example:
1
.Zipper Release
2
.Film Unwind
3
.Bottom Holes Punching
4
.Bag Forming
5
.Film Guide
6
.Horizontal Zipper Seal
7
.Bottom Seal
8
.Vertical Zipper Seal
9
.Vertical Seal I
10
.Vertical Seal II
11
.Tear Notch
12
.Photocell
13
.Servo Advance
14
.Cutting
15
.Pouch Catching
16
.Pouch Opening
17
.Air Flushing
18
.Filling I
19
.Filling II
20
.Pouch Stretching
21
.Top Seal I
22
.Top Seal II
23
.Finished Product
24
.Outlet
Model
|
Pouch width
|
Pouch length
|
Filling capacity
|
Packaging capacity
|
Power
|
BHD-180SZ
|
90-180mm
|
110-250mm
|
1000ml
|
40-60ppm
|
9kw
|
BHD-240SZ
|
100-240mm
|
120-320mm
|
1500ml
|
40-60ppm
|
11kw
|
Machine Features:
1.High precision structure for simple and easy operation and repair.
2.The machine completes the whole procedure of filling,pouching,date printing automatically.
3.Selecte device: zipper bags device ,round pouch hole,pouching device.
4.All the works of bag-forming,weighing, filling, sealing and cutting can be done automatically by this machine.
5.Package material: PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET.
2.The machine completes the whole procedure of filling,pouching,date printing automatically.
3.Selecte device: zipper bags device ,round pouch hole,pouching device.
4.All the works of bag-forming,weighing, filling, sealing and cutting can be done automatically by this machine.
5.Package material: PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET.
1.Easy computerized specification change
2.
Stable pouch advance with less deviation
3.
Big torquemoment of pouch advance, suitable for big volume
1.
Independent zipper unwind device
2.
Stable zipper tensile force control
3.
Even zipper seal
Pouch Sample:
Recommend Products
Our Service
Packaging Solutions
Boevan provides professional packaging and logistic service for your option. With plenty of experience and carefully treatment, we make sure the machinery delivery to you safe and sound.
After-sale Service
Boevan provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period (One Year Warranty); as well as after-sale service of low cost.
Customers & Exhibitions
Company Introduction
Our factory is located at No. 1688 Jinxuan Road, Nanqiao Town, Fengxian District,Shanghai, with convenient transportation and only one hour from the airport. The factory covers an area of 5,000 square meters and has more than 100 employees. It mainly produces horizontal packaging machines and vertical packaging machines.
We have experienced technical team and design team, using advanced European technology to make our products go all over the world. Secondly, our products are of very good quality, with high customer satisfaction and guaranteed after-sales service.
Shanghai BOEVAN Packaging Machinery Co.,Ltd , devoted to be global packaging machinery supplier.Our factory
We proudly introduce to you - our treasured customer - our complete series of packaging machines, you can always find a proper machine. And, don’t forget, we also provide customized machine to suite your special packaging requirements.
We have experienced technical team and design team, using advanced European technology to make our products go all over the world. Secondly, our products are of very good quality, with high customer satisfaction and guaranteed after-sales service.
Shanghai BOEVAN Packaging Machinery Co.,Ltd , devoted to be global packaging machinery supplier.Our factory
We proudly introduce to you - our treasured customer - our complete series of packaging machines, you can always find a proper machine. And, don’t forget, we also provide customized machine to suite your special packaging requirements.
FAQ:
Q1: What kind of bags can your packing machine pack?
A: Our packing machine can pack doypack( stand up pouch) ,pillow bag and sachet( flat bag). Optional function includes adding zipper, spout, making shaped pouch, etc.
Q2: What product can your packing machine pack?
A : Our packing machine can pack different types of product, such as powder, granule, solid and liquid. Also our machine can pack irregular product.
Q3: How long is the delivery time?
A: It depends on which model you required. Standard machine commonly is 45-90 days. Customized machine need more time.
Q4: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q5: Are you trading company or manufacturer ?
A : We are a factory that founded in 2012 year and we have trade team for international service.
