Quick Details
-
Panel Size:
-
192*192mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P3
-
Product name:
-
P3 indoor shenzhen alien led screen special tv video wall
-
Led Lamp:
-
Nationstar Kinglight Kn-light
-
Cabinet material:
-
Die Casting Alunimum
-
Package mode:
-
SMD2121
-
Brightness:
-
1500cd/sqm
-
Working Temperature:
-
45 Degree - +65 Degree
-
Certificate:
-
CE RoHS
-
Warranty:
-
1Year
-
Viewing angle:
-
140/140 Degree
-
Refresh rate:
-
1920-3840Hz
Quick Details
-
Application:
-
indoor
-
Brand Name:
-
Melton
-
Color:
-
RGB
-
Panel Size:
-
192*192mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P3
-
Product name:
-
P3 indoor shenzhen alien led screen special tv video wall
-
Led Lamp:
-
Nationstar Kinglight Kn-light
-
Cabinet material:
-
Die Casting Alunimum
-
Package mode:
-
SMD2121
-
Brightness:
-
1500cd/sqm
-
Working Temperature:
-
45 Degree - +65 Degree
-
Certificate:
-
CE RoHS
-
Warranty:
-
1Year
-
Viewing angle:
-
140/140 Degree
-
Refresh rate:
-
1920-3840Hz
Shenzhen alien led screen special tv video wall indoor p2 P2.5 P3 circular led display Digital sign
LED parameters
| Item | Luminous Intensity | View Angle(H/V) | Wavelength | Test Condition |
| Red LED | 400-420mcd | 160°/120° | 620-625nm | 25 ℃ ,20mA |
| Green LED | 1200-1280mcd | 1 6 0°/1 2 0° | 520-525nm | 25 ℃ ,20mA |
| Blue LED | 190-220mcd | 1 6 0°/1 2 0° | 465-470nm | 25 ℃ ,20mA |
Module Parameters
| Item | Parameter |
|
| Model number | P3-32S | |
| Module size | 192x192mm | |
| Pixel pitch | 3mm | |
| Pixel density | 111111dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Pixel resolution | 64dots(W)*64dots(H) | |
| Max Power | 40W | |
| Module thickness | 12-14mm | |
| Weight | 0.36kg | |
| Drive type | constant drive | |
| scan mode | 1/32scan | |
| Port type | hub75/HUB3.0 | |
| Brightness of white balance |
≥1200cd/m2 |
Screen Parameters
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 270W/ m2 | |
| Max Power consumption |
680W/m2 |
|
| Current |
≤
20mA(single LED)
|
|
| screen size | Diameter of 0.5m 0.6m 0.8m 1m 1.5m 2m Custom size | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency |
≥1920 HZ |
|
| Grey scale/colors | 4096 gray level/16.7M colors | |
| MTBF |
≥10 000hours |
|
| Fire rate | grade one | |
| Display Mode |
≥ 800*600/1024*768 |
|

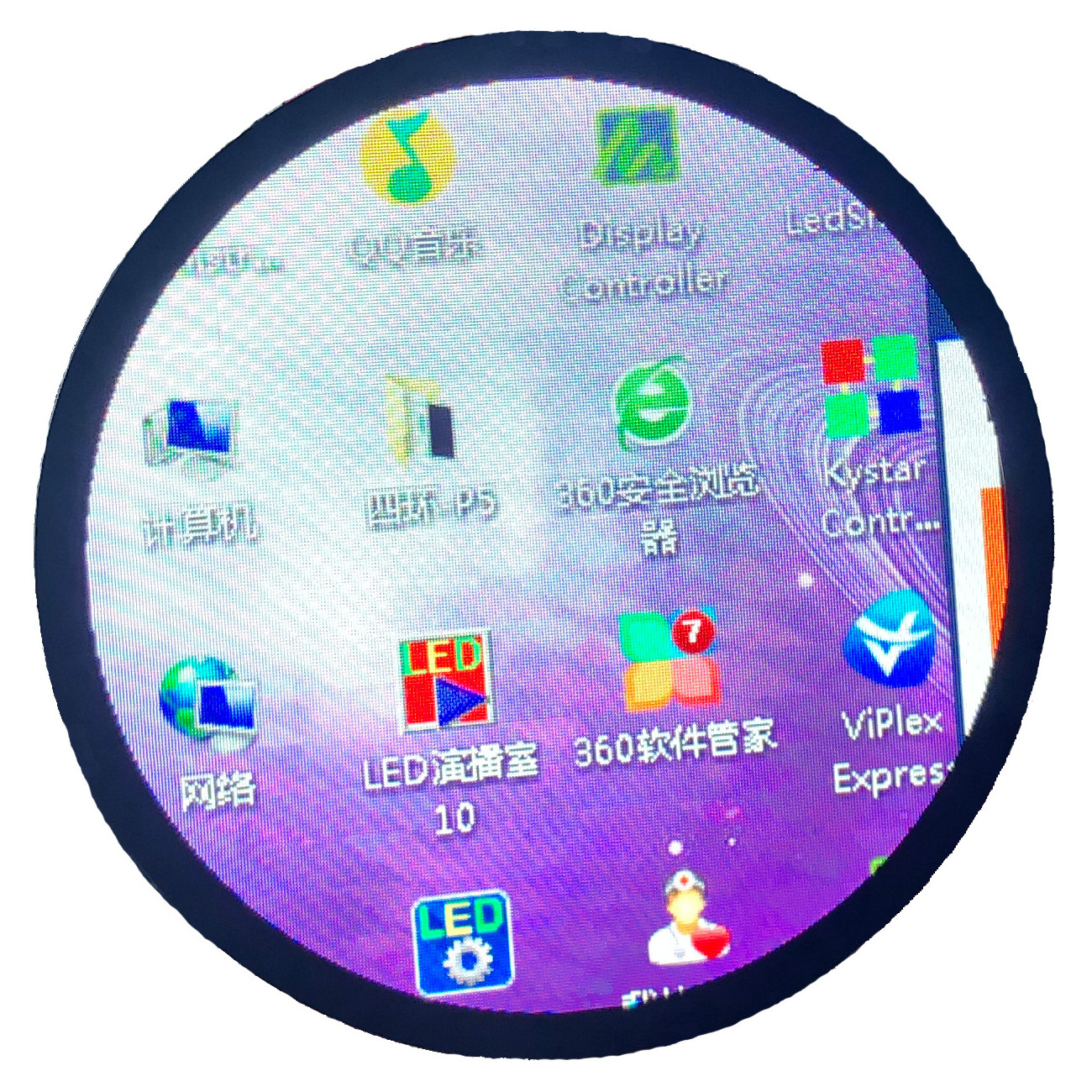

led display screen pictures:
Packaging Detail: 100cm*112cm*71cm G.W.:165KG
Or as customer's request.
Shipping Detail: UPS/Fedex/TNT/DHL, By air, By sea
