Quick Details
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ACUT
-
Voltage:
-
AC380V/50HZ optional
-
Dimension(L*W*H):
-
600*900*120mm
-
Weight (KG):
-
360
-
Model:
-
ACUT-6090 Jewelry cutting machine
-
Working area:
-
600*900mm
-
Spindle:
-
Water Cooling Spindle
-
Spindle speed:
-
0-24000r/min
-
Control system:
-
NcStudio Control System
-
motor and Drive:
-
stepper motor and drive
-
Spindle power:
-
1.5kw/2.2kw/3.0kw optional
-
Cutting Speed:
-
7000mm/min
-
Working Voltage:
-
220V/50HZ optional
-
Color:
-
Black
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ACUT
-
Voltage:
-
AC380V/50HZ optional
-
Dimension(L*W*H):
-
600*900*120mm
-
Weight (KG):
-
360
-
Model:
-
ACUT-6090 Jewelry cutting machine
-
Working area:
-
600*900mm
-
Spindle:
-
Water Cooling Spindle
-
Spindle speed:
-
0-24000r/min
-
Control system:
-
NcStudio Control System
-
motor and Drive:
-
stepper motor and drive
-
Spindle power:
-
1.5kw/2.2kw/3.0kw optional
-
Cutting Speed:
-
7000mm/min
-
Working Voltage:
-
220V/50HZ optional
-
Color:
-
Black
Machine Description & Specifications
Features:
1.Integrally cast lathe bed, solid and stable, without distortion.
2.4 axis transmission with imported ball screws ensures stable and smooth movement of the machine.X and Y axis adopt synchronous belt and wheel transmission enable the machine work with high accuracy.
3.Application of the driver with high definition subdivision ensures fast speed and high accuracy.
4.High power spindle, brushless, water cooling, working vigorously with low noise, guarantees long time mass processing.
5.Humanized design enables easy disassembly of the machine for convenient transportation.

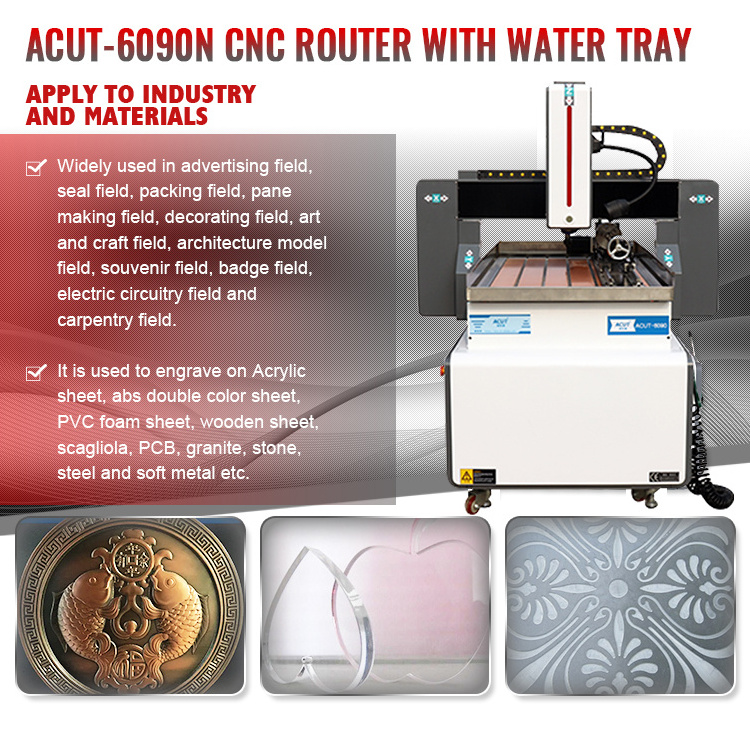

Applications:
1. Wood furniture industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry:advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds.
as well as artificial marble, sand, plastic sheeting, PVC, wooden planks and other non-metal materials.
4. Relief sculpture and 3D carving
5. Cylindrical objects.
1.Integrally cast lathe bed, solid and stable, without distortion.
2.4 axis transmission with imported ball screws ensures stable and smooth movement of the machine.X and Y axis adopt synchronous belt and wheel transmission enable the machine work with high accuracy.
3.Application of the driver with high definition subdivision ensures fast speed and high accuracy.
4.High power spindle, brushless, water cooling, working vigorously with low noise, guarantees long time mass processing.
5.Humanized design enables easy disassembly of the machine for convenient transportation.
Applications:
1. Wood furniture industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry:advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds.
as well as artificial marble, sand, plastic sheeting, PVC, wooden planks and other non-metal materials.
4. Relief sculpture and 3D carving
5. Cylindrical objects.
|
Description and Specifications
|
|
|
|
Model NO.
|
ACUT-6090 cnc router
|
|
|
X, Y, Z Traveling Area
|
600*900*200mm
|
|
|
Work Size
|
600mm*900mm
|
|
|
Packing Dimension
|
1600*1380*1800mm
|
|
|
Package
|
Standard Exporting Wooden Case
|
|
|
Net Weight/Gross Weight
|
360KGS/400KGS
|
|
|
Machine Color
|
Optional
|
|
|
Processing Accuracy
|
±0.03mm
|
|
|
Reposition Accuracy
|
≤0.03mm
|
|
|
Table Structure
|
PVC working table
|
|
|
Lathe Bed Structure
|
Wholly Steel
|
|
|
X Y Transmission
|
Ball screw
|
|
|
Z Transmission
|
Ball Screw
|
|
|
X Y Guide Rail
|
Square Rail
|
|
|
Max. Traveling Speed
|
3-6m/min
|
|
|
Max. Working Speed
|
2-3m/min
|
|
|
Spindle Power
|
2.2/3.2kw water Cooling Spindle
|
|
|
Max. Spindle Speed
|
0-24000RPM
|
|
|
Inverter
|
Fuling Inverter
|
|
|
Driving Mode
|
stepper
|
|
|
Driver Motor
|
stepper Motor
|
|
|
Command Language
|
G Code, HPGL
|
|
|
Control System
|
Nc-studio/DSP/mach 3
|
|
|
Working Voltage
|
AC380V, 50HZ/220V,60Hz
|
|
|
4 axis
|
optional
|
|
|
Interface
|
PCI
|
|
|
Flash Memory
|
128M(U Disk)
|
|
|
Operation Software
|
Artcam, Type3
|
|
1.
The ACUT-6090 series CNC Router machine comes standard with 1.5kw Water cooling spindle. This precision spindle requires no maintenance. Fully programmable speeds from 6000 to 24000 RPM.
2.
Strong machine instructure. It can process hard material such as stone and metal.
3.
Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.
4.
There is a light on the Z axis of our ACUT-6090 CNC Router
5.
The machine has dustproof on X Z axis, which will protect the dust do into the ball screw and the guide rail, to make sure the machine with long service life.
6.
Mach3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC's to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.
Samples:
