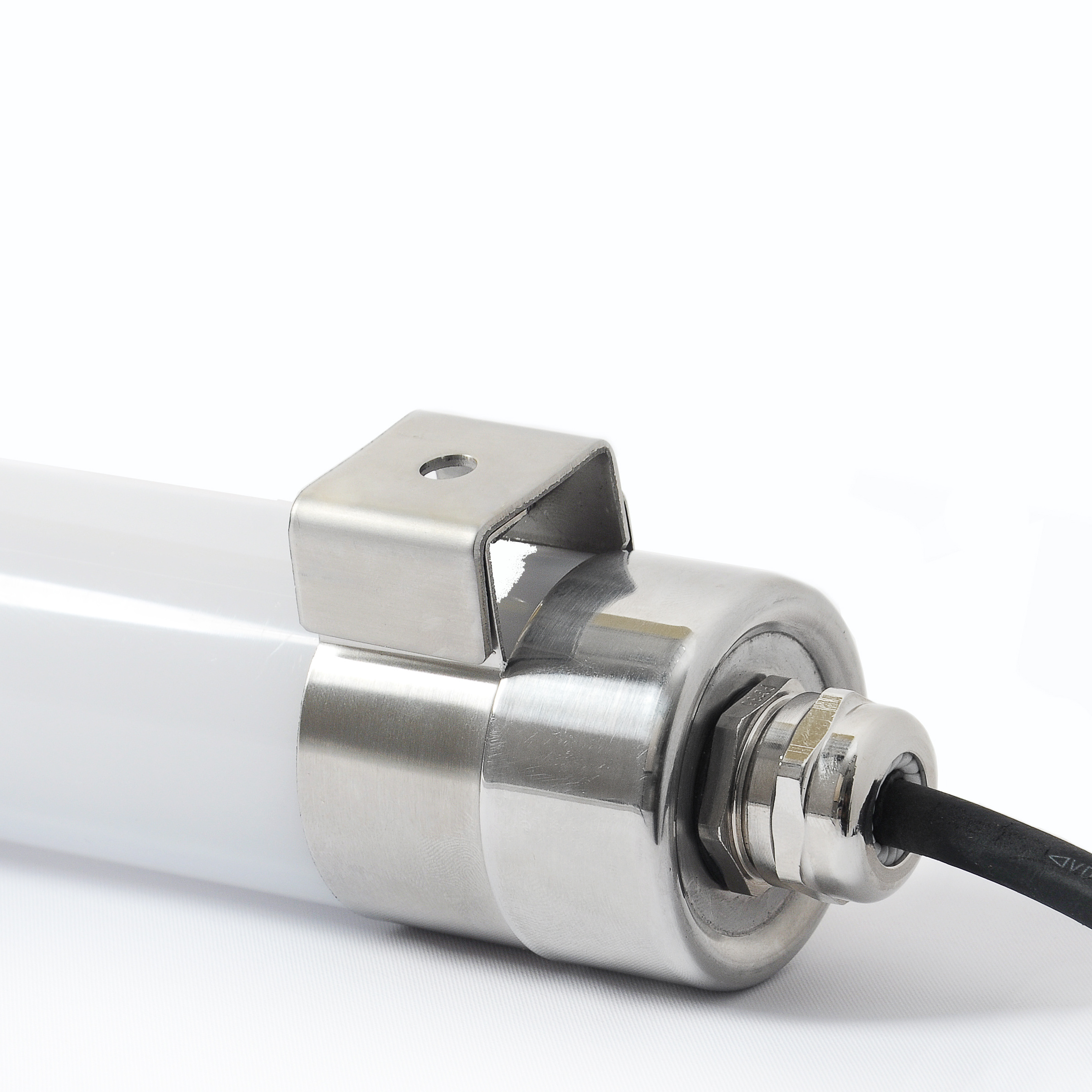

Olamlight Highly Recommended IP67 PC Housing Led Tubular Light For Metro Station

Olamlight Highly Recommended IP67 PC Housing Led Tubular Light For Metro Station

FOB Reference Price: Get Latest Price

≥1 Pieces

US $18

≥100 Pieces

US $17

≥5000 Pieces

US $16

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Office

Input Voltage(V):: AC 220-240V/AC85-277V

Product Weight（kg）:: 2

Model Number:: OL-PL15W-K60-45

Product Name:: LED Tubular Light

LED Tubular Light:: 110lm-130LM/W (Frosted)

LED source:: Edison SMD 2835

Index of protection:: IP67/IK10/IP69K

CRI:: >80Ra,CRI>90Ra for option

Installation:: A.suspension B.surface Mounting

Housing material:: PC/PMMA

Meterial End Cap:: Stainless steel 304L/316L

Power Factor:: >0.95

Working temperature:: -20~50℃

Quick Details

Lamp Luminous Efficiency(lm/w):: 110

Warranty(Year):: 5-Year

Type:: LED Tubular Light

Application:: Office

Input Voltage(V):: AC 220-240V/AC85-277V

Product Weight（kg）:: 2

Model Number:: OL-PL15W-K60-45

Product Name:: LED Tubular Light

LED Tubular Light:: 110lm-130LM/W (Frosted)

LED source:: Edison SMD 2835

Index of protection:: IP67/IK10/IP69K

CRI:: >80Ra,CRI>90Ra for option

Installation:: A.suspension B.surface Mounting

Housing material:: PC/PMMA

Meterial End Cap:: Stainless steel 304L/316L

Power Factor:: >0.95

Working temperature:: -20~50℃

Product Paramenters

About IP69K LED tubular triproof light：

--Capable of withstanding the hot steam wash test as defined in EN 60529 and DIN 40050-9.

--This provides protection against water pressures of 100 bar (1450 psi) and temperature of 80oC.

--The pressure is applied directly to the sensor at progressive angles of 30 degrees (0, 30, 60 and 90 degrees) for 30 seconds at each angle for a total of 120 seconds (2 minutes) to prevent water ingress.

Technical Parameters--Diameter ￠45mm Series
Model	OL-PL15W-K60-45	OL-PL20W-K90-45	OL-PL30W-K120-45	OL-PL40W-K150-45
Power	15W	20W	30W	40W
Luminous flux	1650-1800lm/Opal	2200-2800lm/Opal	3300-40001m/Opal	4400-53001m/Opal
Dimension	L605×￠45mm	L905x￠45mm	L1205x￠45mm	L1505x￠45mm
Input Voltage	AC220-240V/AC100-277V
Power factor(P.F.)	>0.95
Luminous Efficiency	100-110LM/W (Opal)
LED source	Edison SMD 2835, CRI>80Ra,CRl>95Ra for Option
Lamp body color	Opal (Frosted,Milky)
Material End Cap	Stainless steel 304L/316L
Index of protection	IP67/IK10/IP69K
Beam angle	120°
Housing material	PC/PMMA Housing
Working temperature	-20~50°C
Lifetime	50000hrs
Warranty time	3 years,5 years for option
