Quick Details
-
Dimension(L*W*H):
-
230*260*845mm
-
Weight:
-
96 KG
-
Marketing Type:
-
Hot Product 2024
-
Color:
-
Red or OEM
-
Max torque:
-
1878Nm
-
Working pressure:
-
100-170bar
-
Rated oil flow:
-
50-95Lpm
-
Speed range:
-
32-97r/min
-
Cone size:
-
200*370mm
-
Max log diameter:
-
0.5m
-
Hose:
-
Two hoses
Quick Details
-
Use:
-
Split Wood
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KINGER
-
Dimension(L*W*H):
-
230*260*845mm
-
Weight:
-
96 KG
-
Marketing Type:
-
Hot Product 2024
-
Color:
-
Red or OEM
-
Max torque:
-
1878Nm
-
Working pressure:
-
100-170bar
-
Rated oil flow:
-
50-95Lpm
-
Speed range:
-
32-97r/min
-
Cone size:
-
200*370mm
-
Max log diameter:
-
0.5m
-
Hose:
-
Two hoses

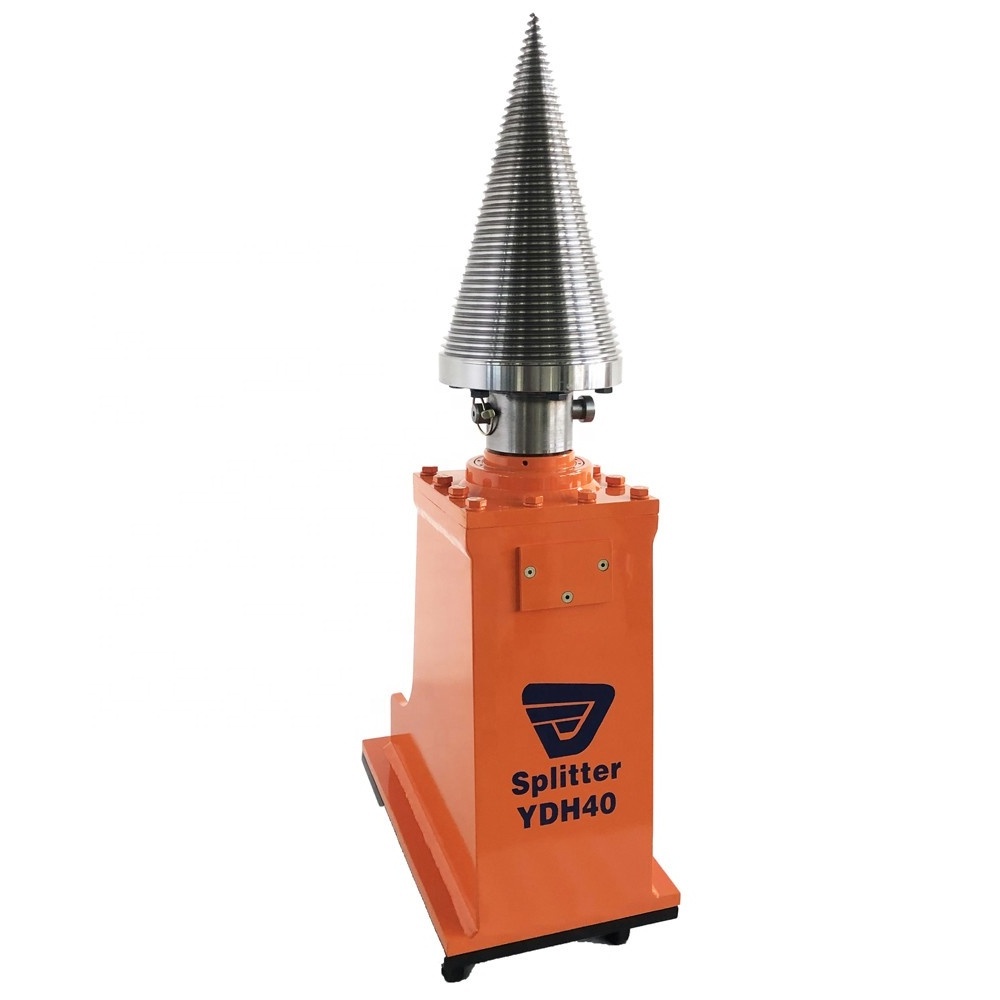

KINGER CONE LOG SPLITTER
________
\\\
________
KINGER CONE LOG SPLITTER is flexible to be mounted on construction machine from 2-30 tonnes excavator, skid steer and backhoe loaders.
Main Features:
1. 9 Heavy Duty Models.
2. Pipes and Hitch (excavator) included.
3. Can be manufactured to fit a full range of machines including excavator, skid steer, backhoe loader and some other hydraulic equipment.
4. Removable hardened cone tip.
5. Save you time and increases your profit!
2. Pipes and Hitch (excavator) included.
3. Can be manufactured to fit a full range of machines including excavator, skid steer, backhoe loader and some other hydraulic equipment.
4. Removable hardened cone tip.
5. Save you time and increases your profit!
KINGER Log Splitter Parameter
|
Model
|
YDH12
|
YDH18
|
YDH40
|
YDH60
|
YDH80
|
|
Applicable(T)
|
2-4
|
3-5
|
3-6
|
5-8
|
6-12
|
|
Pressure(Bar)
|
100-170
|
100-170
|
100-170
|
100-190
|
120-205
|
|
Oil Flow(Lpm)
|
30-70
|
50-95
|
40-75
|
40-90
|
60-100
|
|
Model
|
YDH120
|
YDH150
|
YDH200
|
YDH250
|
|
Applicable(T)
|
10-15
|
12-17
|
16-25
|
17-30
|
|
Pressure(Bar)
|
120-205
|
120-205
|
150-230
|
150-230
|
|
Oil Flow(Lpm)
|
80-150
|
80-150
|
100-150
|
100-150
|
- Surface hardening special treatment with screw cone means it will show hard and sharp performance during logging woods.
- W
arranty: 1
-year warranty for motor and 18-month for gearbox.
- Safer than hand log splitter as usual.
For more details, please send us inquiry :)
Yantai Dongheng Machinery Co., Ltd.
is established in 2010, which is a professional enterprise devoted to R&D,manufacture and sell Earth auger drive, Hydraulic breaker, Log splitter, Saw head, Hedge trimmer, Stump Planer, Tree Shear, Chain Trencher, Concrete Mixer Bucket and other construction, forestry and agricultural machinery and attachments.
Our company has passed ISO9001:2015 and CE certification. We are national high-tech and professional, refined, unique and innovative enterprise. Our company owns plenty of independent intellectual property rights. So far, we have obtained more than 30 patents. That makes Dongheng to be a leading position in the construction, forestry and agricultural machinery industry.
Our product adopts high and new technology, applied with best material and supported by various advanced inspection and testing equipment to make sure the quality stable and performance more excellent.
With more than 14 years manufacturing, sales and after-sales service experience, we have created our own brand "KINGER". Our products have been exported to USA, UK, New Zealand, Ukraine, Germany, Denmark, Russia, recognized by customers all over the world.
Our company has passed ISO9001:2015 and CE certification. We are national high-tech and professional, refined, unique and innovative enterprise. Our company owns plenty of independent intellectual property rights. So far, we have obtained more than 30 patents. That makes Dongheng to be a leading position in the construction, forestry and agricultural machinery industry.
Our product adopts high and new technology, applied with best material and supported by various advanced inspection and testing equipment to make sure the quality stable and performance more excellent.
With more than 14 years manufacturing, sales and after-sales service experience, we have created our own brand "KINGER". Our products have been exported to USA, UK, New Zealand, Ukraine, Germany, Denmark, Russia, recognized by customers all over the world.
Q: Are you trading company or manufacturer?
A: Yes, we are manufacturer.
Q: How long is your delivery time?
Q: How long is your delivery time?
A: It is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but it is not free.
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
Q: If buy your product, can the quality and after-sales service be guaranteed?
A: Yes, you can rest assured that we have our own factory and technical consultants, and you will have a pleasant shopping experience in our company.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but it is not free.
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
Q: If buy your product, can the quality and after-sales service be guaranteed?
A: Yes, you can rest assured that we have our own factory and technical consultants, and you will have a pleasant shopping experience in our company.
