Quick Details
-
Dimensions (L x W x H) (mm):
-
6100*2000*3100mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
FOTON
-
Control system:
-
Remote Control
-
Working height:
-
29m,Customer's Requirement
-
COLOR:
-
Customer's Requirement
-
size:
-
Customer's Requirement
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 6
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support
-
Dimensions (L x W x H) (mm):
-
6100*2000*3100mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
FOTON
-
Control system:
-
Remote Control
-
Working height:
-
29m,Customer's Requirement
-
COLOR:
-
Customer's Requirement
-
size:
-
Customer's Requirement
T he configuration description mainly consists of configuration
|

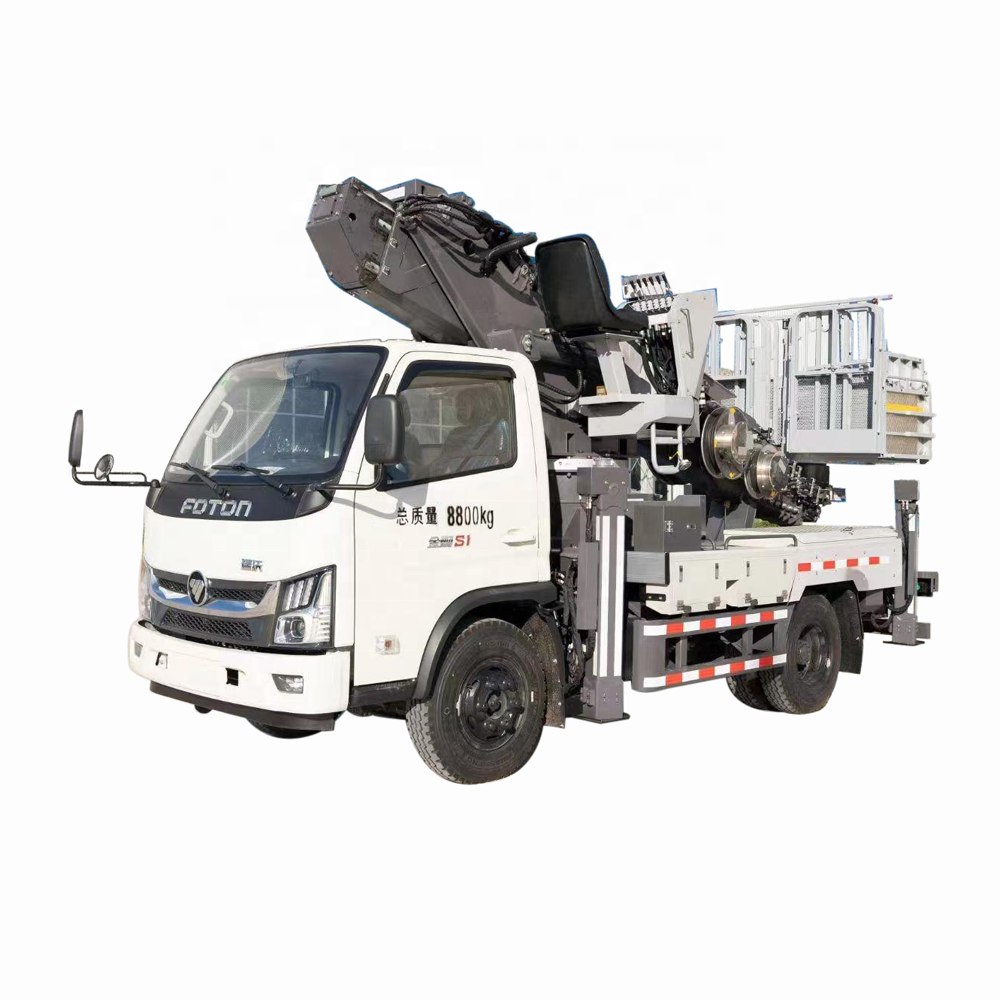

Main components and configurations of Isuzu SCS5042JGKQL6 high-altitude operation vehicle |
|
|
Component Name |
Brief description |
|
chassis |
FOTON II chassis, power steering |
|
|
|
|
Driver's cab |
Single row seat, with 2 passengers allowed, and the driver's cabin equipped with air conditioning and storage systems |
|
Fence and walkway board |
Stainless steel toolbox, aluminum alloy anti slip walkway, stainless steel fence |
|
Power take-off system |
Pneumatic control, gear pump directly connected to power take-off |
|
Work Platform |
one thousand and four hundred × seven hundred × 1100 mm, rated load 200kg, double person steel work platform (expandable to 2 meters) |
|
Arm form |
Six hexagonal arms and five synchronous telescopic arms |
|
Pipeline layout form |
External drum |
|
|
The turntable rotates continuously ± 360 °, and the worktable rotates ± 360 ° |
|
Outrigger |
rear V-shaped, individually adjustable |
|
operation |
Rotary table hydraulic handle operation, standard wireless remote control operation, vehicle hydraulic handle operation, equipped with emergency electric hydraulic pump. |
|
control system |
Load sensitive electro-hydraulic proportional control, achieving stepless speed regulation |
|
Leveling system |
|
Basic functions and safety configuration
|
Basic functional safety configuration high-altitude work vehicle: The work vehicle can achieve high-altitude work with a platform load of 200kg, a maximum working height of 29m, and a maximum working amplitude of 12m for the boom. The work platform is automatically leveled. |
|
|
name |
Brief description |
|
Automatic interlocking device for boarding and alighting |
Used for interlocking boarding and alighting, to prevent danger from accidental operation |
|
Emergency electric hydraulic pump |
When the chassis engine or hydraulic main pump malfunctions, operating the electric pump can send the workers back to the ground |
|
Emergency stop device |
|
|
Spirit level |
Can detect the tilting status of the entire vehicle in both horizontal and vertical directions |
|
Engine ignition and shutdown |
Engine ignition and shutdown control can be performed at both the turntable and remote control |
|
Compound action |
It can freely move in any action group, while achieving extension/contraction, amplitude rise/fall, turntable rotation, and worktable rotation. |
|
Remote control (wireless) |
Can perform wireless remote control operations over a wide range |
