Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Usage::
-
Metal Processing
-
Color:
-
green (or customized)
-
Model:
-
HR3-20A HR3-20B HR4-25A HR4-25B HR4-40A HR4-40B HR5-55A HR5-55B
-
Product name:
-

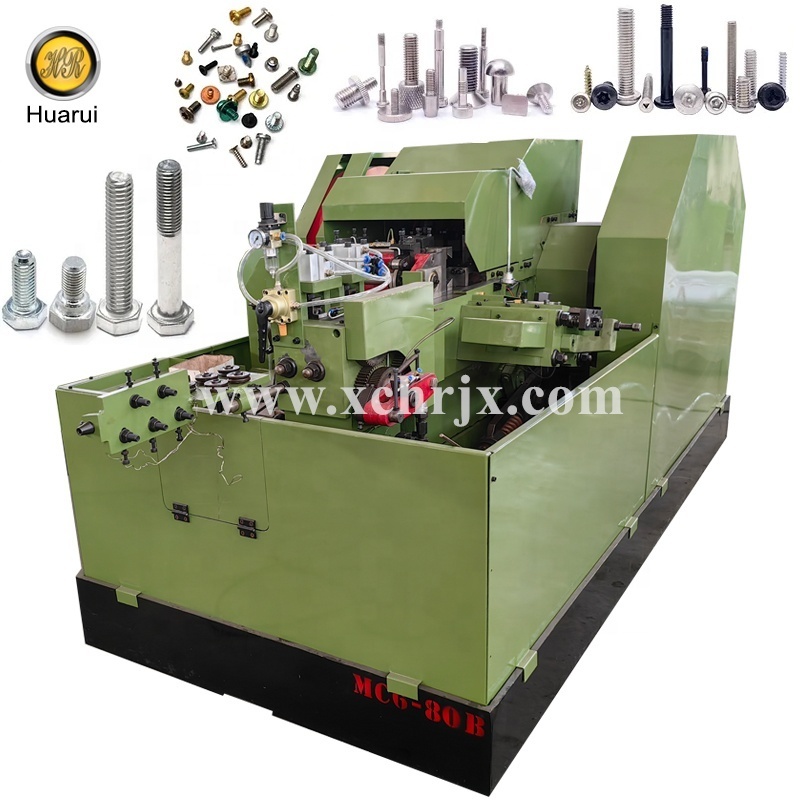

Screw Making Machine
-
Usage:
-
More than 15 years
-
Type:
-
Fully Automatic
-
Speed:
-
20-200pcs/min
-
Power:
-
1.5kw
-
Overall Size:
-
1.6*1*1*2m
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huarui
-
Weight (KG):
-
2100
-
Marketing Type:
-
Hot Product 2022
-
Usage::
-
Metal Processing
-
Color:
-
green (or customized)
-
Model:
-
HR3-20A HR3-20B HR4-25A HR4-25B HR4-40A HR4-40B HR5-55A HR5-55B
-
Product name:
-
Screw Making Machine
-
Usage:
-
More than 15 years
-
Type:
-
Fully Automatic
-
Speed:
-
20-200pcs/min
-
Power:
-
1.5kw
-
Overall Size:
-
1.6*1*1*2m
PRODUCTS DESCRIPTION
MAIN TECHNICAL PARAMETERS
|
3 die 3 blow cold forming machine
|
|
|
|
|
|
|||||
|
Model No.
|
HRBF10B3S
|
HRBF13B3S
|
HRBF17B3S
|
HRBF19B3S
|
HRBF24B3S
|
|||||
|
Forging station
|
3
|
3
|
3
|
3
|
3
|
|||||
|
Max. Cut-off Dia.
|
9mm
|
11mm
|
13mm
|
17mm
|
20mm
|
|||||
|
Max. Cut-off length
|
70mm
|
105mm
|
105mm
|
140mm
|
185mm
|
|||||
|
Max. Product length
|
50mm
|
75mm
|
75mm
|
100mm
|
150mm
|
|||||
|
Max. Kick-out length
|
60mm
|
90mm
|
90mm
|
120mm
|
185mm
|
|||||
|
Max. P.K.O length
|
13mm
|
17mm
|
20mm
|
26mm
|
33mm
|
|||||
|
Cut-off quill(DxL)
|
28x46mm
|
35x56mm
|
40x66mm
|
46x80mm
|
60x100mm
|
|||||
|
Main Die hole (DxL)
|
50x65mm
|
60x105mm
|
70x95mm
|
93x135mm
|
100x195mm
|
|||||
|
Dies pitch
|
60mm
|
87mm
|
93mm
|
114mm
|
126mm
|
|||||
|
Punch hole (DxL)
|
40x80mm
|
45x110mm
|
50x102mm
|
60x120mm
|
75x160mm
|
|||||
|
Ram stroke
|
120mm
|
150mm
|
160mm
|
200mm
|
280mm
|
|||||
|
Forging power
|
28Ton
|
50Ton
|
70Ton
|
90Ton
|
160Ton
|
|||||
|
Max product size
|
M6
|
M8
|
M10
|
M12
|
M16
|
|||||
|
Max out-put
|
300pcs/min
|
240pcs/min
|
210pcs/min
|
170pcs/min
|
120pcs/min
|
|||||
|
Main motor
|
10HP
|
20HP
|
20HP
|
40HP
|
75HP
|
|||||
|
Approximate weight
|
6.5T
|
10T
|
12.5T
|
20T
|
39T
|
|||||
|
|
|
|
|
|
|
|||||
|
Model No.
|
HRBF30B3S
|
HRBF33B3S
|
HRBF36B3S
|
HRBF41B3S
|
HRBF45B3S
|
|||||
|
Forging station
|
3
|
3
|
3
|
3
|
3
|
|||||
|
Max. Cut-off Dia.
|
25mm
|
28mm
|
31mm
|
36mm
|
40mm
|
|||||
|
Max. Cut-off length
|
270mm
|
300mm
|
320mm
|
400mm
|
450mm
|
|||||
|
Max Product length
|
200mm
|
225mm
|
250mm
|
300mm
|
355mm
|
|||||
|
Max. Kick-out length
|
230mm
|
260mm
|
290mm
|
340mm
|
390mm
|
|||||
|
Max. P.K.O length
|
35mm
|
45mm
|
60mm
|
60mm
|
70mm
|
|||||
|
Cut-off quill(DxL)
|
75x120mm
|
84x130mm
|
90x140mm
|
110x140mm
|
115x140mm
|
|||||
|
Main Die hole (DxL)
|
125x240mm
|
140x280mm
|
160x294mm
|
178x385mm
|
195x420mm
|
|||||
|
Dies pitch
|
138mm
|
156mm
|
174mm
|
195mm
|
210mm
|
|||||
|
Punch hole (DxL)
|
90x197mm
|
96x210mm
|
105x232mm
|
120x250mm
|
135x280mm
|
|||||
|
Ram stroke
|
360mm
|
400mm
|
440mm
|
500mm
|
580mm
|
|||||
|
Forging power
|
220Ton
|
260Ton
|
320Ton
|
450Ton
|
600Ton
|
|||||
|
Max product size
|
M20
|
M22
|
M24
|
M27
|
M30
|
|||||
|
Max out-put
|
90pcs/min
|
75pcs/min
|
60pcs/min
|
50pcs/min
|
40-45pcs/min
|
|||||
|
Main motor
|
100HP
|
125HP
|
125HP
|
150HP
|
175HP
|
|||||
|
Approximate weight
|
57T
|
75T
|
92T
|
124T
|
160T
|
|||||
|
4 die 4 blow cold forming machine
|
|
|
|
|
|
|||||
|
Model No.
|
HRBF10B4S
|
HRBF13B4S
|
HRBF17B4S
|
HRBF19B4S
|
HRBF24B4S
|
|||||
|
Forging station
|
4
|
4
|
4
|
4
|
4
|
|||||
|
Max. Cutt-off Dia.
|
9mm
|
11mm
|
13mm
|
17mm
|
20mm
|
|||||
|
Max. Cut-off length
|
70mm
|
105mm
|
135mm
|
140mm
|
185mm
|
|||||
|
Max. Bolt length
|
50mm
|
75mm
|
100mm
|
100mm
|
150mm
|
|||||
|
Max. Kick-out length
|
60mm
|
90mm
|
115mm
|
120mm
|
185mm
|
|||||
|
Max. P.K.O length
|
13mm
|
20mm
|
20mm
|
26mm
|
33mm
|
|||||
|
Cut-off quill(DxL)
|
28x46mm
|
35x56mm
|
40x66mm
|
46x80mm
|
60x100mm
|
|||||
|
Main Die hole (DxL)
|
50x65mm
|
60x105mm
|
70x135mm
|
93x135mm
|
100x195mm
|
|||||
|
Dies pitch
|
60mm
|
87mm
|
93mm
|
114mm
|
126mm
|
|||||
|
Punch hole (DxL)
|
40x80mm
|
45x110mm
|
50x111mm
|
60x120mm
|
75x160mm
|
|||||
|
Ram stroke
|
120mm
|
150mm
|
180mm
|
200mm
|
280mm
|
|||||
|
Forging power
|
40Ton
|
65Ton
|
85Ton
|
120Ton
|
200Ton
|
|||||
|
Max product size
|
M6
|
M8
|
M10
|
M12
|
M16
|
|||||
|
Max out-put
|
300pcs/min
|
240pcs/min
|
200pcs/min
|
170pcs/min
|
120pcs/min
|
|||||
|
Main motor
|
15HP
|
20HP
|
30HP
|
50HP
|
75HP
|
|||||
|
Approximate weight
|
8T
|
12T
|
16T
|
23T
|
45T
|
|||||
|
|
|
|
|
|
|
|||||
|
Model No.
|
HRBF30B4S
|
HRBF33B4S
|
HRBF36B4S
|
HRBF41B4S
|
HRBF45B4S
|
|||||
|
Forging station
|
4
|
4
|
4
|
4
|
4
|
|||||
|
Max. Cutt-off Dia.
|
25mm
|
28mm
|
31mm
|
36mm
|
40mm
|
|||||
|
Max. Cut-off length
|
270mm
|
300mm
|
320mm
|
400mm
|
450mm
|
|||||
|
Max. Bolt length
|
200mm
|
225mm
|
250mm
|
300mm
|
355mm
|
|||||
|
Max. Kick-out length
|
230mm
|
260mm
|
290mm
|
340mm
|
390mm
|
|||||
|
Max. P.K.O length
|
35mm
|
45mm
|
60mm
|
60mm
|
70mm
|
|||||
|
Cut-off quill(DxL)
|
75x120mm
|
84x130mm
|
90x140mm
|
110x140mm
|
115x140mm
|
|||||
|
Main Die hole (DxL)
|
125x240mm
|
145x280mm
|
160x294mm
|
178x385mm
|
195x420mm
|
|||||
|
Dies pitch
|
138mm
|
156mm
|
174mm
|
195mm
|
210mm
|
|||||
|
Punch hole (DxL)
|
90x190mm
|
96x210mm
|
105x232mm
|
120x250mm
|
135x280mm
|
|||||
|
Ram stroke
|
360mm
|
400mm
|
440mm
|
500mm
|
580mm
|
|||||
|
Forging power
|
265Ton
|
320Ton
|
380Ton
|
520Ton
|
635Ton
|
|||||
|
Max product size
|
M20
|
M22
|
M24
|
M27
|
M30
|
|||||
|
Max out-put
|
90pcs/min
|
80pcs/min
|
60pcs/min
|
45pcs/min
|
40-45pcs/min
|
|||||
|
Main motor
|
100HP
|
125HP
|
125HP
|
175HP
|
200HP
|
|||||
|
Approximate weight
|
65T
|
85T
|
108T
|
152T
|
195T
|
|||||
|
6 die 6 blow cold forming machine
|
|
|
|
|
|
|
||||||
|
Model No.
|
HRBF13B6S
|
HRBF17B6S
|
HRBF19B6S
|
HRBF24B6S
|
HRBF30B6S
|
HRBF36B6S
|
||||||
|
Forging station
|
6
|
6
|
6
|
6
|
6
|
6
|
||||||
|
Max. Cutt-off Dia.
|
11mm
|
13mm
|
17mm
|
25mm
|
32mm
|
34mm
|
||||||
|
Max. Cut-off length
|
105mm
|
135mm
|
140mm
|
200mm
|
250mm
|
320mm
|
||||||
|
Max. Kick-out length
|
90mm
|
115mm
|
120mm
|
175mm
|
220mm
|
290mm
|
||||||
|
Max. P.K.O length
|
20mm
|
20mm
|
30mm
|
45mm
|
45mm
|
60mm
|
||||||
|
Cut-off quill(DxL)
|
35x56mm
|
40x66mm
|
46x80mm
|
60x100mm
|
75x120mm
|
90x140mm
|
||||||
|
Main Die hole (DxL)
|
60x105mm
|
70x135mm
|
93x135mm
|
108x195mm
|
125x240mm
|
160x294mm
|
||||||
|
Dies pitch
|
87mm
|
93mm
|
114mm
|
126mm
|
138mm
|
174mm
|
||||||
|
Punch hole (DxL)
|
45x110mm
|
50x111mm
|
60x120mm
|
75x160mm
|
90x190mm
|
105x232mm
|
||||||
|
Ram stroke
|
150mm
|
180mm
|
200mm
|
280mm
|
360mm
|
440mm
|
||||||
|
Forging power
|
95Ton
|
120Ton
|
150Ton
|
260Ton
|
400Ton
|
500Ton
|
||||||
|
Max product size
|
M8x75mm
|
M10x100mm
|
M12x100mm
|
M16x155mm
|
M20x200mm
|
M24x250mm
|
||||||
|
Max out-put
|
150pcs/min
|
130pcs/min
|
110pcs/min
|
90pcs/min
|
65pcs/min
|
50pcs/min
|
||||||
|
Main motor
|
30HP
|
40HP
|
50HP
|
100HP
|
125HP
|
150HP
|
||||||
|
Approximate weight
|
16T
|
22T
|
29T
|
65T
|
85T
|
136T
|
||||||
|
Nut Forming Machine
|
|
|
|
|
|
|
|
|||||||
|
Machine model
|
11B5S/6S
|
14B5S/6S
|
17B5S/6S
|
19B5S/6S
|
24B5S/6S
|
33B5S/6S
|
41B5S/6S
|
|||||||
|
Dies
|
5/6
|
5/6
|
5/6
|
5/6
|
5/6
|
5/6
|
5/6
|
|||||||
|
Forging Power
|
60Ton
|
95Ton
|
120Ton
|
150Ton
|
250Ton
|
400Ton
|
500Ton
|
|||||||
|
Cut-off Dia.
|
11mm
|
16mm
|
18mm
|
20mm
|
24mm
|
32mm
|
38mm
|
|||||||
|
Cut-off Length
|
7mm
|
11mm
|
13mm
|
20mm
|
30mm
|
30mm
|
40mm
|
|||||||
|
Making size
|
M4-M6
|
M8
|
M8-M10
|
M12-M14
|
M14-M18
|
M16-M22
|
M24
|
|||||||
|
Output
|
280pcs/min
|
200pcs/min
|
160pcs/min
|
140pcs/min
|
120pcs/min
|
100pcs/min
|
65pcs/min
|
|||||||
|
Slide Ram
|
50mm
|
70mm
|
80mm
|
100mm
|
110mm
|
160mm
|
200mm
|
|||||||
|
Kick-out length
|
11mm
|
18mm
|
20mm
|
30mm
|
35mm
|
40mm
|
50mm
|
|||||||
|
Dies pitch
|
50mm
|
60mm
|
70mm
|
80mm
|
100mm
|
140mm
|
165mm
|
|||||||
|
Main motor
|
11kw
|
15kw
|
18.5kw
|
37kw
|
55kw
|
75kw
|
160kw
|
|||||||
|
Lubricant motor
|
1.5kw
|
1.5kw
|
3kw
|
3kw
|
3kw
|
3kw
|
3.3kw
|
|||||||
|
Lubricant oil
|
540L
|
720L
|
900L
|
1080L
|
1440L
|
1800L
|
2700L
|
|||||||
|
Weight
|
4ton
|
8.5ton
|
10ton
|
17ton
|
25ton
|
48ton
|
65ton
|
|||||||
|
Dimension
|
2.15*1.55*1.06M
|
2.8*2.05*1.3M
|
3.67*2.0*1.4M
|
4.0*2.45*1.45M
|
5.0*3.0*1.7M
|
6.0*3.2*1.8M
|
7.4*4.5*2.35M
|
|||||||
FACTORY WAREHOUSE
PHOTO WITH OUR CLIENTS
SHIPMENT PICTURES
COMPANY OVERVIEW
Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in R&D and manufactures nail making machines, waste tire recycling machines and auxiliary equipment. After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company
CE CERTIFICATE
1. Two-year guarranty.
2. If quality problems happen within guarantee period, our company will repair for free.
3. 100% test and adjust the machine before delivery, and production pictures will be sent to clients, to help them know the machines better.
4. Additionally, our company provides technical support and fittings for life.
5. After-sales service is available any time.
6. If needed, our technician is available overseas to help you.
2. If quality problems happen within guarantee period, our company will repair for free.
3. 100% test and adjust the machine before delivery, and production pictures will be sent to clients, to help them know the machines better.
4. Additionally, our company provides technical support and fittings for life.
5. After-sales service is available any time.
6. If needed, our technician is available overseas to help you.
FOQ
A1. We have more than more than 30 years experience in producing high quality nail making machines and we can provide a reasonable nail production line according to customers' demand.
Q2. Are you trading company or manufacturer?
A2. We are manufacturer with nearly 30 years experience. and 13 years exporting experiences.
Q3. Have you exported your machines to overseas market?
A3. Yes, we have exported our machines to Uzbekistan, Kyrgyzstan, Kazakhstan, Indonesia, Russia, Egypt, India, Viet Nam, Thailand,Pakistan, Algeria and so on.
Q4. Is there any quality warranty ?
A4. Yes, the warranty of mechanical portion of the equipment shall be 2 years.
Q5. How to choose the machines?
A5. Please tell us the nail size and type that you want to produce, we will recommend the most suitable machine models to you.
Q6. What's the delivery time?
A7. It is depending on your order quantity, usually we aim to deliver your order within 30 days.
Q7. How do you pack the machines?
A8. Wrapped film packing in full container. Wooden Frame or Wooden Case packing in LCL.
Q8. What's your payment terms?
A9. 40% TT deposit before production, 60% TT balance before shipment.
Q9. What is your MOQ ?
A10. 1 set of any machine model.
