Quick Details
-
Interface Standard:
-
Sae J1772
-
Output Current:
-
16A
-
Output Power:
-
3.5kw
-
Input Voltage:
-
AC240V
-
Product name:
-

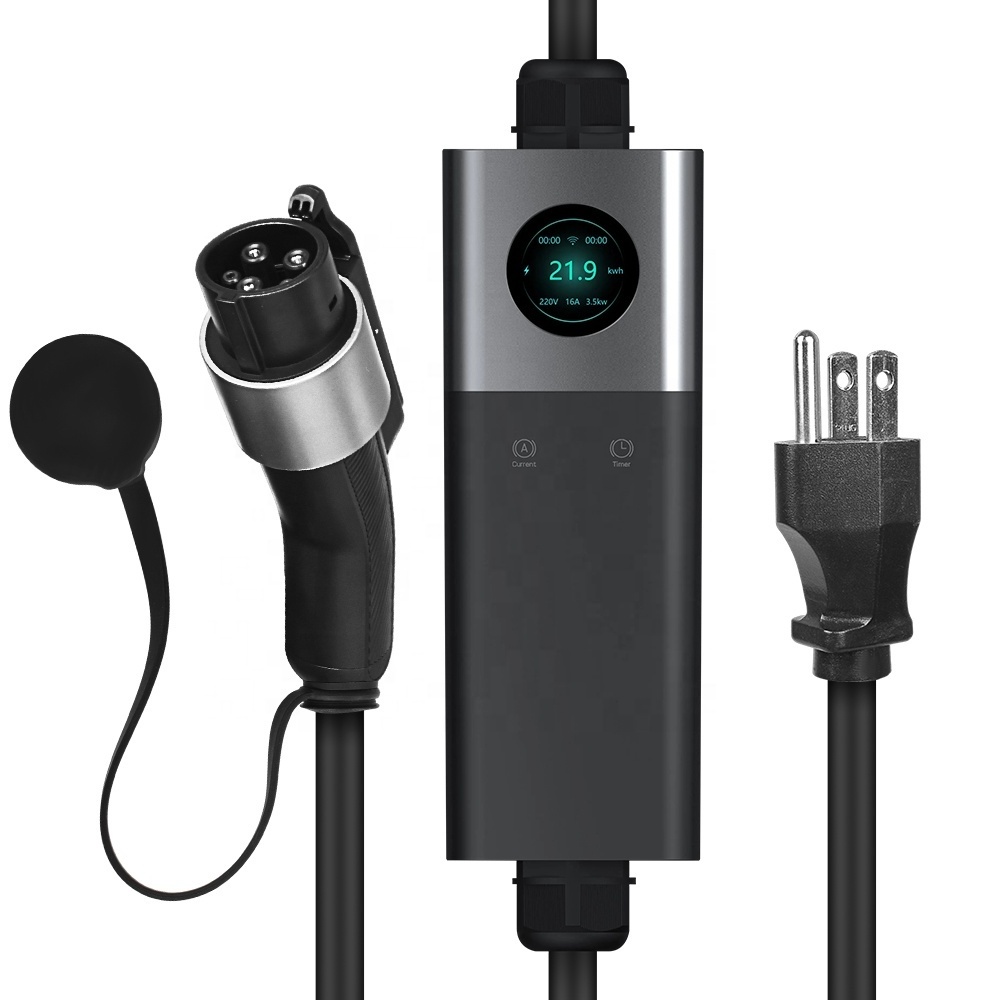

Portable EV Charger/Wall mounted
-
Display:
-
2.8 "LED
-
Input current:
-
AC240V
-
oEM Optional:
-
WIFI+ Bluetooth +APP
-
Power Supply:
-
(L1+L2+PE)
-
Cale length:
-
5M/16.4ft
-
Frequency:
-
50/60Hz
-
Protection level:
-
IP66
-
RCD:
-
ccid20
-
Wide pressure:
-
180V~280V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
CC1557-Type 1
-
Brand Name:
-
PECHAM
-
Interface Standard:
-
Sae J1772
-
Output Current:
-
16A
-
Output Power:
-
3.5kw
-
Input Voltage:
-
AC240V
-
Product name:
-
Portable EV Charger/Wall mounted
-
Display:
-
2.8 "LED
-
Input current:
-
AC240V
-
oEM Optional:
-
WIFI+ Bluetooth +APP
-
Power Supply:
-
(L1+L2+PE)
-
Cale length:
-
5M/16.4ft
-
Frequency:
-
50/60Hz
-
Protection level:
-
IP66
-
RCD:
-
ccid20
-
Wide pressure:
-
180V~280V
Popular New Design
New Energy Vehicle
Portable Ev Charger
Power ":3.5/7kw/11kw/22kw
Interface ":Type 1/Type 2/Gbt/Tesla
Products Description
① Fast Charging:EV Charger Level 2 with 240V output,9x faster charging,up to 22KW/40A, depending on EV model and breaker size.
②TWO MODELS:Controller bracket makes it a convenient garage wall-mounted EV charger, NEMA 14-50 plug/16.4 ft. cable for maximum flexibility of use. Compact size and storage pouch allows for charging your EV anywhere, anytime.
③ SMART CONTROL:LED screen clearly displays amperage, charging speed, input voltage, delay time and safe charging. You can also download our APP for online current adjustment and charging appointment via WiFi/Bluetooth, optional "Instant Charge" and "Timed Charge" functions allow the vehicle to be charged during off-peak hours to save on electricity costs. View charging cost, history, full charge notification, track charging status and adjust current before charging and more.
④ PERFECT SYSTEM PROTECTION FUNCTION:over-voltage protection, under-voltage protection, over-current protection, short-circuit protection, leakage protection, over-temperature protection, lightning protection, safe and reliable product operation. The structure of the whole machine adopts rainproof and dustproof design, the protection level reaches IP54, indoor and outdoor portable design, the use of a wide range of flexible environments, and is more suitable for most of the electric car J1772 and Tesla charger.
⑤ SAFE AND RELIABLE: The EV charger is IP66 waterproof and IK10 certified and can be used indoors or outdoors in all weather conditions including snow, rain, hail etc.
⑥ PERFECT SERVICE: 2 years warranty and 24/7 lifetime technical support，we provide 2 years warranty, app automatic update and lifetime technical support for all orders!
⑦Overvoltage protection, UNDERvoltage protection, grounding protection, lightning protection, leakage protection, flame retardantprotection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input turn-off protection, car level protection vehicle and protection person.
②TWO MODELS:Controller bracket makes it a convenient garage wall-mounted EV charger, NEMA 14-50 plug/16.4 ft. cable for maximum flexibility of use. Compact size and storage pouch allows for charging your EV anywhere, anytime.
③ SMART CONTROL:LED screen clearly displays amperage, charging speed, input voltage, delay time and safe charging. You can also download our APP for online current adjustment and charging appointment via WiFi/Bluetooth, optional "Instant Charge" and "Timed Charge" functions allow the vehicle to be charged during off-peak hours to save on electricity costs. View charging cost, history, full charge notification, track charging status and adjust current before charging and more.
④ PERFECT SYSTEM PROTECTION FUNCTION:over-voltage protection, under-voltage protection, over-current protection, short-circuit protection, leakage protection, over-temperature protection, lightning protection, safe and reliable product operation. The structure of the whole machine adopts rainproof and dustproof design, the protection level reaches IP54, indoor and outdoor portable design, the use of a wide range of flexible environments, and is more suitable for most of the electric car J1772 and Tesla charger.
⑤ SAFE AND RELIABLE: The EV charger is IP66 waterproof and IK10 certified and can be used indoors or outdoors in all weather conditions including snow, rain, hail etc.
⑥ PERFECT SERVICE: 2 years warranty and 24/7 lifetime technical support，we provide 2 years warranty, app automatic update and lifetime technical support for all orders!
⑦Overvoltage protection, UNDERvoltage protection, grounding protection, lightning protection, leakage protection, flame retardantprotection, overcurrent protection, intelligent temperature control protection, relay adhesion protection, input turn-off protection, car level protection vehicle and protection person.
|
|
GBT
|
Type 1
|
Type 2
|
|||
|
Power supply:
|
L+N+PE
|
L1+L2+PE
|
L+N+PE
|
|||
|
Rated voltage:
|
AC220V
|
AC 240v
|
Single phase 230V
|
|||
|
Rated current:
|
Max 16A
|
Max 16A
|
Max 16A
|
|||
|
Frequency:
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|||
|
Output current:
|
6A-16A
|
6A-16A
|
6A-16A
|
|||
|
Rated power:
|
3.5kw
|
3.5kw
|
3.5kw
|
|||
|
Cable length:
|
5M
|
5M
|
5M
|
|||
|
Charging Mode:
|
Plug and charge, charge by appointment (manual or app), power off by appointment (app only)
|
Plug-and-Play. Schedulable Charging Schedulable power-off
|
Plug-and-Play、schedulable charging、schedulable power-off
|
|||
|
Display mode:
|
LED
|
LED
|
LED
|
|||
|
App+Wifi+Bluetooth:
|
Optional
|
Optional
|
Optional
|
|||
|
RCD:
|
A
|
ccid20
|
TypeA+DC6mA
|
|||
|
Optional:4G. wifi/Bluetooth. RJ45. RFID Reader. Cable per meter.Plug holder, Pole-mount
|
|
|
|
|||
