Quick Details
-
Filling Accuracy:
-
100
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
NC
-
Dimension(L*W*H):
-
880*760*1800mm
-
Weight:
-
380 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Canada, United States, Viet Nam, Thailand, Malaysia, Australia, Kenya, Bangladesh
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
100
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
NC
-
Dimension(L*W*H):
-
880*760*1800mm
-
Weight:
-
380 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Canada, United States, Viet Nam, Thailand, Malaysia, Australia, Kenya, Bangladesh
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE

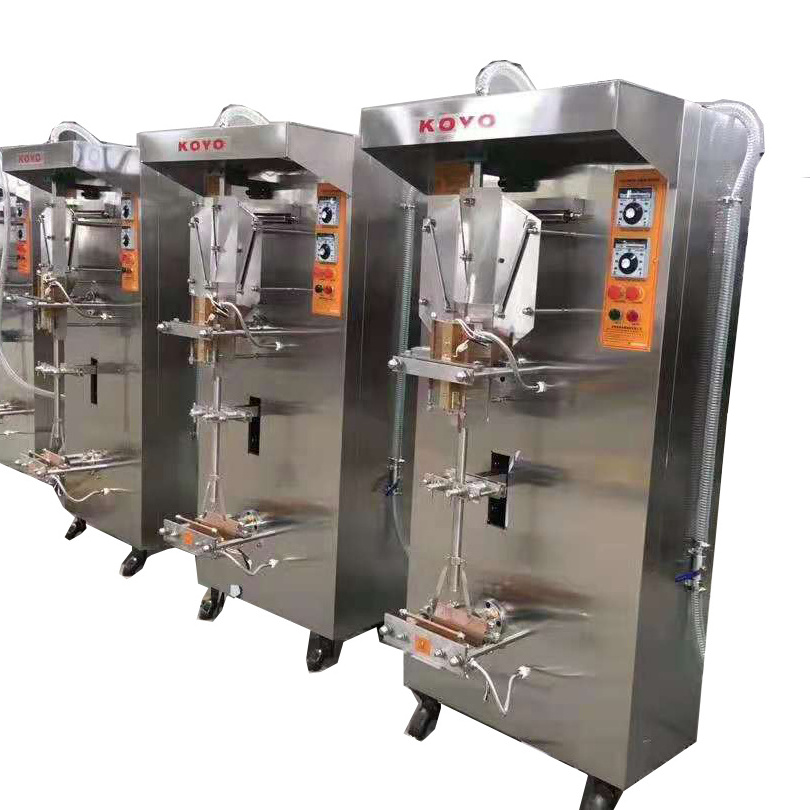

Automatic KOYO Liquid Packing Machine 1. Liquid packing machine 2.Weight:410kgs 3. Filling Range: 2100~2200b/h
Automatic KOYO Liquid Packing Machine Main Parameters:
This machine widely used to pack milk,soybean milk,sauce,vinegar,yellow wine,all kind of drink with film. The whole process can be accomplished automatically, such as ultraviolet sterilization,bag figuration,date printing,quantitative filling,enveloping,cutting,counting, and so on. The temperature of heat-sealing is controlled automatically, the production is beauty and fastness, the machine adopts stainless steel shell, and the sanitation is guaranteed.it can with glasses cover, ribbon coder
Specifications:
|
Model |
KOYO-1000 |
|
Filling range |
50~600ml |
|
Production Capacity |
2000-2200pcs/h |
|
The length of finished pouch |
50-150mm |
|
The width of finished pouch |
40-150mm |
|
Packing film width |
100-320mm |
|
Power |
1.2KW |
|
Overall Dimension |
980×760×1800 mm |
|
Weight |
315kg |
|
Voltage |
220v/50hz 380v/3 phase/50hz If voltage is different with this need customized, the cost is a bit higher |
Parts configuration
|
Motor |
LETIAN |
|
Reducer box |
Hangzhou Jiepai |
|
Temperature controller |
Yueqing Yili |
1.Provide for equipment inspection certificate and manual, to ensure that users properly install and use.
2.Equipment to reach the destination, the company will send engineers to guide installation and
commissioning and customer training until satisfied.
3. The warranty period will be free to customers wearing accessories, after one year warranty period, our
company to provide parts at cost.
4.we provide lifelong maintenance service, including if necessary, to send engineers to the customer at the
service.
