Quick Details
-
Dimension(L*W*H):
-
530*589*632mm
-
Weight:
-
45kg
-
Working range:
-
300*300*100mm
-
Maximum Load:
-
X/Y : 10kg Z:5kg
-
Motor:
-
Stepper motor
-
Standard:
-
CE
-
Repeatability:
-
±0.02mm
-
Axis:
-
3 axis
-
Function:
-

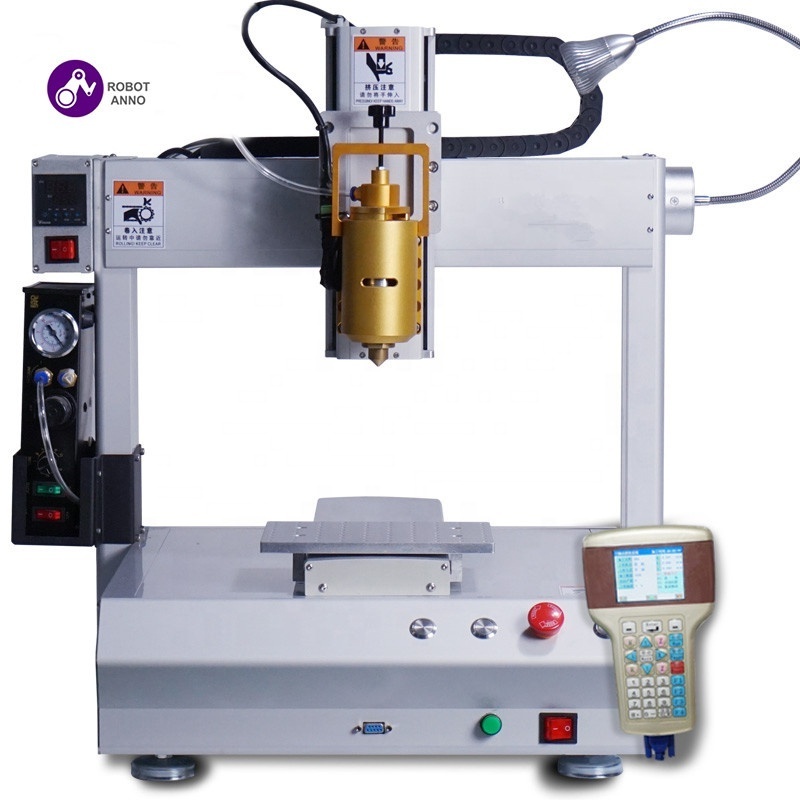

Hot Melt Glue Dispensing Robot
-
Product name:
-
Hot Melt Glue Dispensing machine
-
Certification:
-
CE
Quick Details
-
Voltage:
-
110V 220V 50-60Hz 350W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RobotAnno
-
Dimension(L*W*H):
-
530*589*632mm
-
Weight:
-
45kg
-
Working range:
-
300*300*100mm
-
Maximum Load:
-
X/Y : 10kg Z:5kg
-
Motor:
-
Stepper motor
-
Standard:
-
CE
-
Repeatability:
-
±0.02mm
-
Axis:
-
3 axis
-
Function:
-
Hot Melt Glue Dispensing Robot
-
Product name:
-
Hot Melt Glue Dispensing machine
-
Certification:
-
CE
Product Description
Specification
|
Model
|
PUR331
|
|
Working range(mm)
|
300/300/100
|
|
Programmatic ally
|
Import teaching programming or graphics
|
|
Can move the graph track
|
Point, line, arc, circle, cure, multiple lines, spiral, ellipse
|
|
Control System
|
Single chip + hand box control
|
|
Dispensing head
|
PUR dispensing head/PUH dispensing head
|
|
Dispensing cylinder
|
30ml or 50ml
|
|
Minimum discharge
|
0.01ml
|
|
The glue frequency
|
5Time/SEC
|
|
Load
|
10KG
|
|
Axial dynamic speed X/Y/Z(mm/sec)
|
0-600mm/sec
|
|
Repeatability(mm)
|
±0.02mm
|
|
Program record mode
|
At least 100,5000 points each
|
|
Display mode
|
LCD Teaching box
|
|
Motor system
|
stepper motor
|
|
Guide
|
Taiwan upper silver linear guide
|
|
Wire rod
|
Taiwan TBI silver bar
|
|
Belt
|
Italy synchronous belt
|
|
Motion filling function
|
3 Axis
|
|
Input power
|
AC110V~ 220V
|
|
External control interface
|
RS232
|
|
Motor control shaft number
|
3 Axis
|
|
Outline size(mm)
|
530*589*632mm
|
|
Weight(KG)
|
45KG
|
Detailed Images
VARIOUS DISPENSING HEAD
It can be choose according your needs
HAND TEACH PENDANT
Easy programming
TENPERATURE C
O
NTRO
LLER
Adjust the temperature according to the requirements of the dispensing process
JANPAN STEPPER MOTOR
ITALY TALY LARTEY SYNCHRONOUS BELT
MINGWEI POWER
TAIWAN AIRTAC TYPE SOLENOID VALVE
Main Applications
Recommend Products
Picking&Shipping
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
