Quick Details
-
Brand Name:
-
EVERGOOD
-
Model Number:
-
WSUB1G
-
is_customized:
-
Yes
Quick Details
-
Type:
-
Digital Spectrum Analyzer
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EVERGOOD
-
Model Number:
-
WSUB1G
-
is_customized:
-
Yes
Osciloscopio Scopemeter RF Explorer Handheld Digital Spectrum Analyzer Analyser 2.4G Pocket
RF Explorer Model USB Digital Spectrum Logic Analyzer Oscilloscope 112KHz-100MHz WSUB1G Handheld Digital Spectrum Analyzer
Introduction:

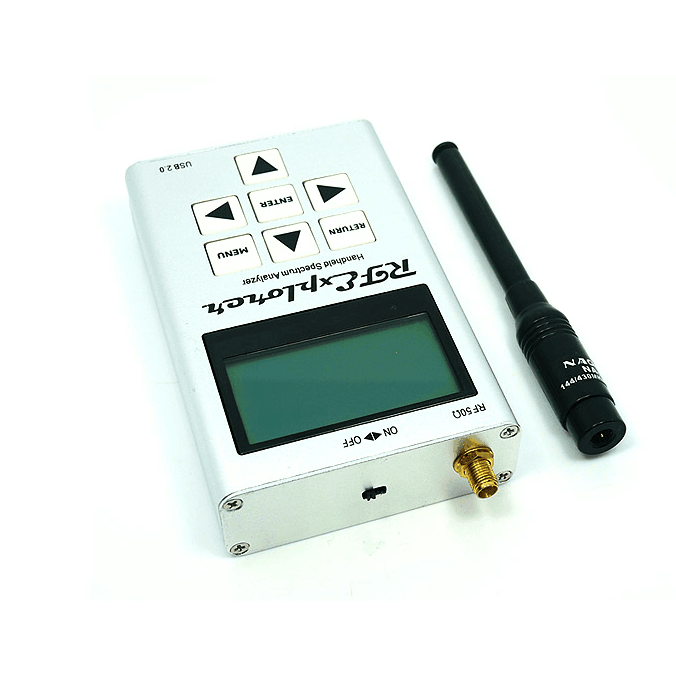

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.
It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.
This model comes with a nice Nagoya NA-773 wideband telescopic antenna.
Features:
- Pocket size and light weight
- Solid aluminum metal case
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
- Integrated RF Signal Generator
- Lifetime free firmware upgrades available, open to community requested features
- High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
- Windows PC client Open Source
- Can be extended with internal Expansion Modules for additional band and functionality
Specifications:
- Frequency band: 2400-2485 MHz
- Frequency span: 2-85 Mhz
- Graphics LCD 128x64 pixels, great visibility outdoors
- PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
- Backlight for great indoor visibility
- Standard SMA 50 ohms connector, a matching antenna is included
- Amplitude resolution: 0.5dBm
- Dynamic range: -105dBm to -15dBm
- Absolute Max input power: +5dBm
- Average noise level (typical): -100dBm
- RF Generator amplitude: -30dBm to +1dBm
- Frequency stability and accuracy (typical): +-10ppm
- Amplitude stability and accuracy (typical): +-3dBm
- Frequency resolution: 1Khz
- Resolution bandwidth (RBW): automatic 58Khz to 812Khz
- Weight: 185g
- Size: 113x70x25 mm
