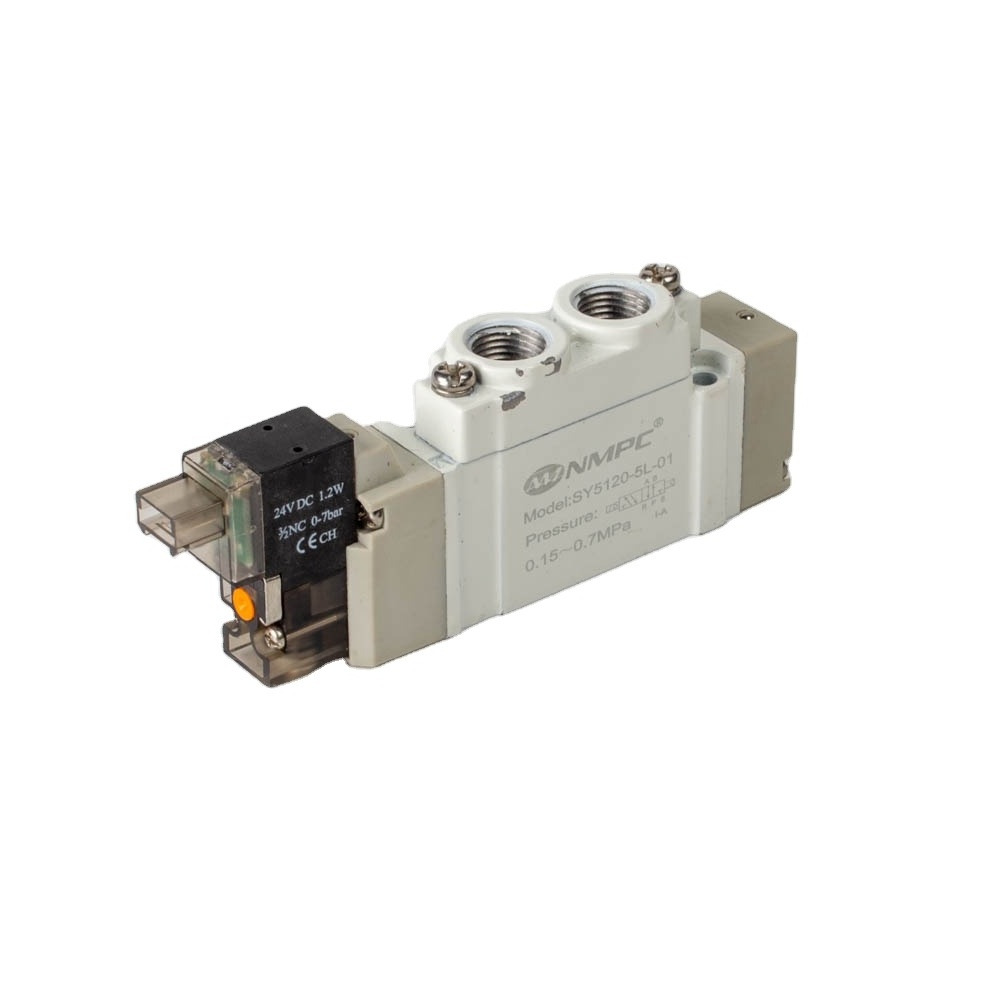

SMC Type SY7120 SY5120 Series 5/2 way 5/3 way 220V 24V Directional Control Valve Pneumatic Solenoid Valve

SMC Type SY7120 SY5120 Series 5/2 way 5/3 way 220V 24V Directional Control Valve Pneumatic Solenoid Valve

FOB Reference Price: Get Latest Price

≥2 Pieces

US $13.4

≥50 Pieces

US $12.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: High-frequency solenoid valve

Working medium:: Air

Working pressure:: 0.15-0.8Mpa

Working Temperature:: -20~70℃

MOQ:: 1 Piece

Standard or Nonstandard:: Standaard

Voltage:: DC12V DC24V AC110V AC220V

Port size:: 1/8"

Ambient and fluid temperature (°C):: -20~70℃

Max. operating frequency (Hz):: 10

Quick Details

Weight (KG):: 1

Place of Origin:: China

Brand Name:: NMPC

Product name:: High-frequency solenoid valve

Working medium:: Air

Working pressure:: 0.15-0.8Mpa

Working Temperature:: -20~70℃

MOQ:: 1 Piece

Standard or Nonstandard:: Standaard

Voltage:: DC12V DC24V AC110V AC220V

Port size:: 1/8"

Ambient and fluid temperature (°C):: -20~70℃

Max. operating frequency (Hz):: 10

SMC Type SY7120 SY5120 Series 5/2 way 5/3 way 220V 24V Directional Control Valve Pneumatic Solenoid Valve

Features
1. Inner exhausting structure and no pollution. 2. Low power consumption of 1.2W. 3. Sliding structure and special to upgrade
flow, life time, seal function and response. 4. Special treatment to look after inner hole for less friction, lower starting
pressure and long life time. 5. Integrated intallation to save space.

Product Description

Specification

Valve type (mm)	SY5120	SY5220	SY53C20	SY53E20	SY53P20
Valve type	5/2 way			5/3 way
Port size	1/8"
Working medium	40 Micron filted air
Working pressure	0.15～0.7MPa	0.1～0.7MPa	0.15～0.7MPa
Max pressure	1MPa
Working temperature	0～50℃
Power consumption	1.2W
