Quick Details
-
Brand Name:
-
LNA
-
Model Number:
-
LNA-G200
-
Engine:
-
200cc automatic, 200cc
-
Drive Mode:
-
Chain
-
Wheel Size:
-
10"
-
Oil Tank Capacity:
-
4.5L
-
Maximum Speed:
-
75km/h
-
Displacement:
-
200cc
-
Brake Type:
-
Hydraulic Disc Brake
-
Dimensions:
-
2055*1240*1174mm
-
Wheelbase:
-
1598mm
-
Drive:
-
Chain drive
-
Clutch:
-
Automatic
-
Brake:
-
Hydraulic Disc Brake
-
Engine type:
-
4 Stroke
-
Certificate:
-
CE
-
Seaters:
-
2
-
Top speed:
-
75km/h
Quick Details
-
Type:
-
Pedal Go Karts
-
Engine Capacity:
-
50-200CC
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
LNA
-
Model Number:
-
LNA-G200
-
Engine:
-
200cc automatic, 200cc
-
Drive Mode:
-
Chain
-
Wheel Size:
-
10"
-
Oil Tank Capacity:
-
4.5L
-
Maximum Speed:
-
75km/h
-
Displacement:
-
200cc
-
Brake Type:
-
Hydraulic Disc Brake
-
Dimensions:
-
2055*1240*1174mm
-
Wheelbase:
-
1598mm
-
Drive:
-
Chain drive
-
Clutch:
-
Automatic
-
Brake:
-
Hydraulic Disc Brake
-
Engine type:
-
4 Stroke
-
Certificate:
-
CE
-
Seaters:
-
2
-
Top speed:
-
75km/h
Product Description
Specification
|
Model Number
|
LNA-G200
|
Engine
|
200cc
|
|
Size
|
2055*1240*1174mm
|
Top speed
|
75km/h
|
|
Clutch
|
Automatic
|
Start
|
Electric
|
|
Wheelbase
|
1598mm
|
Cooling
|
Oil cooled
|
|
Weight
|
190kg
|
Max weight load
|
200-300kg
|
|
Front track
|
278
|
Rear track
|
177
|
|
Battery
|
12v,3AH
|
Fuel Tank
|
4.5L
|
|
Brake
|
Hydraulic Disc Brake
|
Front wheel
|
10"
|
|
Rear wheel
|
10"
|
Minimum turning radius
|
3.5m
|
|
Color
|
Black,Green,Red etc
|
Packing size
|
2110*1120*800mm
|
|
Engine model
|
GY6
|
Clearance
|
285mm
|
|
Engine type
|
4 stroke
|
Compression ratio
|
9:1
|
|
Cylinder diameter,stroke
|
70*66.8mm
|
Power
|
12.5kw
|
Detailed Pictures
Driving Seat
Roomy driving seat provides huge space for the riders,with forward and backward moveable seaters the riders leg will be comfortable
Pedals
Automatic gear,with throttle pedal and brake pedal
Gear lever and hand brake in the middle
Engine
200cc engine,oil cooled, gives absolutely great cooling performance
The Rear

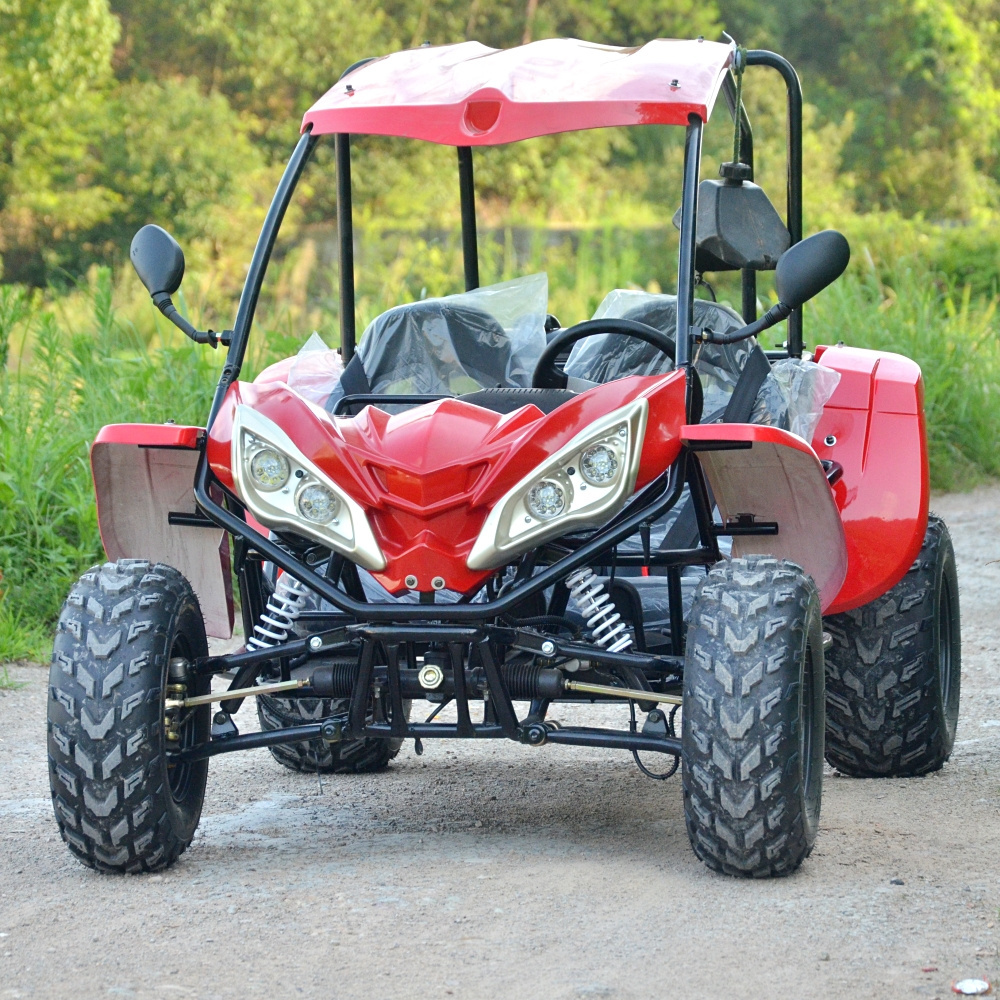

Actual Pictures
Certifications
Why Choose Us
We LNA Go Kart Buggies are widely exported to over the world with great reputations,In Europe,Asia, Africa,America our products are running and brings the owners happiness and joy. All of our products has three years warranty and 1 year of spare parts service.Please feel free to contact our sales for more deatiled info about our products.
Product packaging
Packing
The packing is made by steel frame with carbon box and covered by plastic. strong enough for the transport.
Recommend Products
About us
Wuhan LNA Machinery Equipment Co.,Ltd. Established in 2017,is a professional manufacturer and exporter that is concerned with the design,development and production of ATVs and Buggies.all of our products comply with international quality standards just as CE etc,and are greatly appreciated in a variety of different markets throughout the world.As a result of our high quality products and outstanding customer service,we had gained a global sales network reaching North America and Europe and Southeast Asia.
Please feel free to contact us for more detailed quotation list
Thanks
