Quick Details
-
Power:
-
0.55kw-30kw
-
Dimension(L*W*H):
-
20HQ
-
Weight:
-
800 KG
-
Product name:
-
Vacuum Juice Concentrator Concentrator
-
Name:
-
Wiped Film Salt Water Evaporator Evaporation
-
Keywords:
-
concentration tank
-
Material:
-
Stainless Steel
-
Usage:
-
vacuum evaporator
-
Function:
-
Extracting Concentrating
-
Capacity:
-
500-2000kg/H
-
Extraction Type:
-
Liquid Extraction
-
Keywords 1:
-
Extraction Machine
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZZHL
-
Voltage:
-
110-480V
-
Power:
-
0.55kw-30kw
-
Dimension(L*W*H):
-
20HQ
-
Weight:
-
800 KG
-
Product name:
-
Vacuum Juice Concentrator Concentrator
-
Name:
-
Wiped Film Salt Water Evaporator Evaporation
-
Keywords:
-
concentration tank
-
Material:
-
Stainless Steel
-
Usage:
-
vacuum evaporator
-
Function:
-
Extracting Concentrating
-
Capacity:
-
500-2000kg/H
-
Extraction Type:
-
Liquid Extraction
-
Keywords 1:
-
Extraction Machine

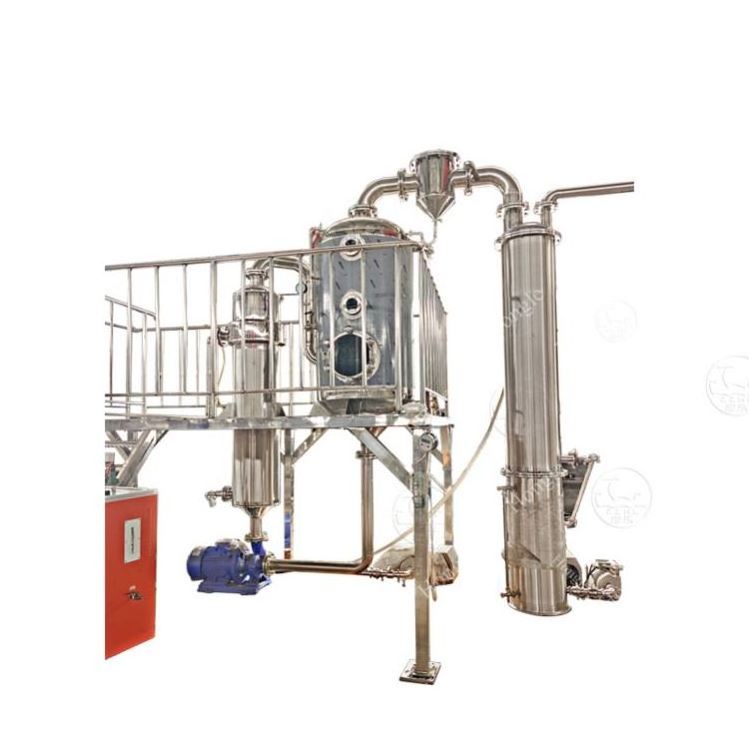

A22 Vacuum Fruit Juice Syrup Pot Concentrator Vacuum Evaporating Alcohol Recovery Evaporation Concentrator
Product Description
THE PRINCIPLE AND CHARACTERISTICS
1. The equipment adopts the combination of external heating natural circulation and vacuum negative pressure evaporation, and the heating material and evaporation material are constantly changing, with the characteristics of uniform heating and fast evaporation speed.
2. The whole process is completed in a closed state. The heating room and evaporation room can be installed for online cleaning,and the temperature and vacuum degree can be displayed online.
3. All-glass hole entry design can clearly observe the internal material concentration.
4. Gas-liquid separator can fully reduce the loss of effective components caused by vapor-liquid entrainment.
5. Continuous feeding and discharging of condensing solvent and sampling under vacuum condition.
6. According to customer's situation, the condenser can be in the form of plate and sheet to further improve the cooling effect.
1. The equipment adopts the combination of external heating natural circulation and vacuum negative pressure evaporation, and the heating material and evaporation material are constantly changing, with the characteristics of uniform heating and fast evaporation speed.
2. The whole process is completed in a closed state. The heating room and evaporation room can be installed for online cleaning,and the temperature and vacuum degree can be displayed online.
3. All-glass hole entry design can clearly observe the internal material concentration.
4. Gas-liquid separator can fully reduce the loss of effective components caused by vapor-liquid entrainment.
5. Continuous feeding and discharging of condensing solvent and sampling under vacuum condition.
6. According to customer's situation, the condenser can be in the form of plate and sheet to further improve the cooling effect.
Parameters:
we can customize the machine according to your finished product and production requirements.
|
Model
|
|
HLNS1-500
|
HLNS2-1000
|
HLNS2-1500
|
HLNS2-2000
|
HLNS2-3000
|
|
Maximum evaporation(kg/H)
|
|
500
|
1000
|
1500
|
2000
|
500
|
|
The steam consumption of(kg/H)
|
|
≤250
|
≤500
|
≤750
|
≤1000
|
≤1500
|
|
The water consumption of(T/H)
|
|
6
|
12
|
15
|
20
|
25
|
|
The steam nozzle(mm)
|
|
40
|
40
|
50
|
50
|
80
|
|
Overall dimensions(mm)
|
Long
|
4000
|
5000
|
6200
|
6500
|
6800
|
|
|
Wide
|
1500
|
1600
|
18600
|
1700
|
2000
|
|
|
High
|
3300
|
3500
|
4300
|
4500
|
4500
|
|
Evaporation temperature(℃)
|
A valid
|
|
|
80-90
|
|
|
|
|
The second effect
|
|
|
60-70
|
|
|
|
Vacuum(Mpa)
|
A valid
|
|
|
-0.04
|
|
|
|
|
The second effect
|
|
|
-0.06
|
|
|
|
Design pressure(Mpa)
|
|
|
|
0.09
|
|
|
|
Enrichment than
|
|
|
|
1.1-1.3
|
|
|
Related Products
*If you can not open the links above on Alibaba APP on mobile phone, please use IE browser to visit our website:
https://chinafoodmachine.en.alibaba.com
.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
