Quick Details
-
Model Number:
-
IFR32700 8S1P
-
Place of Origin:
-
Guangdong, China
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Product name:
-
32700 8S1p 6ah 24v lifepo4 battery pack
-
Pack Dimension:
-
35*75*263mm
-
Welcome:
-
OEM/ODM
-
Rechargeable:
-
Yes
-
Sample:
-
Available
-
Cycle life:
-
More than 2000 cycles
-
Warranty Time:
-
One Year
-
Protection:
-
PCB Circuit
-
Certificate:
-
UN38.3
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, Consumer Electronics, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
A&S Power
-
Model Number:
-
IFR32700 8S1P
-
Place of Origin:
-
Guangdong, China
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Product name:
-
32700 8S1p 6ah 24v lifepo4 battery pack
-
Pack Dimension:
-
35*75*263mm
-
Welcome:
-
OEM/ODM
-
Rechargeable:
-
Yes
-
Sample:
-
Available
-
Cycle life:
-
More than 2000 cycles
-
Warranty Time:
-
One Year
-
Protection:
-
PCB Circuit
-
Certificate:
-
UN38.3
Custom 24 volt lithium iron phosphate battery pack 32700 8S1p 6ah 24v lifepo4 battery pack
Model: IFR 32700 8S1P
Voltage:24V Capacity:6Ah
Dimension: 35*75*263mm
Parameter Table:
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
6.0Ah |
Discharge:0.2CmA |
|
|
Minimum |
5.7Ah |
|||
|
3.2 Nominal Voltage |
Average 25.6V |
|
||
|
3.3 AC Impedance Resistance |
≤ 280mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
20.0V |
|
||
|
3.5 Charge Current |
1.2A |
Standard Charge |
||
|
3.6 Charge Voltage |
29.2V |
|
||
|
3.7 Charge Time |
Approx 6.0h |
Charge: 0.2CmA |
||
|
3.8 Max. Charge Current |
6.0A |
|
||
|
3.9 Max. Continuous discharge Current |
6.0A |
|
||
|
3.10 Peck discharge current |
12A |
|
||
|
3.11 Weight |
Approx 1.2kg |
|
||
|
3.12 Operating Temperature |
Charge |
0~+45 ℃ |
|
|
|
Discharge |
-20~+60 ℃ |
|
||
|
3.13 Storage Temperature |
less than 1 month |
-20~+45 ℃ |
Recommended storage temperature: 20 ℃ ,at the shipment state |
|
|
less than 3 months |
-20~+35 ℃ |
|||

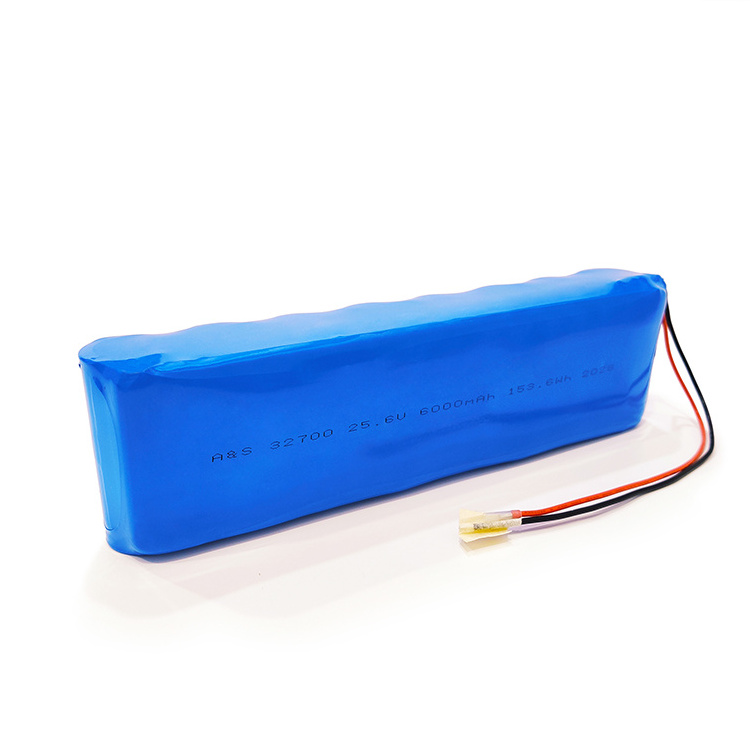

Product Picture:
