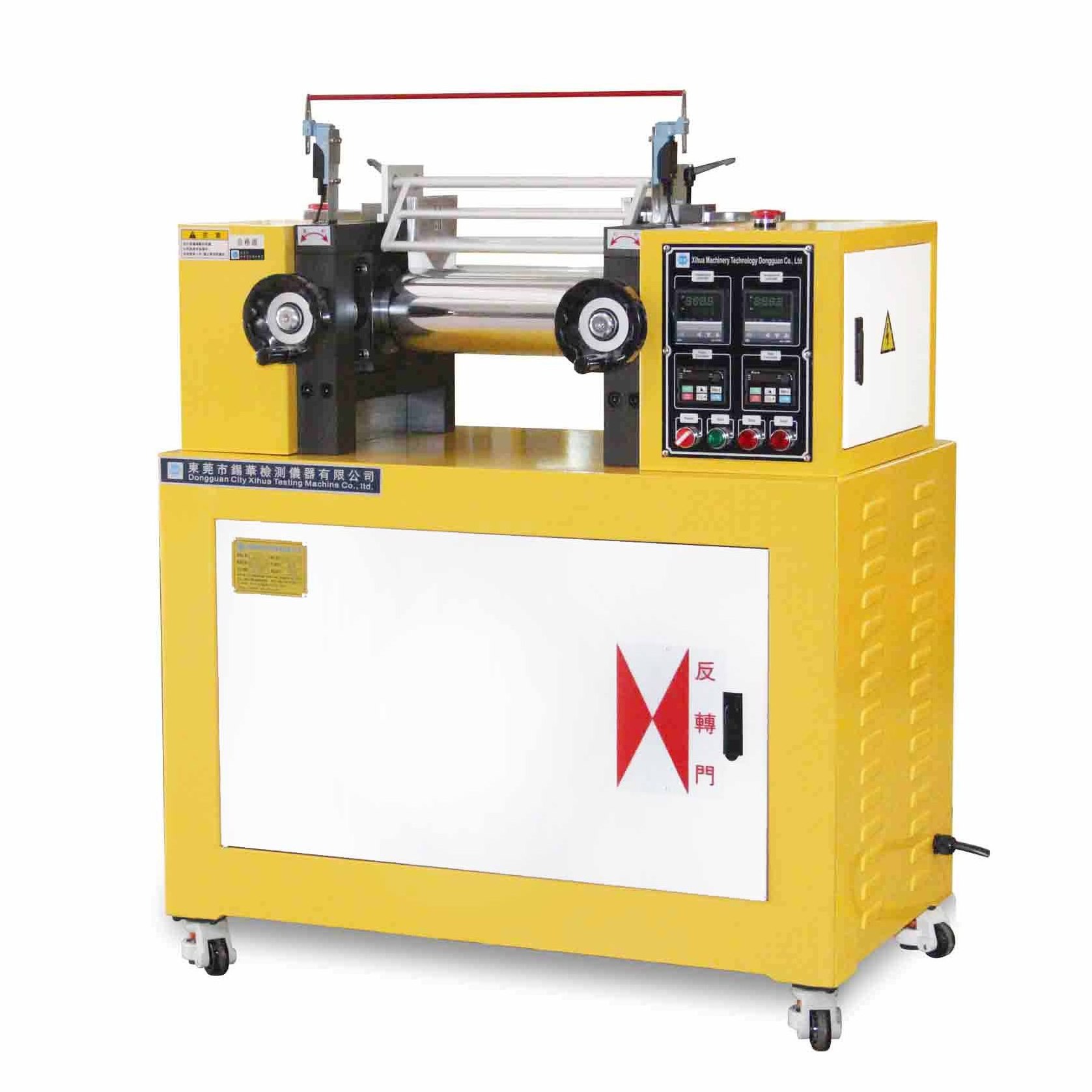

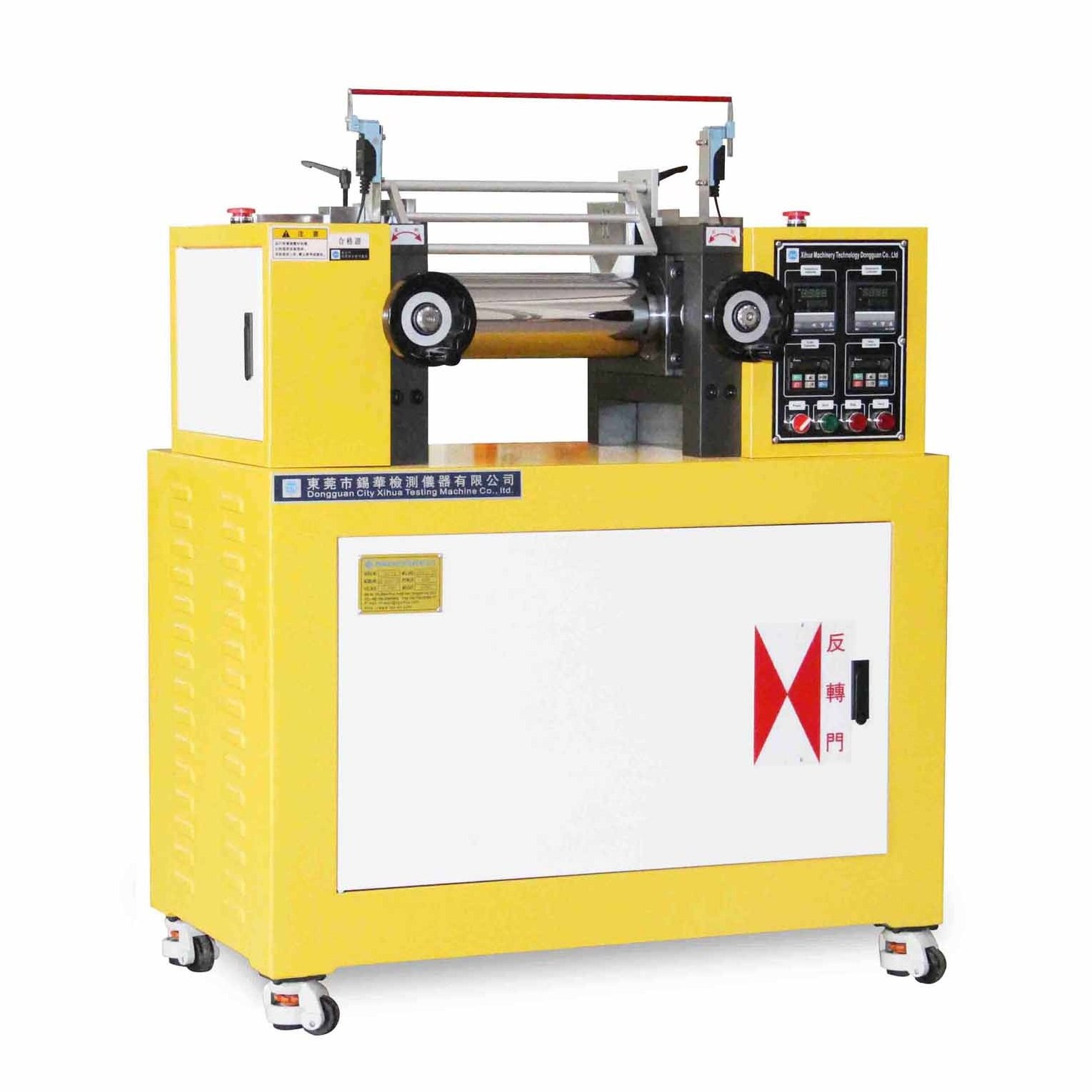

Name: Roller
Brand: XIHUA
Original: CHINA

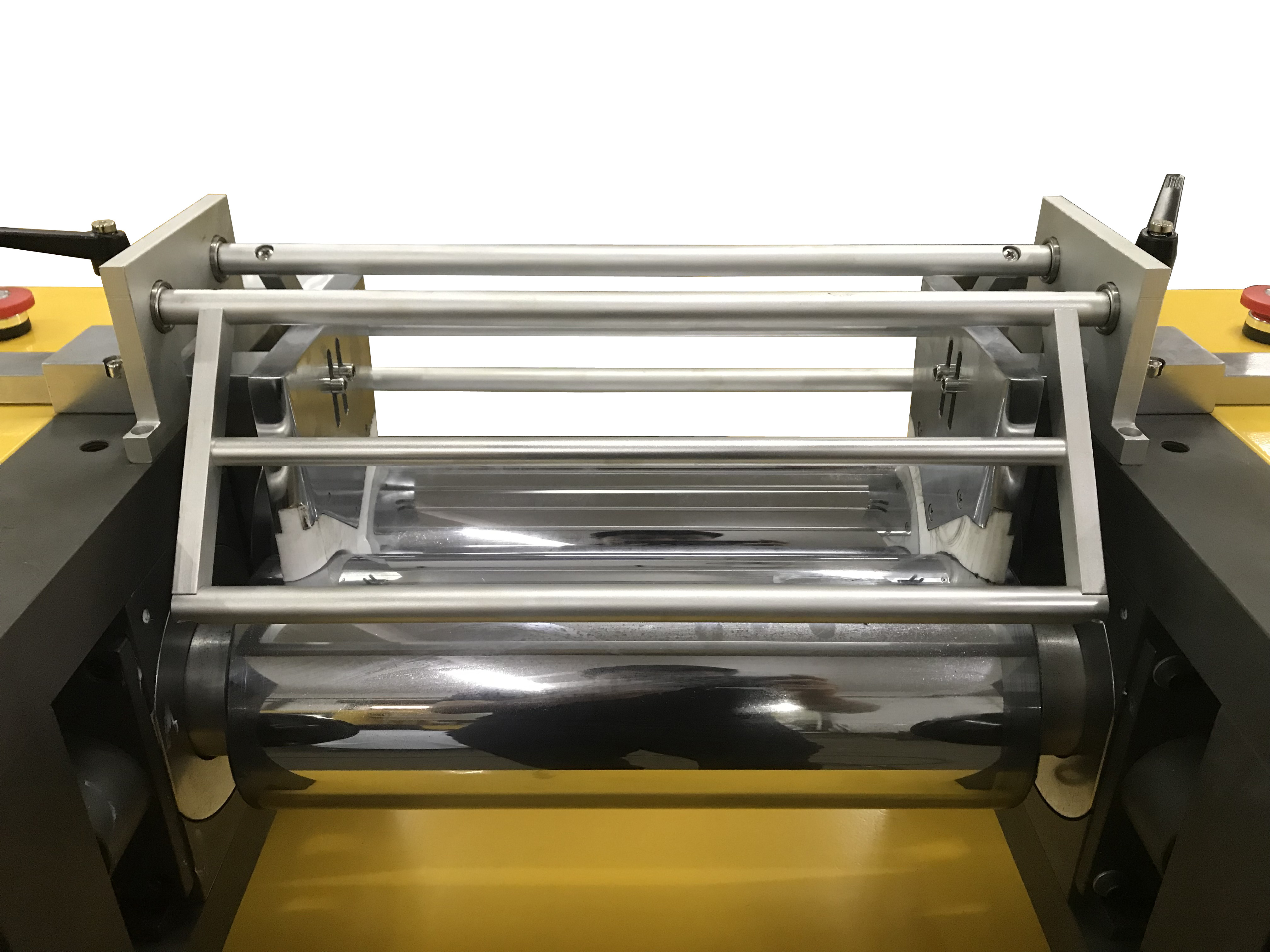

Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
- Product Details
- {{item.text}}
Quick Details
-
Roll Ratio(Front/Back):
-
Free to adjust
-
Cooling Mode:
-
water
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XH
-
Voltage:
-
AC380V
-
Dimension(L*W*H):
-
1000*550*1500mm
-
Year:
-
2023
-
Power (kW):
-
5
-
Weight (KG):
-
450 KG
-
Applicable Industries:
-
polymers mixing
-
color:
-
yellow
-
machine name:
-
two roll mill
-
machine type:
-
lab testing machine
-
machine usege:
-
rubber and plastic material
-
cetificate:
-
CE
-
application:
-
raw material
-
function:
-
mixing mill
-
power:
-
380v
-
brand name:
-
Xihua
Quick Details
-
Diameter of Roll(mm):
-
120 mm
-
Rotation Speed of Front Roll(rpm):
-
1 - 30 rpm
-
Length of Roll(mm):
-
350 mm
-
Roll Ratio(Front/Back):
-
Free to adjust
-
Cooling Mode:
-
water
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XH
-
Voltage:
-
AC380V
-
Dimension(L*W*H):
-
1000*550*1500mm
-
Year:
-
2023
-
Power (kW):
-
5
-
Weight (KG):
-
450 KG
-
Applicable Industries:
-
polymers mixing
-
color:
-
yellow
-
machine name:
-
two roll mill
-
machine type:
-
lab testing machine
-
machine usege:
-
rubber and plastic material
-
cetificate:
-
CE
-
application:
-
raw material
-
function:
-
mixing mill
-
power:
-
380v
-
brand name:
-
Xihua
Product Description
Product Application
The machine is used to uniformly mix the raw material and additional agents for testing and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color specified by the customer.
|
XH-401CE Technical parameter
|
|
|
|
|||
|
Mixed capacity
|
0.5-1kgs or designated
|
|
|
|||
|
Temperature of the roller
|
Electrical heating room temp ~ 300℃
|
|
|
|||
|
Precision of the control temp
|
+ -2℃
|
|
|
|||
|
Heating mode
|
Electrical heating
|
|
|
|||
|
Revolution of the roller
|
Dual-frequency limitless speed change
|
|
|
|||
|
Speed ratio of the roller
|
Self-moblization
|
|
|
|||
|
Roller pitch
|
0.1~10mm adjustable
|
|
|
|||
|
Size of the roller
|
Φ120mm*L350mm or designed
|
|
|
|||
|
Safety device
|
Many touch-type emergency stoppers
|
|
|
|||
|
Motor
|
1 HP (2 sets)
|
|
|
|||
|
Power supply
|
AC380V
|
|
|
|||
|
Volume(W*D*H)
|
1100*650*1500mm
|
|
|
|||
Main Features
1) Bult-in heater, together with LED temperature controller and high-precision sensor, can automatically compensate the temperature to guarantee the temperature equalization.
2) Telfon stop block.
3) Taiwan gear motor, together with high-precision gearing chain, brings stable operation, low noise and good durability.
4) Emergent reverse gurantees the safety.
Detailed Images
Machine Parts
Main Features
Name:
Safety Device
Brand:
XIHUA
Original:
CHINA
Protective cover, Safety lever,
safety door, Emergency button
Machine Parts
Name:
Control Board
Brand:
XIHUA
Original:
CHINA
LED temperature display, the speed easy control by two frequency converter.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Contact Information
Dongguan Xihua Testing Machine Co.,Ltd
WhatsApp: +86 15625539168
Wechat: +86 15625539168
Website: www.lab-xh.com
Our Exhibition
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1000(L) * 550(W) * 1500 (D)
|
|
|
Weight
|
400kgs
|
|
|
Packaging Details
|
The normal package is wooden case, we will use PE film roll the equipment first.
|
|
