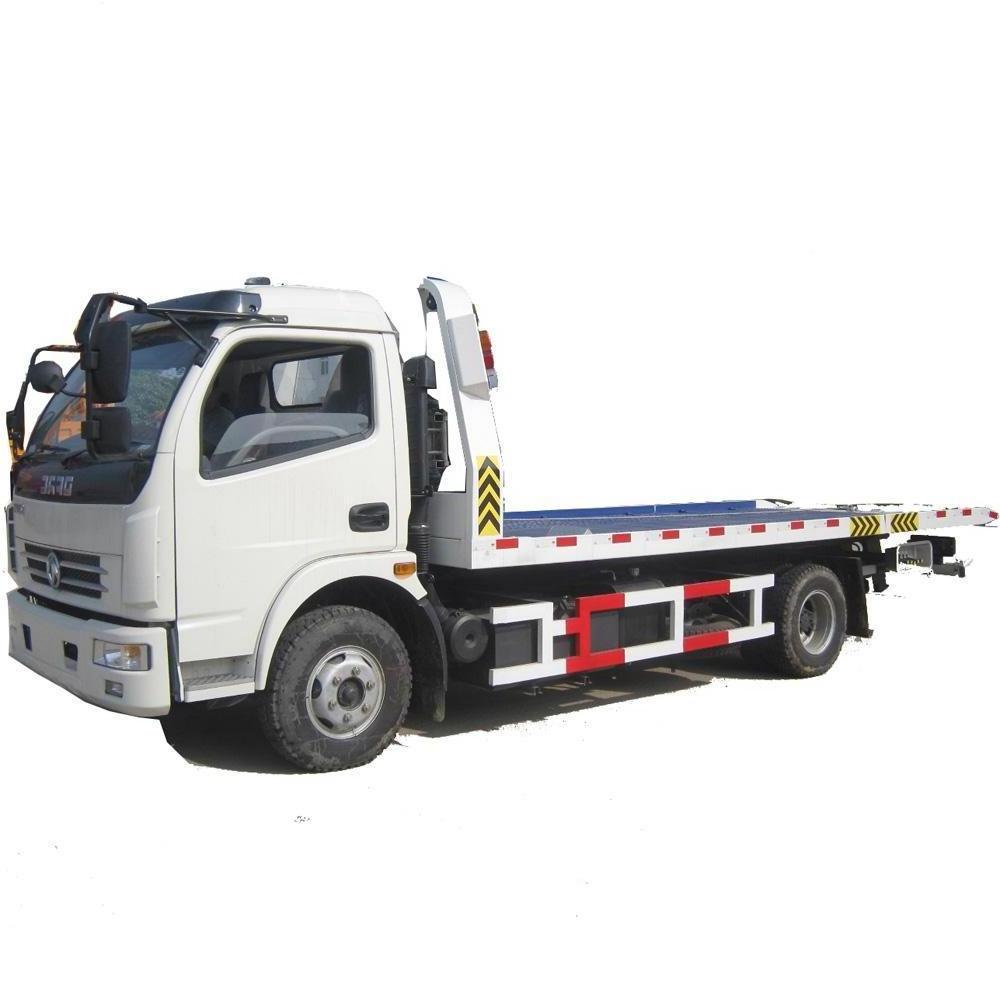

- Product Details
- {{item.text}}
Quick Details
-
Dimensions (L x W x H) (mm):
-
7450X2300X2650mm
-
Place of Origin:
-
HUB
-
Chassis brand:
-
Dongfeng
-
Wheel base:
-
3800mm
-
Driving type:
-
4x2
-
Flat-bed dimensions:
-
5600x2300mm
-
Related loading weight:
-
4 tons
Quick Details
-
Emission Standard:
-
Euro 3
-
Condition:
-
New
-
Brand Name:
-
SUPER-ABOVE
-
Dimensions (L x W x H) (mm):
-
7450X2300X2650mm
-
Place of Origin:
-
HUB
-
Chassis brand:
-
Dongfeng
-
Wheel base:
-
3800mm
-
Driving type:
-
4x2
-
Flat-bed dimensions:
-
5600x2300mm
-
Related loading weight:
-
4 tons
Technical parameters
|
Vehicle parameters
|
|
|
|
|
|
|||||
|
Vehicle Model
|
EHY5090TQZE
|
Vehicle Brand
|
HUAYI
|
|
|
|||||
|
Overall dimensions
|
7450X2300X2650mm
|
Curb weight
|
5295kg
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
Chassis parameters
|
|
|
|
|
|
|||||
|
Chassis model
|
|
|
EQ1090T9ADJ3AC
|
Chassis brand
|
DONGFENG
|
|||||
|
Overall dimensions
|
|
|
6695x2180x2350mm
|
Wheel base
|
3800mm
|
|||||
|
Front/rear wheel track
|
|
|
1750/1586mm
|
Front/rear suspension
|
1180/1715mm
|
|||||
|
Approach/departure angle
|
|
|
22/13°
|
Maximum speed
|
80km/h
|
|||||
|
Chassis Manufacturer
|
|
|
Dongfeng Automobile Co.,Ltd
|
|
|
|||||
|
Cab
|
Configuration
|
|
Single row cab,air conditioner,allowable 3 passengers,cab can be flipped
|
|
|
|||||
|
|
Color
|
|
White,other color is optional
|
|
|
|||||
|
Engine
|
Model
|
|
YC4FA120-33
|
|
|
|||||
|
|
Emission
|
|
Euro 3
|
|
|
|||||
|
|
Type
|
|
4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
|
|
|
|||||
|
|
Rated power
|
|
120hp,rated power speed 2800rpm
|
|
|
|||||
|
|
Displacement
|
|
3856ml
|
|
|
|||||
|
|
Bore x stroke
|
|
102x118mm
|
|
|
|||||
|
|
Manufacturer
|
|
Dongfeng Chaoyang Diesel Power Co. Ltd.
|
|
|
|||||
|
Tire
|
Size
|
|
7.50R16,steel wire tire
|
|
|
|||||
|
|
Number
|
|
6+1 nos
|
|
|
|||||
|
Frame
|
192mm
|
|
|
|
|
|||||
|
Brake
|
Air break, electronic flame out, exhaust brake
|
|
|
|
|
|||||
|
Fuel tank
|
100L,steel
|
|
|
|
|
|||||
|
Front axle
|
2.4T
|
|
|
|
|
|||||
|
Rear axle
|
4.2T
|
|
|
|
|
|||||
|
Drive form
|
4X2
|
|
|
|
|
|||||
|
Rated voltage
|
24V,DC
|
|
|
|
|
|||||
|
Transmissions
|
5 speed forward 1 reverse.
|
|
|
|
|
|||||
|
Steering device
|
Power assisted steering
|
|
|
|
|
|||||
|
Steering wheel
|
Left hand drive
|
|
|
|
|
|||||
|
Selective configuration
|
|
Air Conditioner, Cummins engine B140 33(140hp)
|
|
|
|
|||||
Details Images
Sales Service
About Us
Packaging & Shipping
FAQ
1:Are you original manufacture?
A:Yes, we are an official leading manufacture in constrution machinery in china and we have the whole series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Whick incoterms 2010 terms can we work?
A:Normally we work on FOB,CFR,CIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warrenty time?
A:12 months afer shipment or 2000 working hours.
6:What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
