Quick Details
-
Min. Lifting Height:
-
85mm
-
Table Size:
-
540mm / 680mm x 1150mm
-
Weight:
-
1000 kg
-
Product name:
-

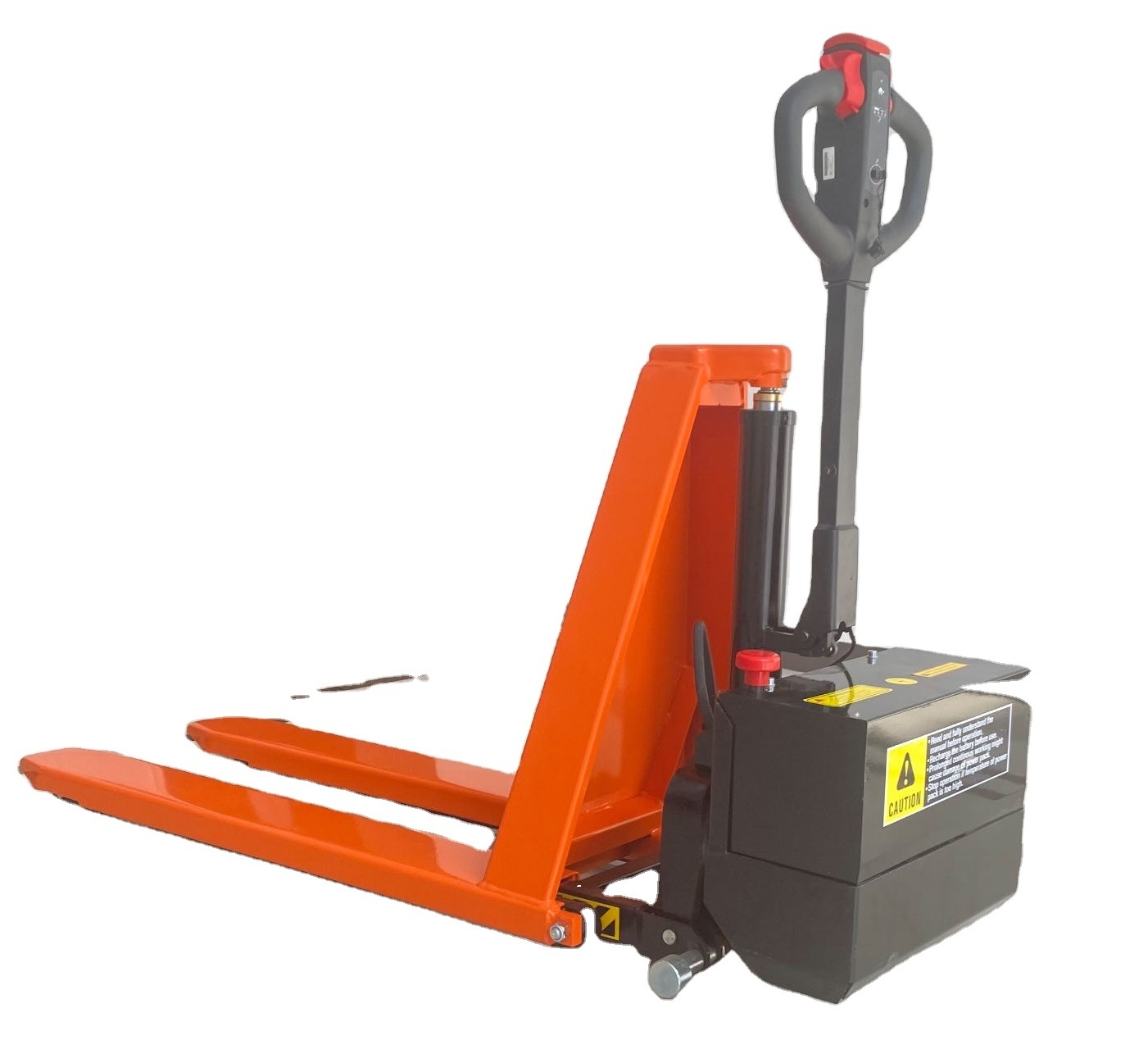

Electric High Lift Pallet Truck
-
Load capacity:
-
1t/1.5t
-
Lifting min height:
-
85mm
-
Fork Width:
-
540/680mm
-
Fork Length:
-
1150mm
-
Output Voltage of Charger:
-
12v
-
Self-weight:
-
140kg
-
Lifting max height:
-
800mm
-
Battery Voltage:
-
12v
-
Battery Capacity:
-
75h
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JS Machinery
-
Min. Lifting Height:
-
85mm
-
Table Size:
-
540mm / 680mm x 1150mm
-
Weight:
-
1000 kg
-
Product name:
-
Electric High Lift Pallet Truck
-
Load capacity:
-
1t/1.5t
-
Lifting min height:
-
85mm
-
Fork Width:
-
540/680mm
-
Fork Length:
-
1150mm
-
Output Voltage of Charger:
-
12v
-
Self-weight:
-
140kg
-
Lifting max height:
-
800mm
-
Battery Voltage:
-
12v
-
Battery Capacity:
-
75h
Product introduction
‣ This product combines the functions of ordinary hydraulic truck and lifting platform, which can be used for daily work of bearing heavy objects and carrying goods.
‣ When the fork is raised to 420mm, it automatically adjusts the stabilizer to contact the ground to ensure smoothness and braking of the vehicle. ‣ This product conforms to EN1757-4.
‣ This product combines the functions of ordinary hydraulic truck and lifting platform, which can be used for daily work of bearing heavy objects and carrying goods.
‣ When the fork is raised to 420mm, it automatically adjusts the stabilizer to contact the ground to ensure smoothness and braking of the vehicle. ‣ This product conforms to EN1757-4.
|
Model
|
EHPT-1 (Double Cylinder)
|
|
|
|
|||
|
Capacity(kg)
|
1000
|
1000
|
1500
|
1500
|
|||
|
Fork Width(mm)
|
540
|
680
|
540
|
680
|
|||
|
Fork Length(mm)
|
1150
|
1150
|
1150
|
1150
|
|||
|
Minimum Lifting Height(mm)
|
85
|
85
|
85
|
85
|
|||
|
Maximum Lifting Height(mm)
|
800
|
800
|
800
|
800
|
|||
|
Battery Voltage(V)
|
12
|
12
|
12
|
12
|
|||
|
Battery Capacity(h)
|
75
|
75
|
75
|
75
|
|||
|
Input Voltage of Charger(V)
|
220-240
|
220-240
|
220-240
|
220-240
|
|||
|
Output Voltage of Charger(V)
|
12
|
12
|
12
|
12
|
|||
|
Self-weight(kg)
|
140
|
146
|
165
|
171
|
|||
|
Model
|
EHPT-2 (Single Cylinder)
|
|
|
|
|||
|
Capacity(kg)
|
1000
|
1000
|
1500
|
1500
|
|||
|
Fork Width(mm)
|
540
|
680
|
540
|
680
|
|||
|
Fork Length(mm)
|
1150
|
1150
|
1150
|
1150
|
|||
|
Minimum Lifting Height(mm)
|
85
|
85
|
85
|
85
|
|||
|
Maximum Lifting Height(mm)
|
800
|
800
|
800
|
800
|
|||
|
Battery Voltage(V)
|
12
|
12
|
12
|
12
|
|||
|
Battery Capacity(h)
|
75
|
75
|
75
|
75
|
|||
|
Input Voltage of Charger(V)
|
220-240
|
220-240
|
220-240
|
220-240
|
|||
|
Output Voltage of Charger(V)
|
12
|
12
|
12
|
12
|
|||
|
Self-weight(kg)
|
158
|
163
|
183
|
188
|
|||
|
Model
|
EHPT-3 (Double Cylinder)
|
|
|
|
|||
|
Capacity(kg)
|
1000
|
1000
|
1500
|
1500
|
|||
|
Fork Width(mm)
|
540
|
680
|
540
|
680
|
|||
|
Fork Length(mm)
|
1150
|
1150
|
1150
|
1150
|
|||
|
Minimum Lifting Height(mm)
|
85
|
85
|
85
|
85
|
|||
|
Maximum Lifting Height(mm)
|
1000
|
1000
|
1000
|
1000
|
|||
|
Battery Voltage(V)
|
12
|
12
|
12
|
12
|
|||
|
Battery Capacity(h)
|
65
|
65
|
65
|
65
|
|||
|
Input Voltage of Charger(V)
|
220-240
|
220-240
|
220-240
|
220-240
|
|||
|
Output Voltage of Charger(V)
|
12
|
12
|
12
|
12
|
|||
|
Self-weight(kg)
|
158
|
163
|
183
|
188
|
|||
