QZSF series linear vibrating screen uses the vibration motor installed at the bottom of it as vibration source. When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force. Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration. In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time. The materials
enter into the feed port, go through the multi-layer screen, then different size of materials was separated out from different outlet.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V,or as you need
-
Dimension(L*W*H):
-
2199mm*808mm*878mm
-
Weight:
-
400 KG
-
Product name:
-
Linear Vibrating Screen
-
Motor:
-
Two Vibration Motor
-
Usage:
-
Separation Screening
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
100Kg-10Tons/hour
-
Function:
-
Screening\separation\sorting\sieving
-
Advantage:
-
High Output
-
Cleaning system:
-
Bouncing Ball Cleaning System
-
Certification:
-
ISO9001:2008/CE
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Qianzhen
-
Voltage:
-
220V/380V,or as you need
-
Dimension(L*W*H):
-
2199mm*808mm*878mm
-
Weight:
-
400 KG
-
Product name:
-
Linear Vibrating Screen
-
Motor:
-
Two Vibration Motor
-
Usage:
-
Separation Screening
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
100Kg-10Tons/hour
-
Function:
-
Screening\separation\sorting\sieving
-
Advantage:
-
High Output
-
Cleaning system:
-
Bouncing Ball Cleaning System
-
Certification:
-
ISO9001:2008/CE
Products Description

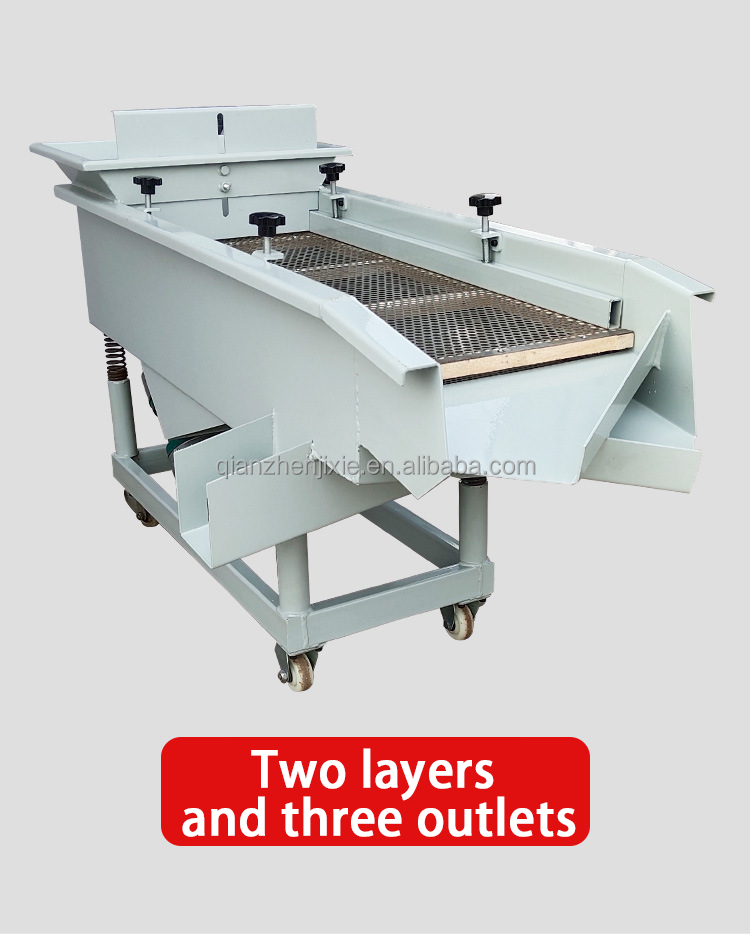

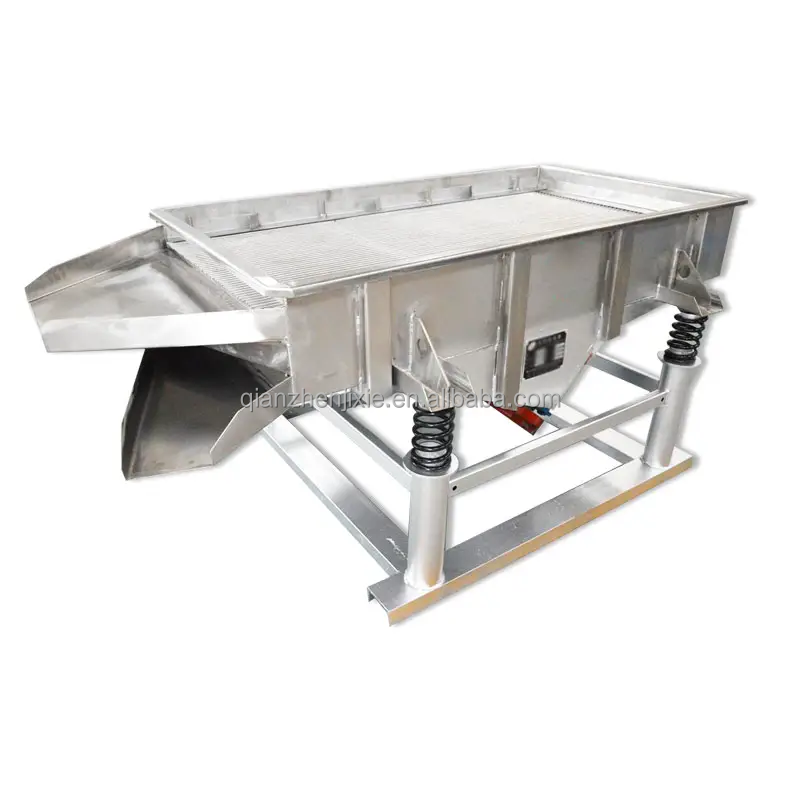

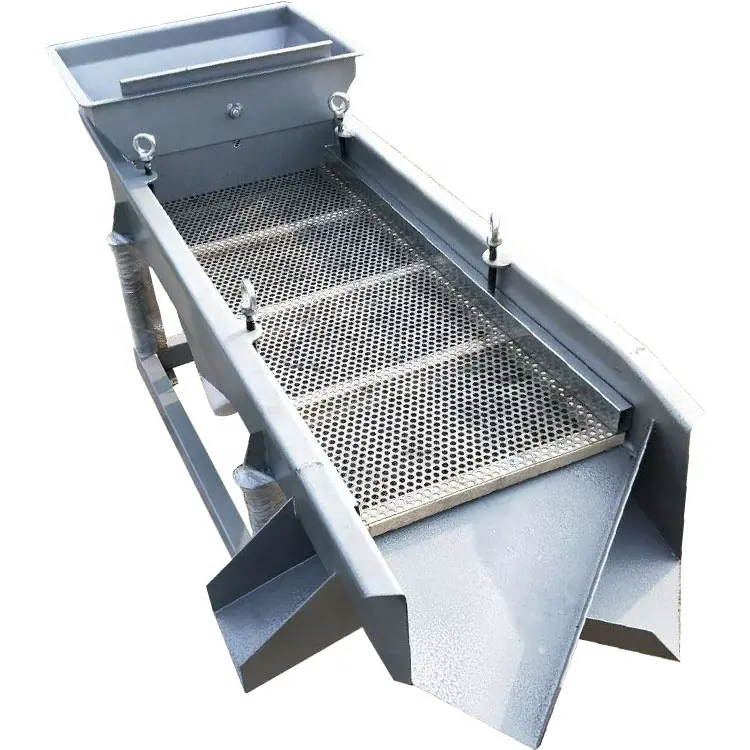

Linear vibrating screen
Details Images
Product Paramenters
|
Model
|
Size （mm）
|
Granularity (mm)
|
Inclined angle
|
Amplitude (mm)
|
Layers
|
Power (KW )
|
|
SZF--520
|
500*2000
|
0.074-10 |
0°-7° |
4-10 |
1-6 |
2*(0.4-0.75)
|
|
SZF--525
|
500*2500
|
|
|
|
|
2*(0.4-0.75)
|
|
SZF--1020
|
1000*2000
|
|
|
|
|
2*(0.4-0.75)
|
|
SZF--1025
|
1000*2500
|
|
|
|
|
2*(0.4-1.1)
|
|
SZF--1030
|
1000*3000
|
|
|
|
|
2*(1.1-1.5)
|
|
SZF--1040
|
1000*4000
|
|
|
|
|
2*(1.1-1.5)
|
|
SZF--1235
|
1200*3500
|
|
|
|
|
2*(1.1-2.2)
|
|
SZF--1250
|
1200*5000
|
|
|
|
|
2*(1.1-2.2)
|
|
SZF--1535
|
1500*3500
|
|
|
|
|
2*(1.1-2.2)
|
|
SZF--1565
|
1500*6500
|
|
|
|
|
2*(2.2-3.7)
|
|
SZF--1845
|
1800**4500
|
0.074-15
|
|
|
|
2*(2.2-3.7)
|
|
SZF--2050
|
2000*5000
|
|
2*(2.2-3.7)
|
|
|
|
|
SZF--2260
|
2200*6000
|
|
2*(2.2-3.7)
|
|
|
|
Customized
