Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DaShu
-
Dimension(L*W*H):
-
245*85mm
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
10 - 900 ℃
-
Core Components:
-
Resistance Wire
-
Product name:
-
ceramic infrared heater
-
Application:
-
Heating Or Dry
-
Standard size:
-
120*60mm,240*85mm etc.
-
Standard shape:
-
Flat,Hollow and Curved
-
Voltage range:
-
110V~240V
-
Wattage range:
-
50~1000W
-
Color for choose:
-
White,Black,Yellow or Customized
-
Design working life:
-
3 years
-
Certificate:
-
CE&ROHS
-
Factory or Trade:
-
Real factory
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
Electric
-
Voltage:
-
240V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DaShu
-
Dimension(L*W*H):
-
245*85mm
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
10 - 900 ℃
-
Core Components:
-
Resistance Wire
-
Product name:
-
ceramic infrared heater
-
Application:
-
Heating Or Dry
-
Standard size:
-
120*60mm,240*85mm etc.
-
Standard shape:
-
Flat,Hollow and Curved
-
Voltage range:
-
110V~240V
-
Wattage range:
-
50~1000W
-
Color for choose:
-
White,Black,Yellow or Customized
-
Design working life:
-
3 years
-
Certificate:
-
CE&ROHS
-
Factory or Trade:
-
Real factory
Products Description

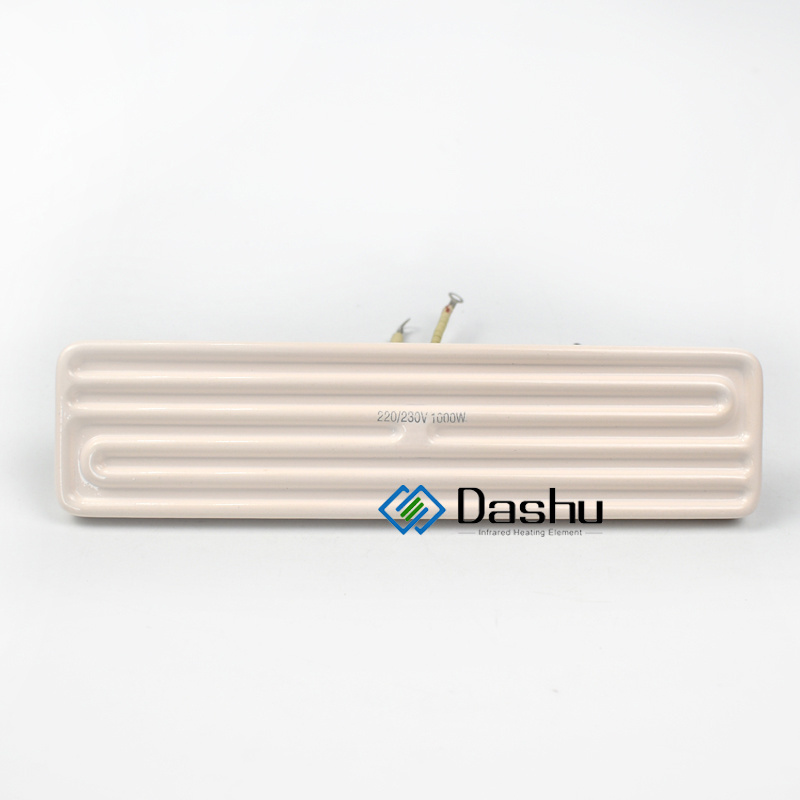

The infrared ceramic heating element
is a
high temperature
,
long life
heating element which adopt to the
industrial
,especially in
chemical fiber, engineering plastics, plastic machinery, electronics, food
.which is used for heat resistance wire
Cr20Ni80
. Ceramic elements include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.Ceramic heater plate, mainly used for extrusion,casting and down-stroke machines. The operating temperature can reach up to 900 degree C. Most plastics and many other materials absorb infrared best in this range, which makes the ceramic heater
the most popular
infrared radiant emitter on the market.
Features
: heater high rate of radiation, the overall good performance,fever uniform,high-temperature insulation,hygiene,long life,but also a corrosion-resistant,anti-oxidation.
The surface have the line not effect use.
Product Paramenters
|
Size(mm)
|
Type
|
Power
|
|
60*60
|
Flat/Hollow
|
Available in 50w and 250w
|
|
120*60
|
Curved/Flat/Hollow
|
Available from 50w to 500w
|
|
120*120
|
Flat/Hollow
|
Available from 50w to 1000w
|
|
240*60
|
Curved/Flat/Hollow
|
Available from 50W to 1000w
|
|
245*80
|
Curved/Flat/Hollow
|
Available from 50w to 1000W
|
Application Scenarios
Application
●
Automobile industry
:
Sunlight simulation environment warehouse, sealing tape/wire harness heating, whole vehicle painting and baking paint, body part patching and baking process ;
●
Printing industry
:
drying and curing process of glue and ink ;
●
Glass industry
:
glass annealing and coating drying process ;
●
Packaging industry
:
PET blowing, laminating, ink drying process ;
●
Furniture industry
:
rapid drying process for water-based/oil-based coatings and paints ;
●
Rubber industry
:
surface modification, plastic softening, molding process ;
●
Food industry
:
food drying, food heating, food packaging material molding, food high temperature sterilization ;
●
Photovoltaic industry
:
battery silicon wafer welding, sintering, substrate drying, spray preheating process ;
●
Textile industry
:
coating drying, fabric preheating, drying, pressing and adhesive activation process ;
●
Household appliances
:
disinfection cabinets, convection ovens, toasters, toasters, and food ovens;
●
Shoemaking industry:
glue activation and drying process,etc.
