Quick Details
-
Brand Name:
-
Fibervision
-
Use:
-
FTTX Solution
-
Warranty Time:
-
2
-
Product name:
-
Mini Blockless PLC Splitter
-
Fiber Type:
-
G657A or customized
-
Port:
-
1X32
-
Connector:
-
SC LC FC
-
polish:
-
UPC/APC
-
Function:
-
Converter Ethernet
-
Application:
-
FTTH FTTB FTTX Network
-
Frequency:
-
1330/1490/1550MHZ
-
Lenght:
-
0.5/1/1.5 or customized
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-

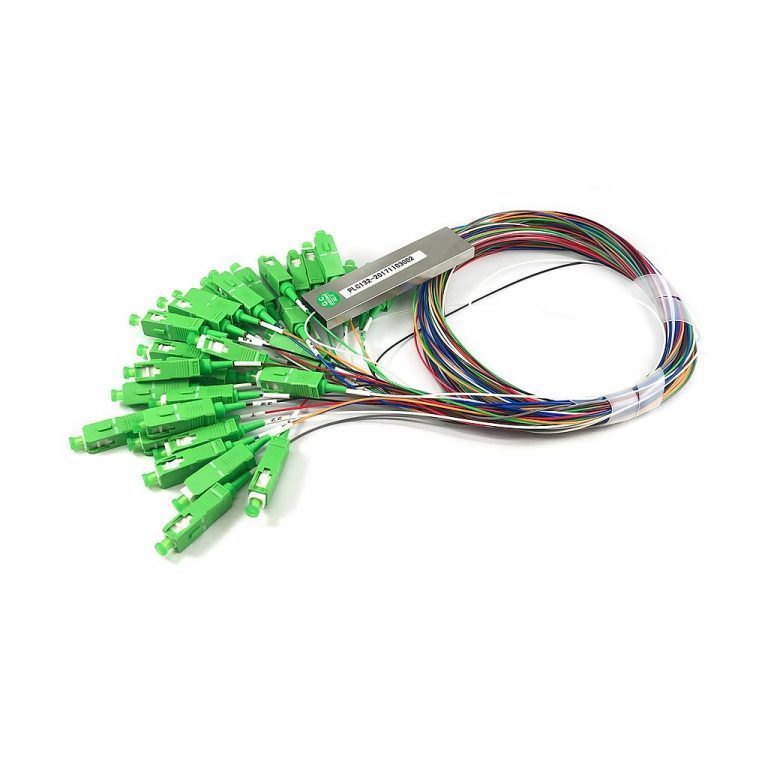

1x32 SC-APC Fiber Optic Blockless PLC Splitter
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fibervision
-
Use:
-
FTTX Solution
-
Warranty Time:
-
2
-
Product name:
-
Mini Blockless PLC Splitter
-
Fiber Type:
-
G657A or customized
-
Port:
-
1X32
-
Connector:
-
SC LC FC
-
polish:
-
UPC/APC
-
Function:
-
Converter Ethernet
-
Application:
-
FTTH FTTB FTTX Network
-
Frequency:
-
1330/1490/1550MHZ
-
Lenght:
-
0.5/1/1.5 or customized
-
Warranty:
-
1 Year
Blockless Mini PLC (Planar Lightwave Circuit) splitters are optical splitters used in passive optical networks (PONs) to split a single optical signal into multiple output signals without requiring any power input. The Blockless Mini PLC splitters are designed to provide high reliability, stability, and scalability in a compact form factor. They use a planar waveguide circuit to distribute the optical signal evenly across the output ports, ensuring minimal signal loss and uniform power splitting.
Uniform power splitting
Compact package dimension
Low polarization dependent loss
Good channel-to-channel uniformity
Low Insertion Loss and high Return Loss
Environmentally and mechanically stable
Wide operating wavelength range from 1260nm to 1650nm
|
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Operating wavelength( nm ) |
1260-1650 |
||||||
|
Insertion loss (dB) |
Typical |
3.6 |
7.2 |
10.5 |
13.5 |
17 |
19.5 |
|
|
Maximum |
4 |
7.5 |
11 |
14 |
17.2 |
21 |
|
Uniformity (dB) |
Typical |
0.4 |
0.5 |
0.6 |
1 |
1 |
2 |
|
|
Maximum |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Polarization Dependent Loss (dB) |
Typical |
0.1 |
0.1 |
0.15 |
0.2 |
0.2 |
0.2 |
|
|
Maximum |
0.15 |
0.15 |
0.25 |
0.3 |
0.3 |
0.3 |
|
Wavelength dependent loss (dB) |
Typical |
0.1 |
0.1 |
0.15 |
0.3 |
0.3 |
0.3 |
|
|
Maximum |
0.2 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Return loss (dB) |
Minimum |
55/50 |
|||||
|
Directivity (dB) |
Minimum |
55 |
|||||
|
Operating temperature (℃) |
-20 to 85 |
||||||
|
Storage temperature (℃) |
-40 to 85 |
||||||
|
Optical fiber type |
G657A Or customer mized |
||||||
|
Optical fiber length (m) |
1.2 or customize |
||||||
