Quick Details
-
Brand Name:
-
Terui
-
Voltage:
-
50hz.380v
-
Dimension(L*W*H):
-
1060*750*1700
-
Weight (KG):
-
650
-
Power (kW):
-
3
-
Product name:
-

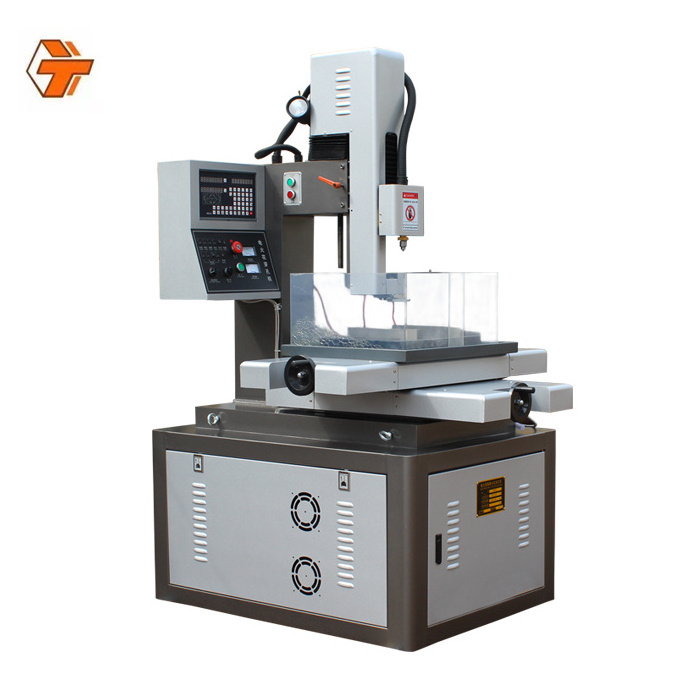

DD703.30 CNC electric sparking edm hole drilling machine
-
Working desk size:
-
260*380mm
-
X-Y trip:
-
300*400mm
-
Spindle servo stroke:
-
300mm
-
Spindle head stroke:
-
200mm
-
Spindle head speed:
-
20-120rpm
-
Clamping electrode diameter:
-
0.3-3mm
-
Guide and table distance:
-
300mm
-
Taper:
-
0
-
Advantage:
-
Good stability and low electrode consumption
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2022
-
Brand Name:
-
Terui
-
Voltage:
-
50hz.380v
-
Dimension(L*W*H):
-
1060*750*1700
-
Weight (KG):
-
650
-
Power (kW):
-
3
-
Product name:
-
DD703.30 CNC electric sparking edm hole drilling machine
-
Working desk size:
-
260*380mm
-
X-Y trip:
-
300*400mm
-
Spindle servo stroke:
-
300mm
-
Spindle head stroke:
-
200mm
-
Spindle head speed:
-
20-120rpm
-
Clamping electrode diameter:
-
0.3-3mm
-
Guide and table distance:
-
300mm
-
Taper:
-
0
-
Advantage:
-
Good stability and low electrode consumption
|
Model Number
|
DD703.30
|
DD703.50
|
|
X-Y travel(mm)
|
300*400
|
500*630
|
|
Workbench size(mm)
|
260*380
|
700*1000
|
|
Spindle servo travel(mm)
|
300
|
600
|
|
Spindle head travel(mm)
|
200
|
500
|
|
Spindle head speed
|
20-120rpm
|
20-120rpm
|
|
Electrode wire diameter(mm)
|
0.3-3
|
0.3-3
|
|
Maximum distance between the director and the table(mm)
|
300
|
500
|
|
Input power(KW)
|
3
|
3
|
|
Dimension(mm)
|
1260*1160*1900
|
2000*1500*1900
|
Northern military-grade P3 ball screw is a practical ball screw, with low friction coefficient, clear running track, and long-term accuracy.
The buttons are waterproof and anti-corrosion, accurate and effective, each button has a function mark, simple and clear.
The circuit board is easy to disassemble and assemble, no need for home maintenance, saving time and effort.
After years of accumulation of CNC machine tool manufacturing technology, Taizhou Tairui CNC Machine Co.,Ltd. has collected most of the technical expertise of the electroprocessing industry, developed and manufactured
high-performance machine tool products with Taiwan, Singapore, European and American technical teams.The major products include EDM wire cutting machine, EDM die sinking machine, EDM drilling machine, CNC milling and engarving machine, CNC lathe, CNC machining center,etc.The company has perfect management and good service,and its products are sold well in China, India, Vietnam, Korea, Ukraine, Russia, America, France, Bulgaria, Egypt, Germany, the UK, Ecuador, Colombia, etc.
high-performance machine tool products with Taiwan, Singapore, European and American technical teams.The major products include EDM wire cutting machine, EDM die sinking machine, EDM drilling machine, CNC milling and engarving machine, CNC lathe, CNC machining center,etc.The company has perfect management and good service,and its products are sold well in China, India, Vietnam, Korea, Ukraine, Russia, America, France, Bulgaria, Egypt, Germany, the UK, Ecuador, Colombia, etc.
