---High precision and speed.
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Voiern
-
Dimension(L*W*H):
-
(135+37)*94*(58+38)CM
-
Weight (KG):
-
190 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Keywords:
-
9060 Laser Engraving Cutting Machine
Quick Details
-
Engraving Area:
-
900mm*600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Voiern
-
Dimension(L*W*H):
-
(135+37)*94*(58+38)CM
-
Weight (KG):
-
190 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Keywords:
-
9060 Laser Engraving Cutting Machine
Products Description

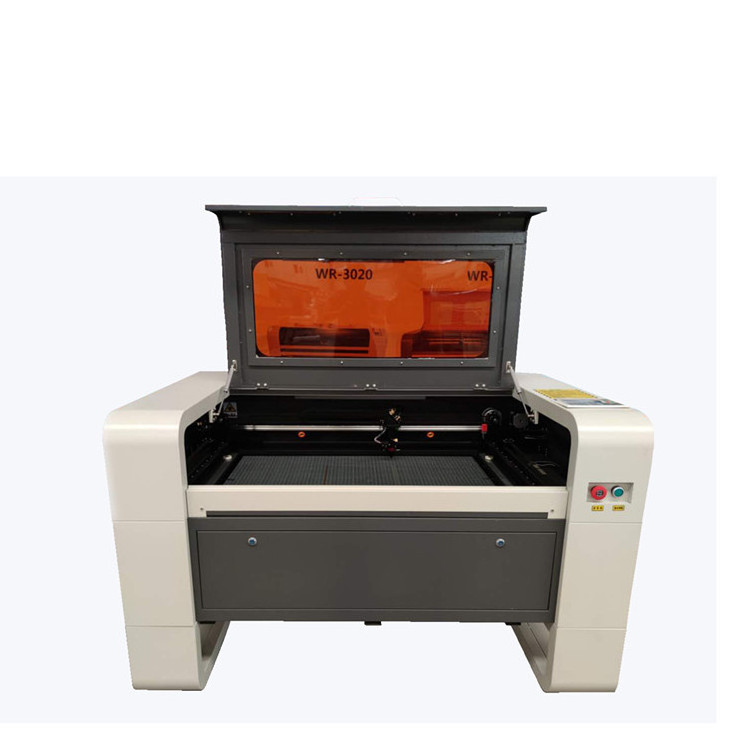

9060 Model 900x600mm CO2 Laser Engraving Cutting machine
Our products can be selected according to the customer's work needs.If you want more details,contact us please!
1. Equipped with Taiwan imported linear guide rail 2. Rapid cutting function for curved lines：any curved line can be cut
successively and rapidly.
3. High-performance motherboard: support U disk to read, with power continuous carving, slope carving,
color separation output and other functions
4. Design software of CAD、AI、Coreldraw are all supported for friendly human-computer
interface and demand of the industries on-the-spot. Applicable Materials：acrylic,double-color sheet,MDF,non-metal materials like
leather, cloth,rubber,wooden boards,bamboo products,organic glass,plastics,marble,jade,crystal,etc.
1. Equipped with Taiwan imported linear guide rail 2. Rapid cutting function for curved lines：any curved line can be cut
successively and rapidly.
3. High-performance motherboard: support U disk to read, with power continuous carving, slope carving,
color separation output and other functions
4. Design software of CAD、AI、Coreldraw are all supported for friendly human-computer
interface and demand of the industries on-the-spot. Applicable Materials：acrylic,double-color sheet,MDF,non-metal materials like
leather, cloth,rubber,wooden boards,bamboo products,organic glass,plastics,marble,jade,crystal,etc.
|
Model
|
WR-9060
|
|
Working area
|
900X600mm
|
|
Laser type
|
sealed CO2 glass laser tube
|
|
Laser power
|
60W/80W/100W/130W/150W
|
|
Engraving speed
|
0-30000mm/min
|
|
Cutting speed
|
0-3600mm/min
|
|
Cutting thickness
|
0-20mm (depends on materials)
|
|
Resolution rate
|
±0.05mm
|
|
Data transfer interface
|
USB2.0
|
|
Working voltage
|
220V±10% 50hz 110v±10% 60hz
|
|
Min shaping character
|
Character:2x2mm letter:1x1mm
|
|
Software
|
RdworksV8/CorelDraw/AutoCAD
|
|
Supported graphic formats
|
BMP PCX TGA TIF PLT CDR
|
|
Working temperature
|
0-45°C
|
|
Working humidity
|
5%-90%
|
|
Resolution ratio
|
<4500dpi
|
|
Operational parts
|
Rotary axis, water chiller 3000/5000/5200
|
|
Package size
|
173*125*80 cm
|
|
Weight
|
190kg
|
|
Package
|
Packing in export wooden cases
|
--- Import industrial laser head.
--- High load capacity
--- Simple to clean
--- To process hard materials like Acrylic, MDF, Wood etc.....
--- To process hard materials like Acrylic, MDF, Wood etc.....
--- Removable and washable, non-reflective, not easy to damage and deform
--- Prevent cutted small parts from falling
--- X and Y three imported linear guide rail.
--- High cutting speed and precision
--- Smoothly working
--- Smoothly working
--- Sealed CO2 laser tube.
--- Long working life and stable power
--- Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.
( optional brand, EFR, RECI, CDWJ, YONGLI, JOY)
--- Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.
( optional brand, EFR, RECI, CDWJ, YONGLI, JOY)
--- High operating accuracy,
--- high temperature resistance
--- bear the high temperature generated by high-speed operation
--- low noise.
--- bear the high temperature generated by high-speed operation
--- low noise.
Sample display
Optional Accessories
Our service
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage
